Vision 1624R, 2525 and 2550 Series 5 Installation Guide
2.5
Spindle Options
2.5.1
Engraving Head

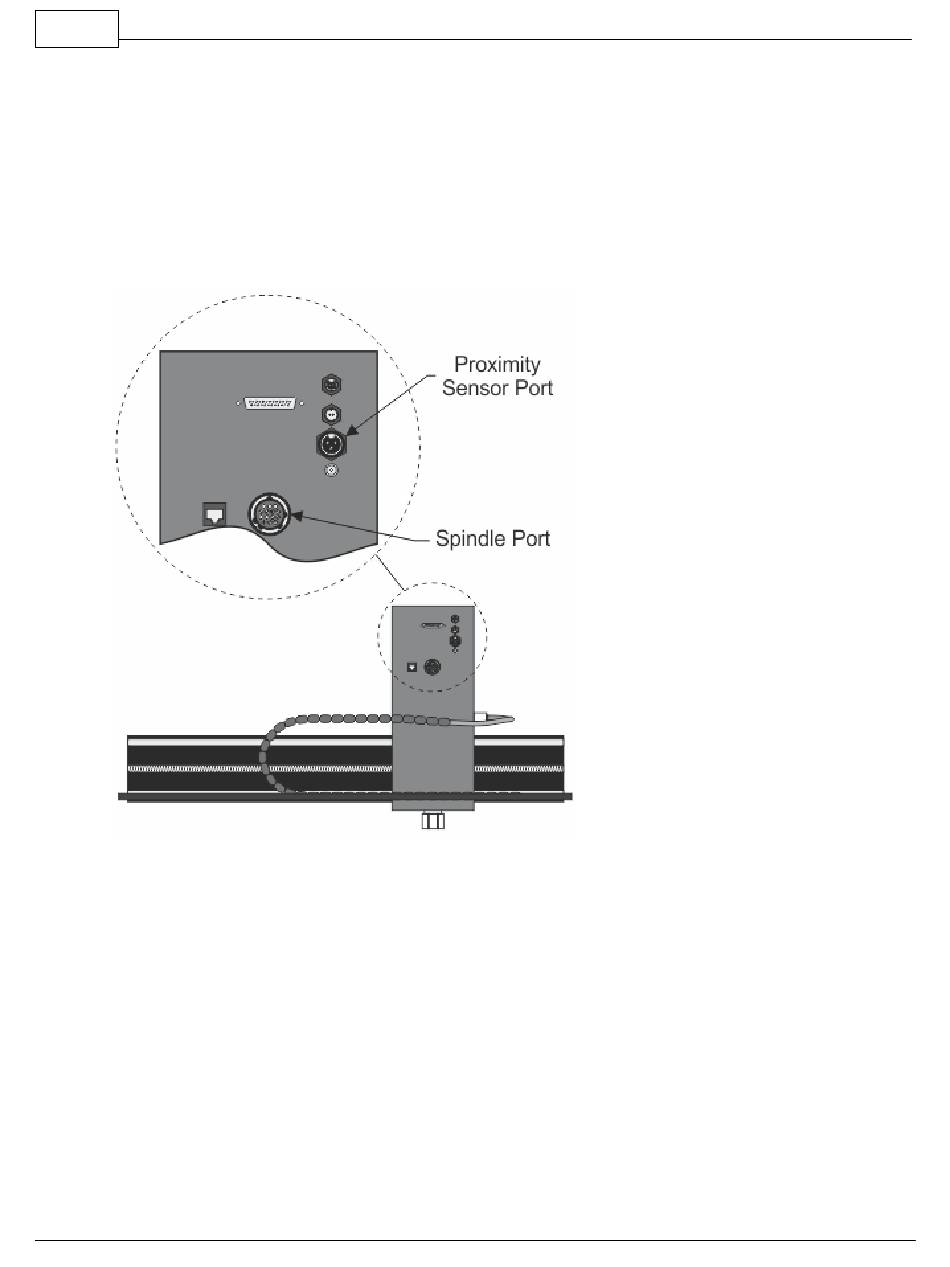

The Motor Plug connects to the Spindle Port and the Proximity Sensor Plug connects to the Proximity
Sensor Port on the back of the Carriage.
Carriage - rear view
