Machine Setup
29

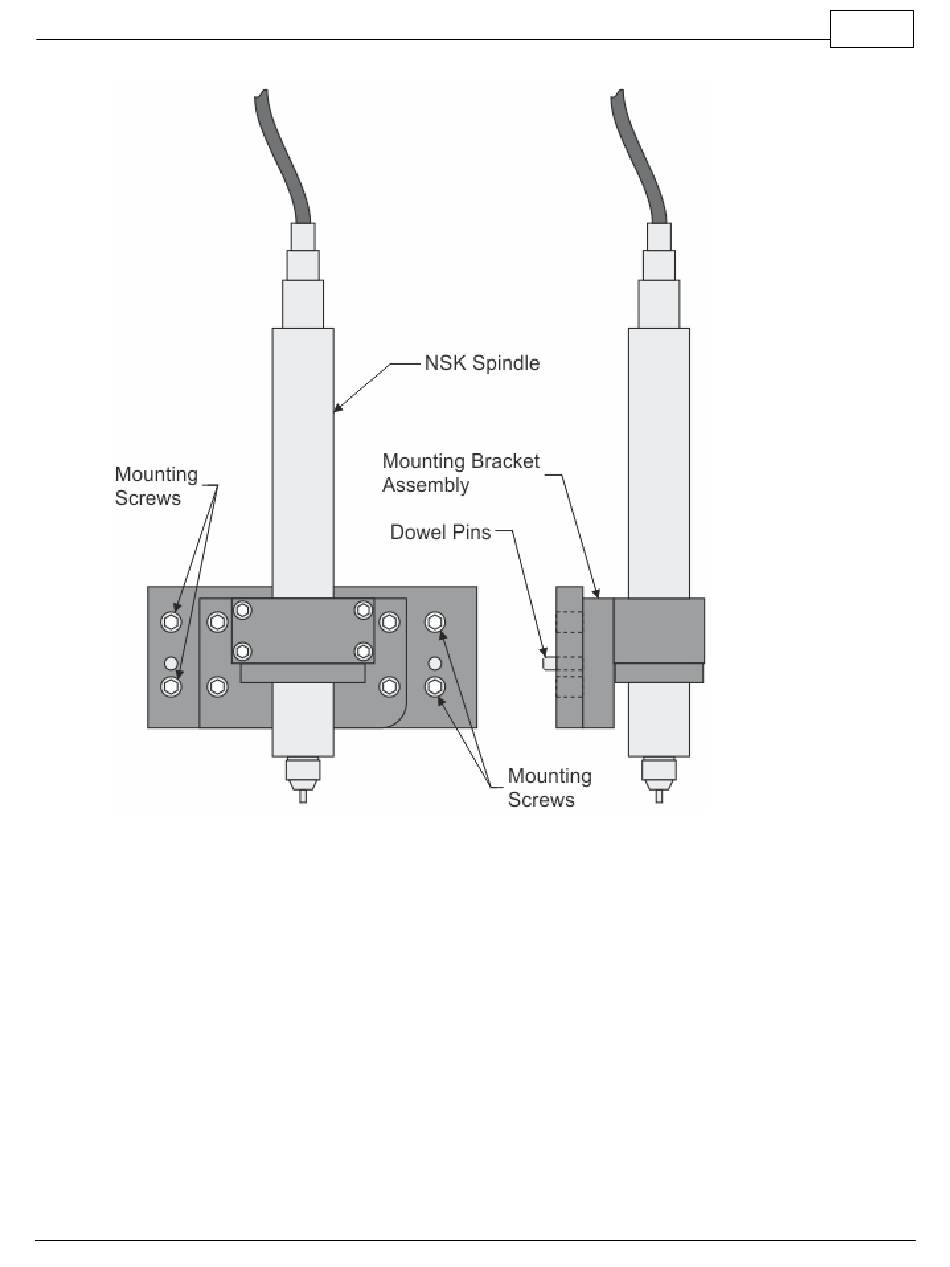

Electrical Connections
If the machine was ordered with the NSK Spindle option, an Analog Spindle port was installed on the
machine's controller. Connect the Analog Spindle Cable to this port on the controller and the other end to
the Analog Spindle Port on the NSK Power Supply Unit (The Analog Spindle Cable is identical to the
Table Cable used to connect the controller to the engraver or router's table. Be careful not to connect
the Table port on the controller to the Analog Spindle Port on the NSK Power Supply Unit).
Connect the Power Cable to a standard 110 VAC power outlet and to the NSK Power Supply Unit. The
cable assembly coming from the NSK Spindle has a connector to the spindle motor and an air hose. The
motor connector is plugged into the Motor port and the air hose is connected to the AIR OUT port on the
NSK Power Supply.
The NSK Spindle requires an external compressed air supply capable of 1 SCFM @ 40 PSI. The air
supply is connected via the Inlet Air Hose to the AIR IN port on the NSK Power Supply Unit.
NOTE: The Spindle Cable to the standard engraving motor will not be used in this configuration.
© 2020 Vision Engraving & Routing Systems
