Vision 1624R, 2525 and 2550 Series 5 Installation Guide
High Frequency Router Head Removal - continued

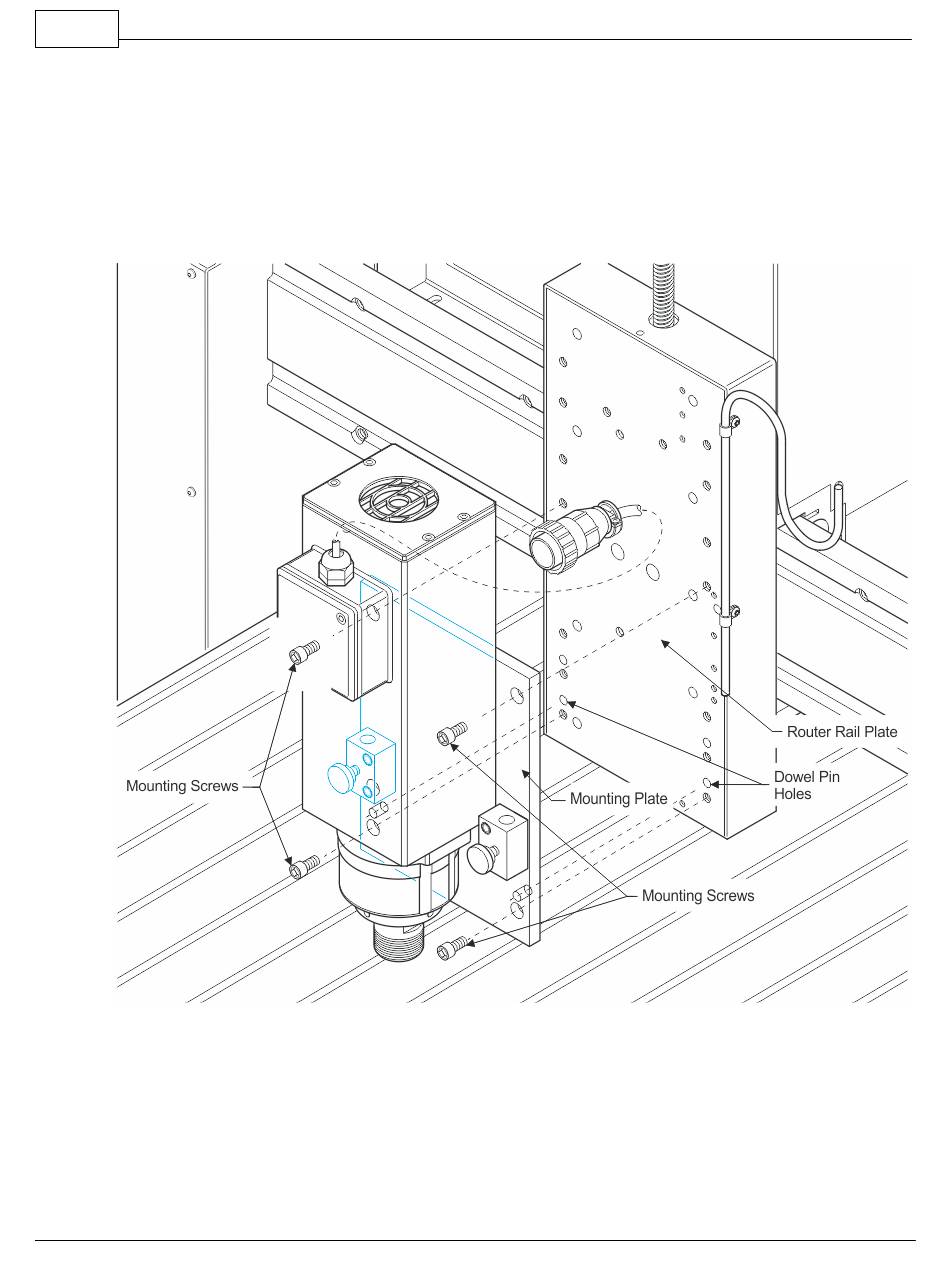

4. Loosen the four mounting screws and remove. The Router Head will be held in place on the Rail Plate
by the two Dowel Pins on the back of the Mounting Plate.
5. Using two hands, pull the Router Head away from the Rail Plate.
To Install the High Frequency Router Head, reverse this procedure.
2.5.3
NSK 50,000 RPM Spindle
The NSK Spindle mounts to the Router Rail Plate in the same location as other Router or Engraving
Head Assemblies. Two dowel pins are pressed into the Mounting Bracket Assembly and four mounting
screws secure the bracket to the rail plate.
