PROPER MOUNTING METHOD
1) Locate unit on solid flat horizontal or vertical surface.
2) Position unit no closer than 24 inches from any power source or machinery.

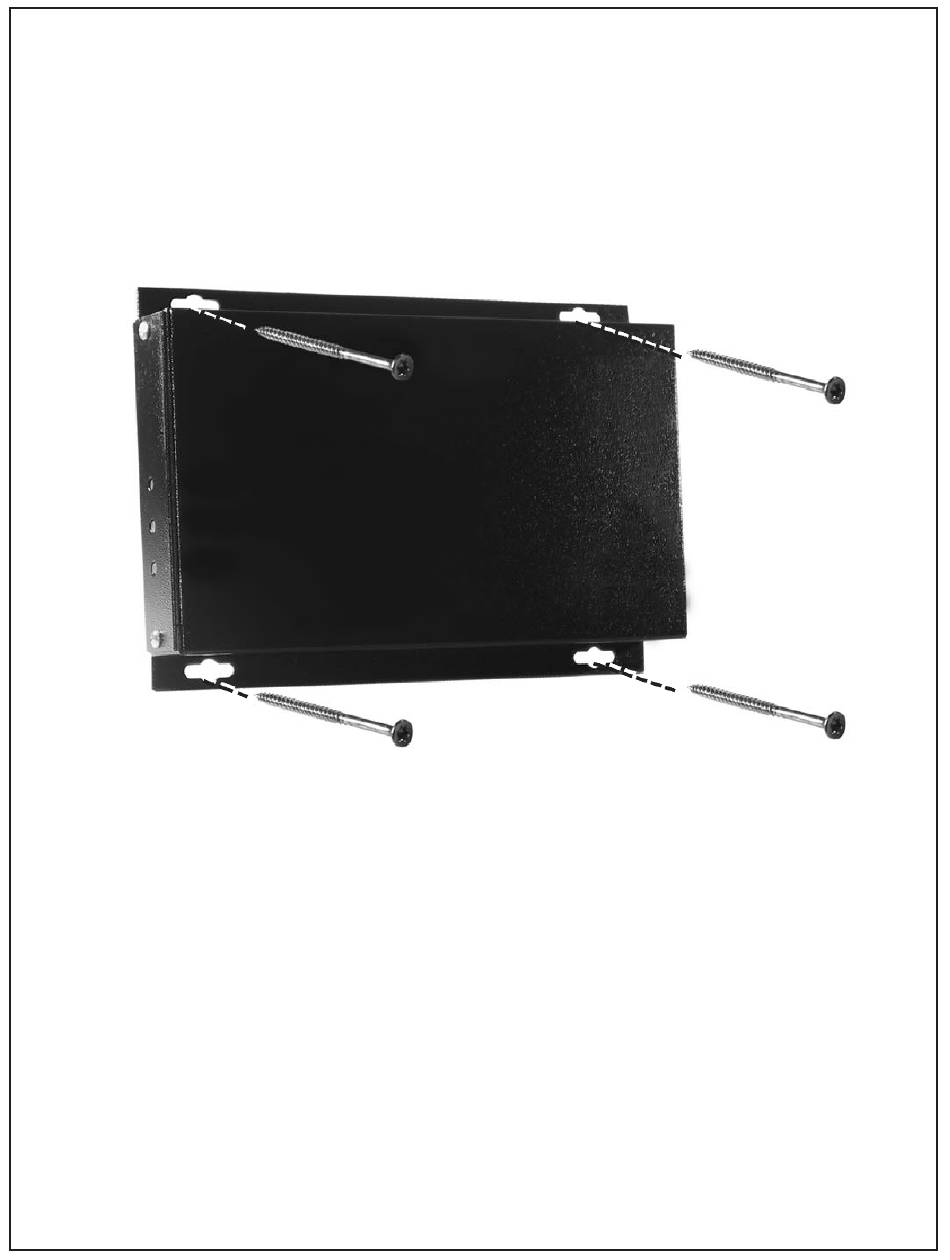

3) Securely mount unit using (4) four mounting screws (not provided).
4) Select the correct voltage requirements for your application, +12VDC or 12VAC.
+12VDC attach black w/white stripe wir e to pin 1 and black stripe to pin 2 (GND).
For 12VAC connect brown to pin 1, green to pin 2 and blue to pin 3 from adapter.
5) Plug power brick into approved 120v AC outlet.
6) Check power LED to insure device is properly powered, LED will illuminate green.
FOR THE TT/TR3000
