6. Plug-and-Play ports
7. Adjustment knob
8. LCD
9. Hub LEDs
TEACH-IN: Teach-in in progress or required
HOME: Door(s) closed
TRACKING: Door position / Detection zone tracking
75.5753.21 LZR-MICROSCAN T 20210628
Visit website for
available languages
of this document.
1
5
8
LZR-MICROSCAN T
Stand-Alone, Door-Mounted, Safety Sensor
System for Automatic Swing Doors

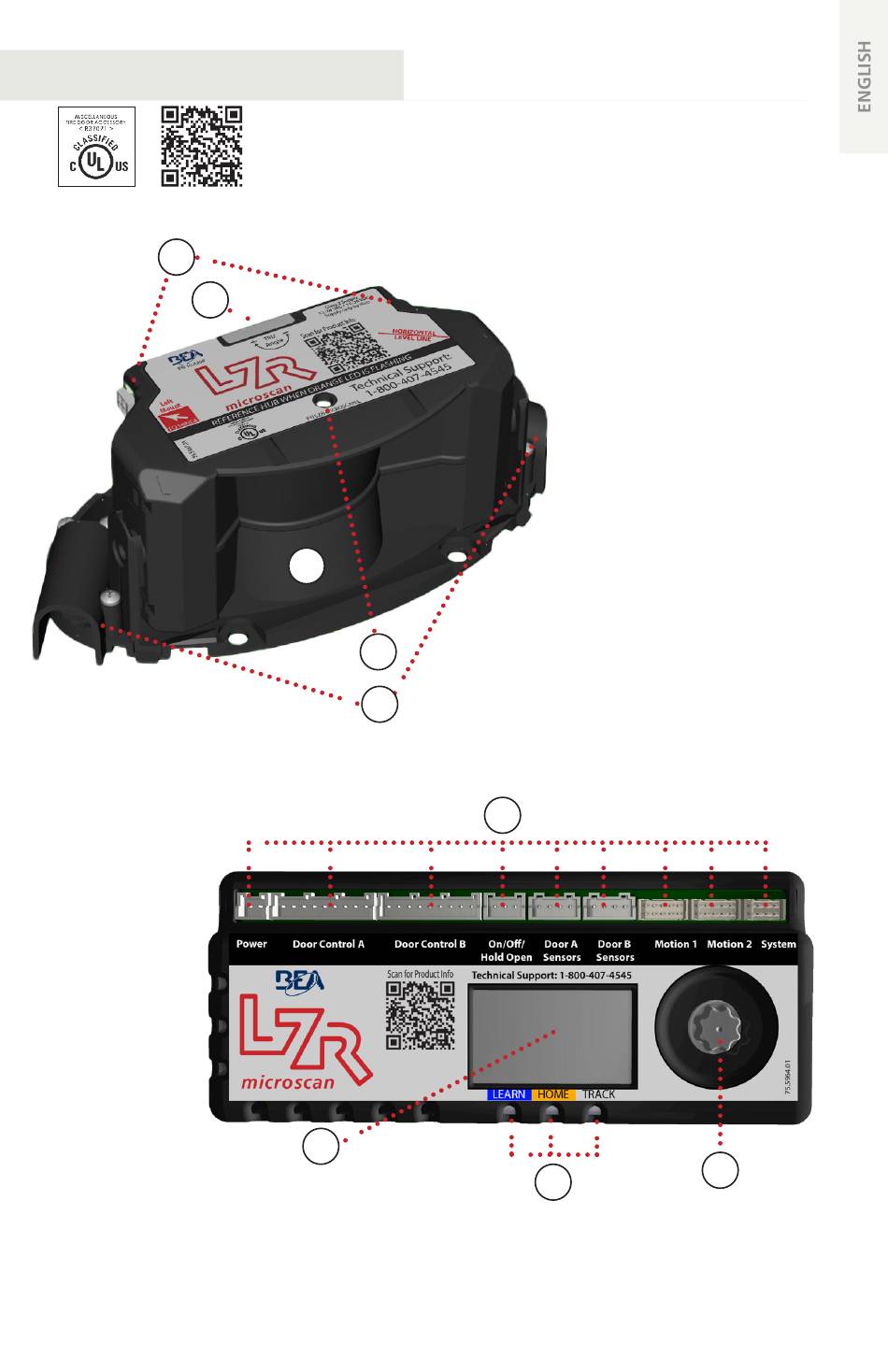

1. Tilt adjustment
2. Sensor connection ports
3. Sensor LED
3
4. End caps
4
5. Optical window
6
green = operational
red = in detection/monitoring
orange = error (reference hub LCD)
7
9
(US version)
Page 1 of 16
