BEA COLIBRI ONE Manual

Please keep for further use
Designed for color printing
Other use of the device is outside the intended purpose and cannot be
guaranteed by the manufacturer. The manufacturer cannot be held responsible
for incorrect installations or inappropriate adjustments of the sensor.

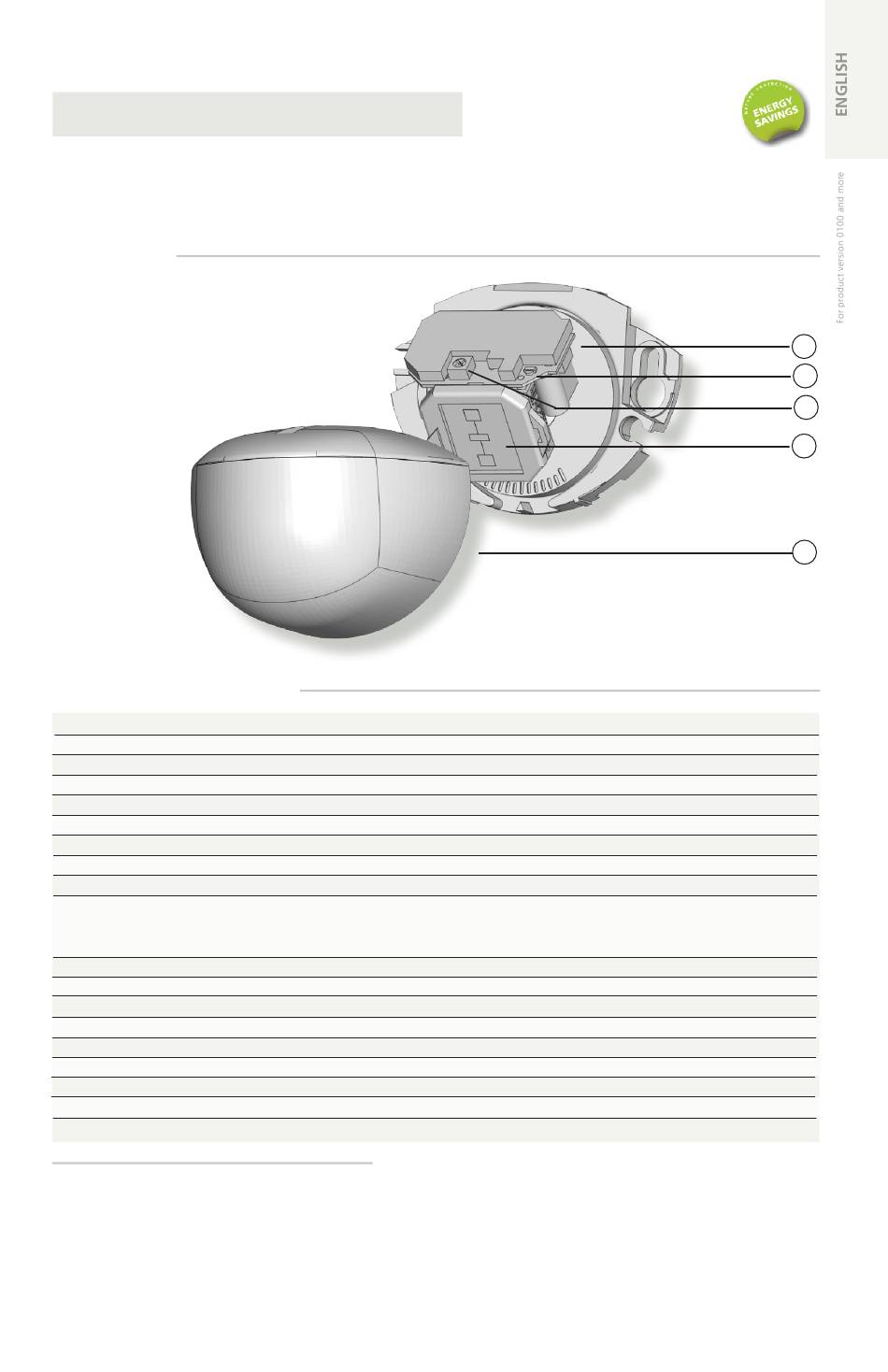

DESCRIPTION
1. main connector
2. LED
3. potentiometer for field size adjustment
4. radar antenna (wide field)
5. cover
TECHNICAL SPECIFICATIONS
Technology:
Transmitter frequency:
Transmitter radiated power:
Transmitter power density:
Detection mode:
Min. detection speed:
Supply voltage:
Mains frequency:
Max. power consumption:
Output:
Max. contact current:
Max. contact voltage:
Mounting height:
Degree of protection:
Temperature range:
Dimensions:
Tilt angles:
Material:
Weight:
Cable lenght:
Norm conformity:
Specifications are subject to changes without prior notice.
Measured in specific conditions
75.5825.02 COLIBRI ONE 20160106

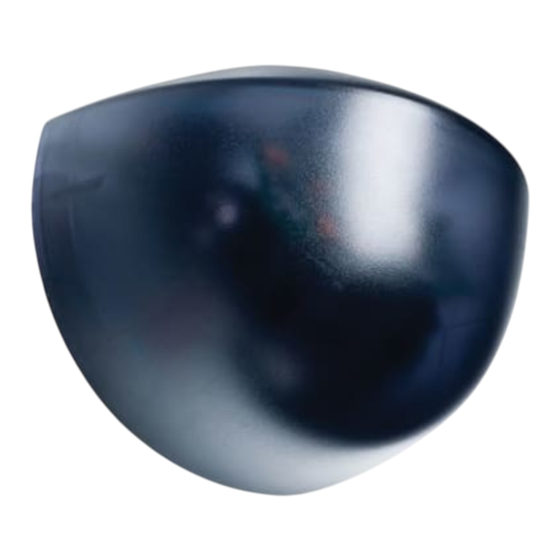

COLIBRI ONE
Unidirectional activation sensor*
*Not intended for pedestrian automatic doors
microwave doppler radar
24.150 GHz
< 20 dBm EIRP
< 5 mW/cm²
motion
2 in/s (measured in sensor axis)
12 V to 24 V DC +30% / -10%
50 to 60 Hz
< 2 W
solid-state-relay (free of potential change-over contact)
100 mA
35 V DC/ 24V AC
from 6 ft to 10 ft
IP54
from -4 °F to + 131 °F
3.15 in (W) x 2.36 in (H) x 2.17 in (D)
0° to 90° vertical; -30° to +30° lateral
ABS & polycarbonate
5 oz
8 ft
R&TTE 1999/5/EC; EMC 2004/108/EC
1
2
3
4
5
Page 1 of 4
