BEA VIO-ST User Manual

User's Guide for product version 0200 and higher
See product label for serial number
DESCRIPTION
1
2

TECHNICAL SPECIFICATIONS

Supply voltage:
Power consumption:
Mounting height:
Sensitivity of the test input:
Temperature range:
Degree of protection:
Noise:
Expected lifetime:
Norm conformity:
Detection mode:
Technology:
Angle:
Output:
Hold time output signal:
Response time on test request:

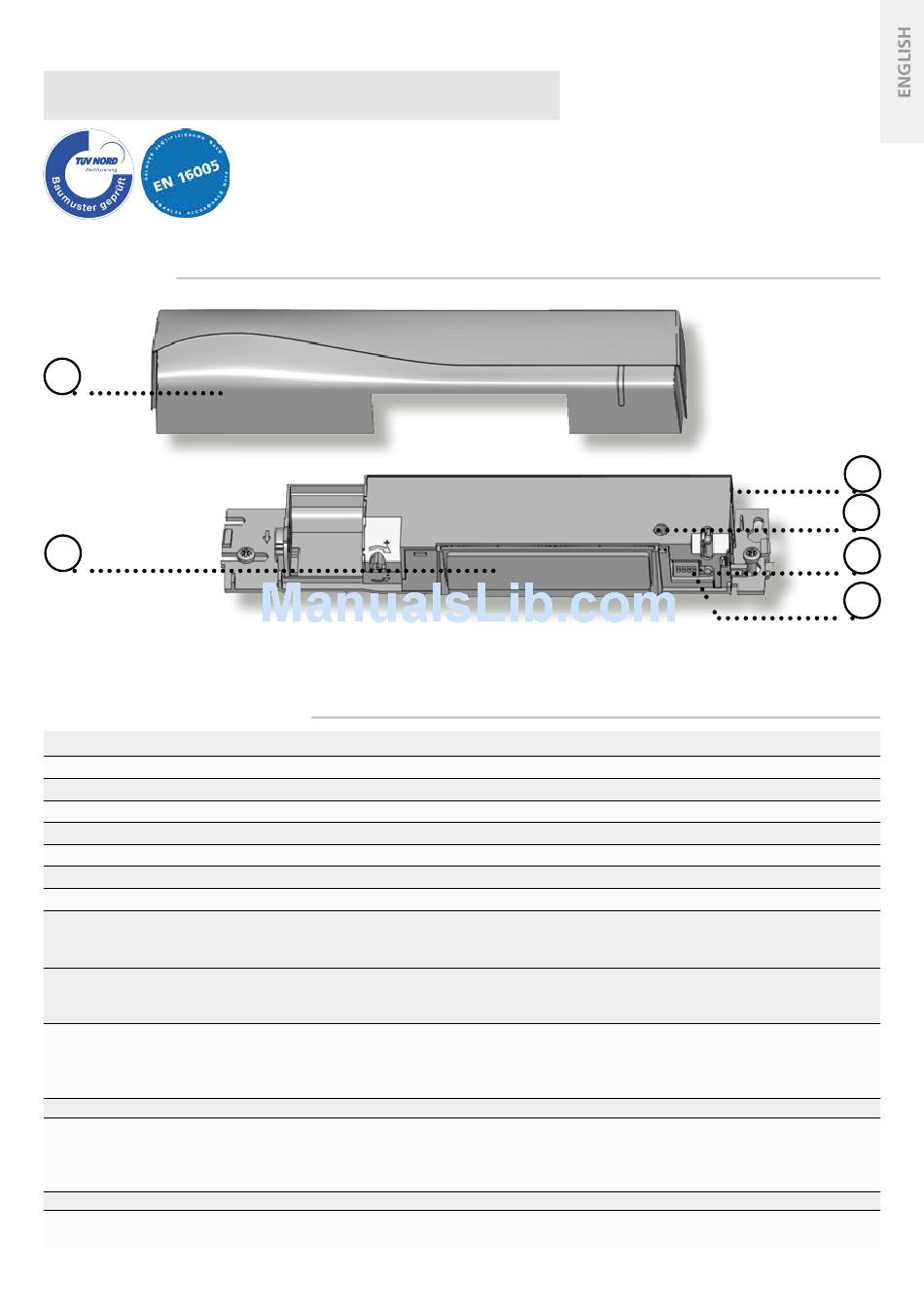

1. cover
2. IR-prism
(2 m)
3. main connector
12 V - 30 V DC -5%/+10%
< 1.6 W
1.8 m to 3 m
< 1 V : Log. L; > 10 V: Log. H (max. 30 V)
-25 °C to +55 °C
IP54
< 70 dB
20 years
EN 62061 SIL2; EN 61496-1 ESPE Type 2; EN 61000-6-2; EN 61000-6-3; EN 12978;
EN 50581; EN 16005 EN ISO 13849-1 Pl «c»
;
system monitors the sensor at least once per door cycle)
Presence
Typical response time: <256 ms
Max. presence time: 30 sec
Active infrared with background analysis
Spot diameter: 0.1 m (typ)
Number of spots: 24
Number of curtains: 2
From -4 ° to +4 ° (adjustable)
Solid-state-relay
(free of potential, free of polarity)
Max. contact current: 100 mA
Max. contact voltage: 42 V AC/DC
0.3 s to 1 s (not adjustable)
Typical: < 5 ms
Specifications are subject to changes without prior notice. All values measured in specific conditions.

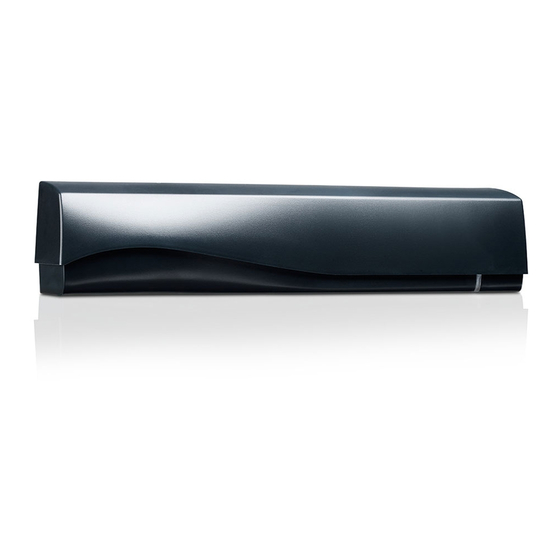

VIO-ST
Safety sensor
for automatic sliding doors
4. IR-angle adjustment
5. push button for setup or DIP-setting confirmation
6. DIP-switch
(to be operated from SELV compatible power supplies only)
CAT.2
(under the condition that the door control
3
4
5
6
