BEA IS40 Installation Manual

Please keep for further use
Designed for color printing
Other use of the device outside of its permitted purpose cannot be guaranteed
by the manufacturer.
The manufacturer cannot be held responsible for incorrect installations or
inappropriate adjustments of the sensor.

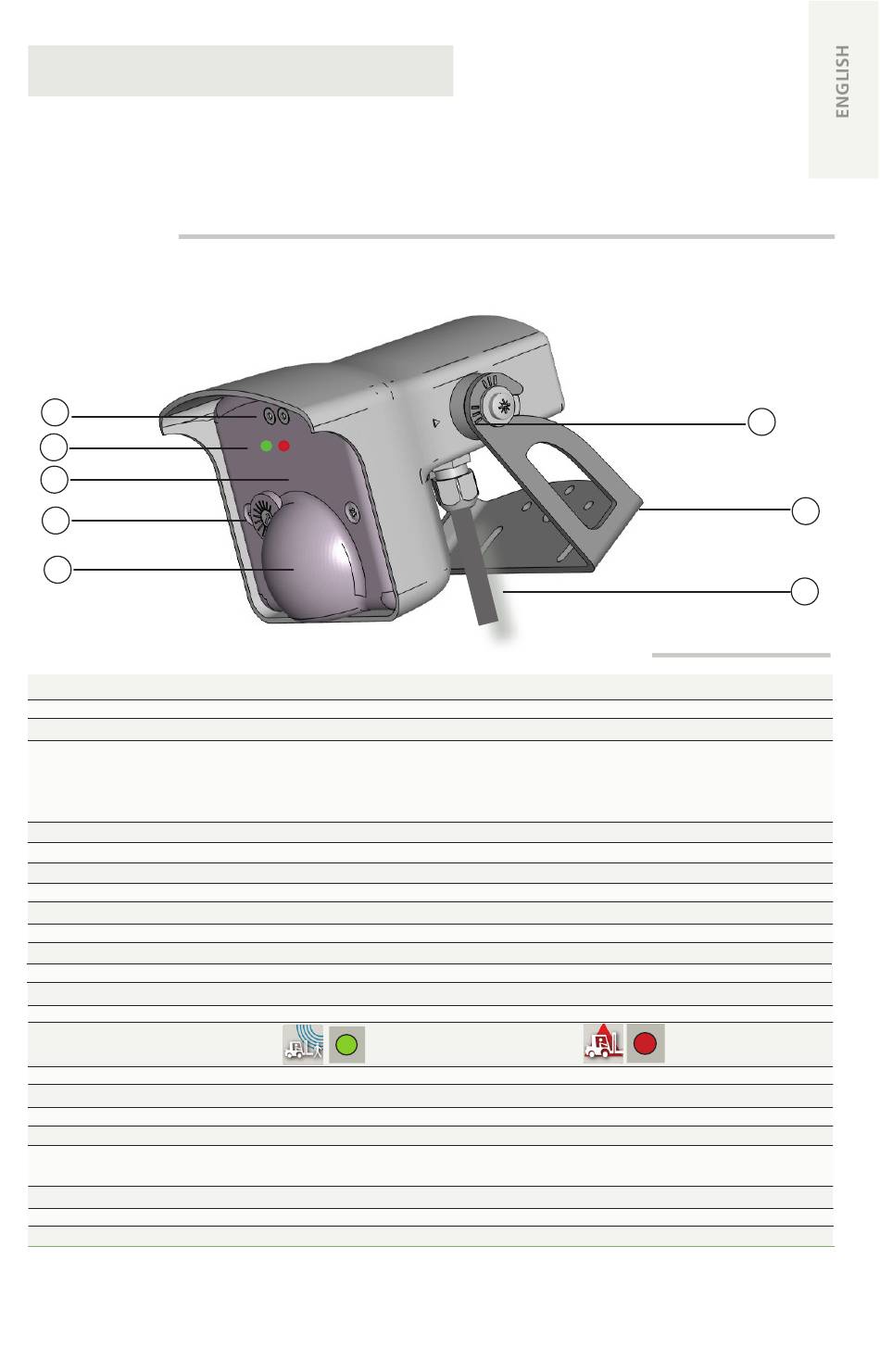

DESCRIPTION
1
2
3
4
5

TECHNICAL SPECIFICATIONS

Supply voltage:
Power consumption:
Mains frequency:
Output:
Max. contact voltage:
Max. contact current:
Max. switching power:
Mounting height:
Temperature range:
Humidity:
Degree of protection:
Dimensions:
Materials:
Weight:
Cable length:
Norm conformity:
Technology:
Transmitter frequency/wavelength:
Output holdtime:
Transmitter power density:
Detection mode:
Detection field:
Min. detection speed:
Reaction time:
Tilt angle:
Specifications are subject to changes without prior notice.
Measured in specific conditions
75.5695.07 IS40 IS40XL 20170313

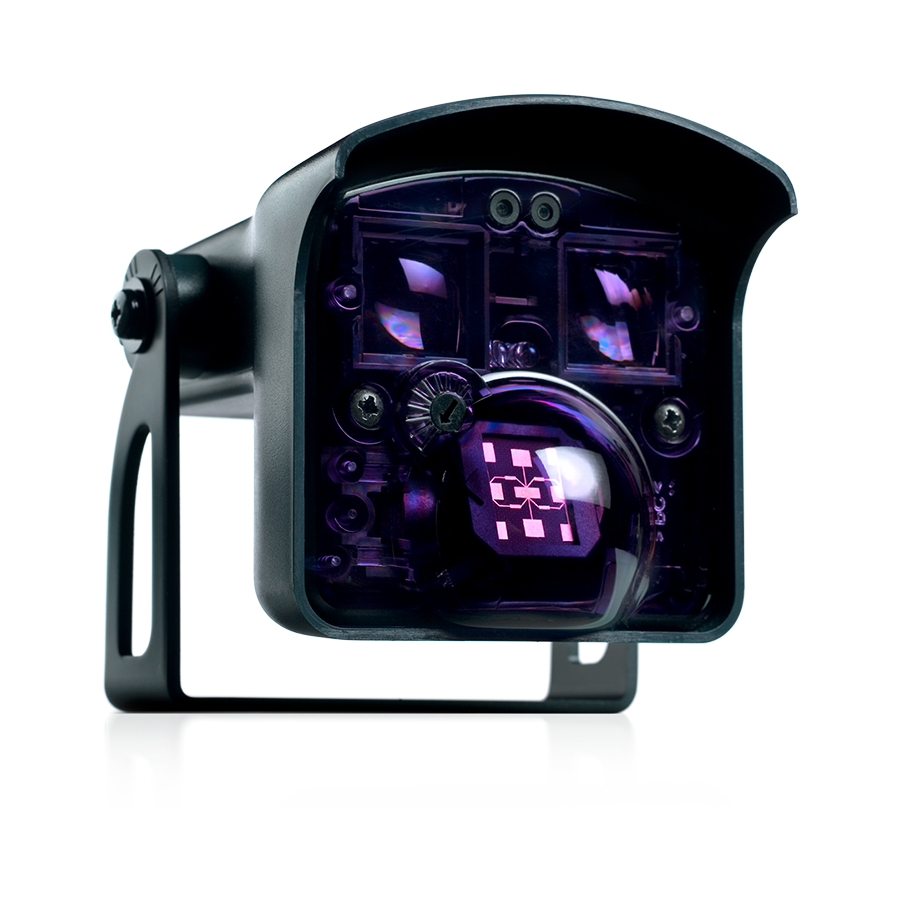

Motion and presense sensor for
automatic industrial doors
IS40: for normal to high mounting 8 ft - 16 ft
IS40 XL: for low mounting 6.5 ft - 11.5 ft
12V to 24V AC ±10%; 12V to 24V DC +10% / -3%
< 3.5 W
50 to 60 Hz
2 relays (free of potential change-over contact)
42 V AC/DC
1 A (resistive)
30 W (DC) / 48 VA (AC)
IS40: 8 ft - 16 ft; IS40 XL: 6.5ft - 11.5ft*
from -22 °F to + 140 °F
0 - 95% non condensing
IP65 / NEMA4
5 in (L) x 4 in (H) x 3.75 in (W)
ABS and polycarbonate
14 oz
32 ft / 9.7 m
R&TTE 1999/5/EC; EMC 2004/108/EC, R&TTE: 1999/5/EC
microwave doppler radar
24.150 GHz
0.5 s to 9 s
< 5 mW/cm²
motion
IS40:13ft x 16.5ft; IS40 XL:13ft x 6.5ft**
2 in/s
100 ms
-8° - 22° (relative to sensor front face)
* detertimes field size
** measured at 30°, field size 9, mounting height: 16 ft, XL: 11.5 ft
*** Zone detected with the Spotfinder, ie slightly larger than the effective
detection field
IS40 IS40 XL
/
1. push buttons
2. LED's
3. infrared detection (AIR)
4. radar angle
5. radar detection
6. sensor angle indicator
7. bracket
8. cable
active infrared (AIR)
875 nm
0.5 s
< 250 mW/m²
presence
IS40:10ft x 10ft; ***
IS40XL:7.5ft x 7.5 ft ***
0 in/s to activate detection
250 ms
15° - 45°
6
7
8
