BZB Gear BG-UHD-1616M User Manual

18gbps 16x16 hdmi matrix with arc function
Hide thumbs Also See for BG-UHD-1616M:
Table of Contents

Advertisement

Quick Links

Download this manual
BG-UHD-1616M
18Gbps 16x16 HDMI Matrix
with ARC Function

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-UHD-1616M and is the answer not in the manual?

Questions and answers

Related Manuals for BZB Gear BG-UHD-1616M

Summary of Contents for BZB Gear BG-UHD-1616M

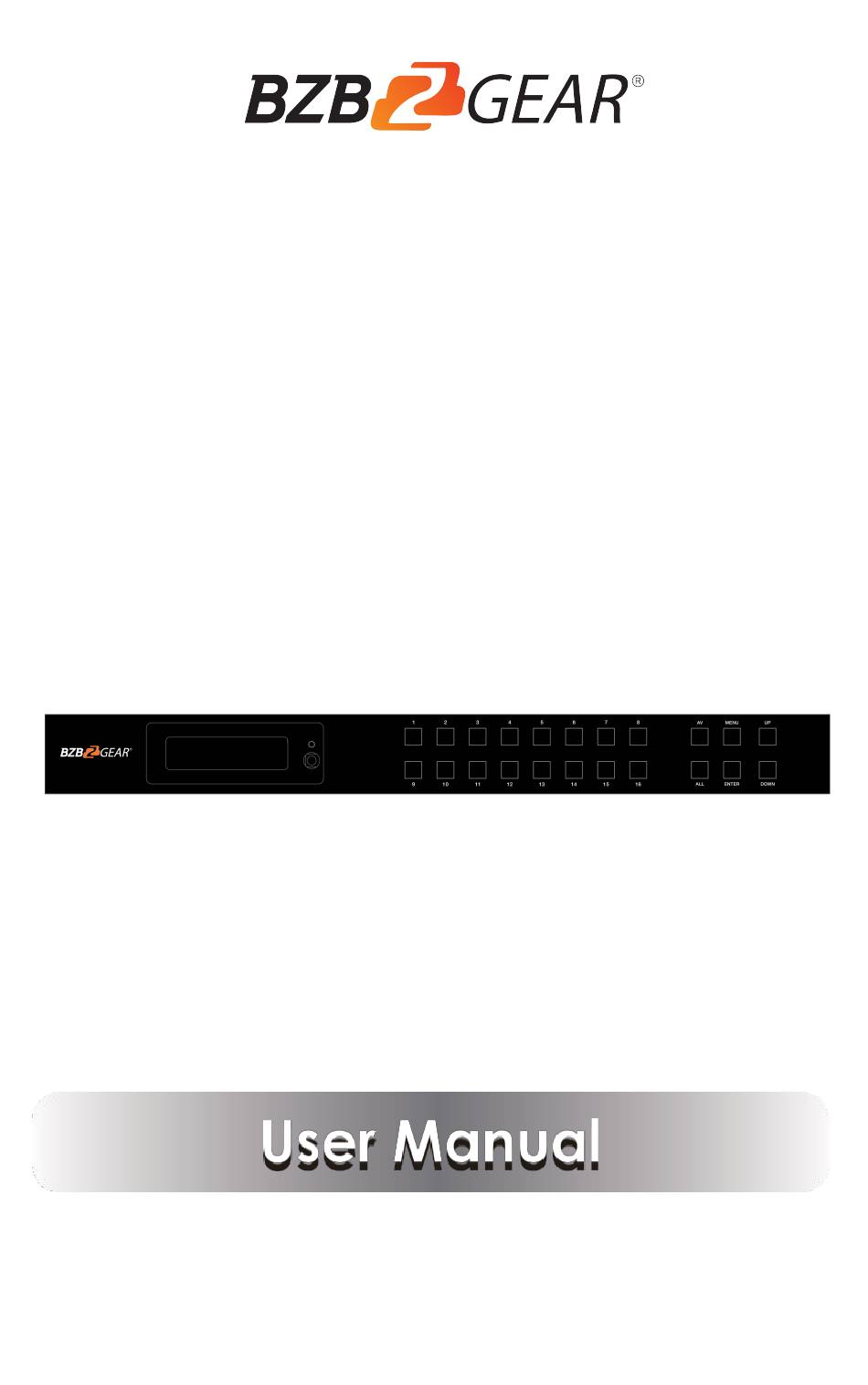

  • Page 1 BG-UHD-1616M 18Gbps 16x16 HDMI Matrix with ARC Function...
  • Page 2 Thank you for purchasing this product Surge protection device recommended...

  • Page 3: Package Contents

    1. Introduction BG-UHD-1616M with , and 2. Features ☆ HDMI 2.0b, HDCP 2.2/1.x and DVI 1.0 compliant ☆ Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports ☆ 18Gbps video bandwidth ☆ HDR, HDR10, HDR10+, Dolby Vision and HLG ☆...

  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.x Video Bandwidth 18Gbps Up to 4K2K@60Hz (4:4:4) Video Resolution Color Space RGB, YCbCr 4:4:4/4:2:2/4:2:0 Color Depth 8-bit, 10-bit, 12-bit HDMI Audio Formats LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, (Pass-through) Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X Coax Audio Formats...

  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions Front Panel Name Function Description Displays matrix switching status, input / output port, OLED screen EDID, Baud rate, and current IP Address. The LED will illuminate green when the unit is connected Power LED to the power supply, and red when the unit is on standby. Press input button (1~16) first, then press the “AV”...
  • Page 6 Rear Panel Name Function Description TCP/IP control port, connect to PC or router with an RJ45 TCP/IP port cable. Connect to a PC or control system by D-Sub 9-pin cable to RS-232 port transmit RS-232 command. AUDIO OUT Coaxial audio output port, connect to audio output device (1-16) such as audio amplifier via a coaxial cable.

  • Page 7: Edid Management

    7. EDID Management The BG-UHD-1616M has 21 factory defined EDID settings, 2 user-defined EDID modes and, 16 copy EDID modes. Select defined EDID mode, or copy EDID mode to input port through the front panel buttons, RS-232 control or WebGUI.
  • Page 8 The defined EDID settings list: EDID Mode EDID Description 1080p, Stereo Audio 2.0 1080p, Dolby/DTS 5.1 1080p, HD Audio 7.1 1080i, Stereo Audio 2.0 1080i, Dolby/DTS 5.1 1080i, HD Audio 7.1 3D, Stereo Audio 2.0 3D, Dolby/DTS 5.1 3D, HD Audio 7.1 4K2K30_444, Stereo Audio 2.0 4K2K30_444, Dolby/DTS 5.1 4K2K30_444, HD Audio 7.1...
  • Page 9 8. Web GUI User Guide The BG-UHD-1616M may be controlled by a WebGUI. The operation method is shown below: Step 1: Find the current IP Address. The default IP address is 192.168.1.100. Find the current Matrix IP address in two ways: 1: Find the IP address via the panel buttons.
  • Page 10 After entering the password, click the “LOGIN” button and the following Status page will displayear: ■ Status Page The Status page provides basic information about the model, installed firmware version, and the network settings of the device. ■ Video Page The following operations may be performed on the Video page: ①...
  • Page 11 ■ Input Page The following operations may be performed on the Input page: ① Inputs: HDMI Input channel of the device. ② Active: Indicates if the channel is connected to an input source. ③ Name: The input channel’s name. Modify it by entering t he corresponding name (max length: 12 characters) in the input box.
  • Page 12 ■ Output Page The following operations may be performed on the Output page: ① Outputs: Output channel of the device. ② Cable: Indicates the connection status of the output ports. When the output port is connected to the display, it shows green, otherwise, it shows yellow. ③...
  • Page 13 ■ Network Page Set the Default Network Click “Set Network Defaults”, and the prompt below will display: Click “OK” to search the IP Address again, as shown in the following figure: After searching has completed, it will switch to the login page, and the default network setting has been completed.
  • Page 14 Modify Username Click the “User” button, enter the correct old password, new password, and confirm After successfully modifying, the following prompt will display: password, then click “Save”. Note: Input rules for changing passwords: (1) The password cannot be empty. (2) New password cannot be the same as old password. (3) New password and confirm password must be the same.

  • Page 15: Rs-232 Control Command

    Note: After reset/reboot, it will switch to the login page. 9. RS-232 Control Command The BG-UHD-1616M supports RS-232 control. A serial cable with RS-232 male head and DB9 transfer USB male head is required. The RS-232 head of the serial cable is connected to the RS-232 control port with DB 9 at the rear of the Matrix, and the USB end of the serial cable is connected to a PC.
  • Page 16 Example Command Code Function Description Feedback Default Setting Get the unit all status: power, beep, lock, in/ out connection, video/ r status! r status! Get device current status audio crosspoint, edid, scaler, network status MCU BOOT: Vx.xx.xx r fw version! Get Firmware version r fw version! MCU APP: Vx.xx.xx...
  • Page 17 Example Command Code Function Description Feedback Default Setting Get hdmi output y port output hdmi output 1 set to r hdmi y scaler! r hdmi 1 scaler ! mode y=0~16(0=all) bypass mode EDID Setting Set input x EDID from default EDID z, x=0~16 (0=all),z=1~39 1, 1080p,Stereo Audio 2.0...
  • Page 18 Example Command Code Function Description Feedback Default Setting CEC Setting set input x power on by CEC, s cec in x on! s cec in 1 on! input 1 power on x=0~16(0=all input) set input x power off by CEC, s cec in x off! s cec in 1 off! input 1 power off...
  • Page 19 Example Function Description Feedback Command Code Default Setting Network Setting IP Mode: Static IP: 192.168.1.72 Subnet Mask: 255.255.255.0 r ipconfig! Get the Current IP Configuration r ipconfig! Gateway: 192.168.1.1 TCP/IP port=8000 Telnet port=10 Mac address: 00:1C:91:03:80:01 Mac address: r mac addr! Get network MAC address r mac addr! 00:1C:91:03:80:01...

  • Page 20: Application Example

    Example Command Code Function Description Feedback Default Setting Network reboot… IP Mode: Static IP: 192.168.1.72 Subnet Mask: 255.255.255.0 s net reboot! Reboot network modules s network reboot! Gateway: 192.168.1.1 TCP/IP port=8000 Telnet port=10 Mac address: 00:1C:91:03:80:01 10. Application Example - 18 / 20...

  • Page 21: Tech Support

    11. Tech Support Before contacting tech support, we may have answered your question already! Visit our BZBGEAR support page (bzbgear.com/support) for valuable information on our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) consisting of tutorials, quick start guides, and step-by-step troubleshooting instructions.
  • Page 22 Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual and live streaming industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.
