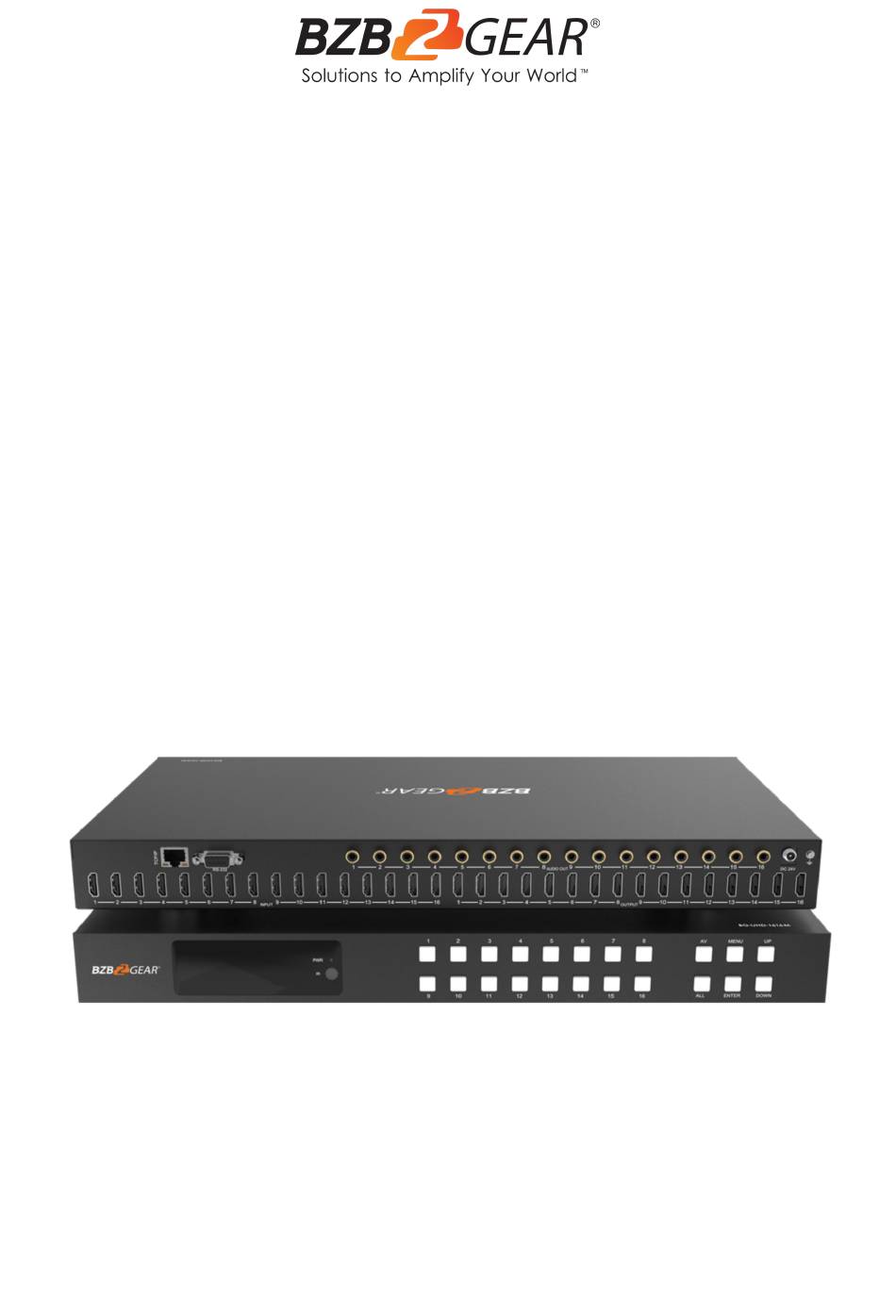

- Page 1 BG-UHD-1616M Crestron Driver User Manual...
- Page 2 BZBGEAR BG-UHD-1616M Crestron Driver User Manual · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-1616M Crestron Driver User Manual Table of Contents Statement Safety Precaution Introduction Installation Inputs Outputs Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BG-UHD-1616M Crestron Driver User Manual Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
BZBGEAR BG-UHD-1616M Crestron Driver User Manual Introduction This driver has been designed to provide control of the BZBGEAR BG-UHD-1616M 16x16 HDMI Matrix Switcher via RS 232 and TCP/IP. Installation ● You will need to copy all of the files in the folder to your project directory to allow Simpl Windows to recognize the driver module. -
Page 6: Inputs
BZBGEAR BG-UHD-1616M Crestron Driver User Manual Inputs The module has the following commands available as inputs: Command Type Description GetSystemStatus Digital Signal to get the connected devices current status. Reboot Digital Signal used to reset the connected device. PowerOn Digital Signal used to turn on the connected device. -
Page 7: Outputs
BZBGEAR BG-UHD-1616M Crestron Driver User Manual HDMI_Scaler_4K->1080P Digital Signal used to set the connected device HDMI output scaler to downscale “4K->1080P” mode according to the Output_Port. HDMI_Scaler_Auto Digital Signal used to set the connected device HDMI output scaler to “auto” mode according to the Output_Port. - Page 8 BZBGEAR BG-UHD-1616M Crestron Driver User Manual FB_Input_Port Analog Signal used to indicate the currently controlled input port of the device (range of X is 1-16). FB_Output_Port Analog Signal used to indicate the currently controlled output port of the device (range of X is 0-16).
-
Page 9: Tech Support
BZBGEAR BG-UHD-1616M Crestron Driver User Manual Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 10: Warranty
BZBGEAR BG-UHD-1616M Crestron Driver User Manual Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. -
Page 11: Mission Statement
BZBGEAR BG-UHD-1616M Crestron Driver User Manual Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. -
Page 12: Copyright
BZBGEAR BG-UHD-1616M Crestron Driver User Manual Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
