- Page 1 PAC 5800 X OPERATING MANUAL LOCAL AIR CONDITIONER...
-
Page 2: Table Of Contents
• Check accessories and connection parts for possible damage prior to every use of the device. Do not use any defective devices or device parts. Operating manual – local air conditioner PAC 5800 X... - Page 3 • Any unauthorised modifications, such as alterations or structural changes to the device, are forbidden. • Any operation other than as described in this manual is prohibited. Non-observance renders all claims for liability and guarantee null and void. Operating manual – local air conditioner PAC 5800 X...
-
Page 4: Information About The Device

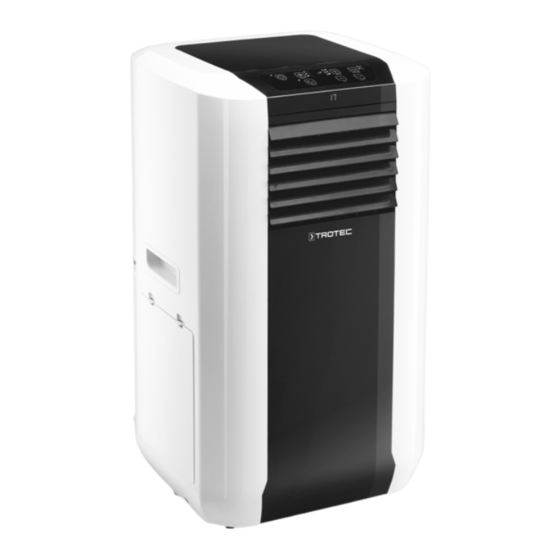

Condensate outlet with sealing cap and rubber stopper Cable storage compartment Exhaust air hose connection Air inlet with air filter and activated carbon filter Air outlet with adjustable ventilation flaps Segment display Control panel Operating manual – local air conditioner PAC 5800 X... -
Page 5: Transport And Storage
• Before restarting the device, check the condition of the power cable. If there are doubts as to the sound condition, contact the customer service. • Set the device up in an upright and stable position. Operating manual – local air conditioner PAC 5800 X... - Page 6 • If required, you can insert the supplied activated carbon filter in the air filter for the air inlet (10). • Make sure that the air filters are installed before switching the device on. Operating manual – local air conditioner PAC 5800 X...
- Page 7 • The dimensions of the exhaust air hose were especially made to fit the device. Do not replace or extend the hose, for it could cause a malfunction. ≥ 30 cm Operating manual – local air conditioner PAC 5800 X...
-
Page 8: Operation
Indication of the number of hours acoustic signal is emitted. during timer programming Indication of the error code, see chapter Errors and faults Timer LED Illuminated when the timer function is active Operating manual – local air conditioner PAC 5800 X... - Page 9 9. Insert the mains plug into a properly secured mains ð The compressor possibly switches on and the LED for socket. compressor operation (22) lights up. 10. Switch the device on. Operating manual – local air conditioner PAC 5800 X...
- Page 10 • If the device is disconnected from the power supply, all settings for automatic switch-on are deleted. • Manually switching the device on disables the automatic switch-on function. • If you select 0 hours, the timer will be off. Operating manual – local air conditioner PAC 5800 X...
- Page 11 2. Turn the sealing cap counter-clockwise to unscrew it from the water tank (4), and fill up to max. 3 l of water into the tank. Afterwards screw the sealing cap back onto the water tank (4) by turning the cap clockwise. Operating manual – local air conditioner PAC 5800 X...
- Page 12 For infrared transmission to the transmitter/receiver device Display Display of current room temperature Display of target temperature while setting it Display of the selected operating mode : automatic operation : cooling : dehumidification : ventilation Operating manual – local air conditioner PAC 5800 X...
-
Page 13: Errors And Faults
Error code Cause Remedy Error at the room Disconnect the device temperature sensor briefly from the mains. Should the error still be displayed after the restart, please contact the customer service. Operating manual – local air conditioner PAC 5800 X... -
Page 14: Maintenance
12. Date: ......Signature: ......Signature: ......Signature: ......Signature: ......13. Date: ......14. Date: ......15. Date: ......16. Date: ......Signature: ......Signature: ......Signature: ......Signature: ......Operating manual – local air conditioner PAC 5800 X... - Page 15 Refrigerant circuit • The entire refrigerant circuit is a maintenance-free, hermetically sealed system and may only be maintained or repaired by specialist companies for cooling and air- conditioning or by Trotec. Operating manual – local air conditioner PAC 5800 X...
- Page 16 2. Remove sealing cap and rubber stopper from the If you do not intend to use the device for a considerable time: condensate outlet. • Store the device according to the Storage chapter. 3. Drain the condensate. Operating manual – local air conditioner PAC 5800 X...
-
Page 17: Technical Annex
European Parliament and of the Council of 6 September 2006 front (D): 50 cm on batteries and accumulators. Please dispose of batteries and Weight 41.5 kg accumulators according to the relevant legal requirements. Operating manual – local air conditioner PAC 5800 X... - Page 18 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
