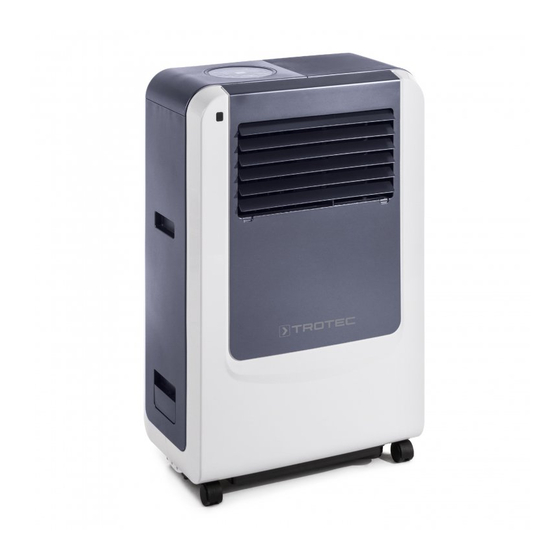

- Page 1 PAC 3500 X OPERATING MANUAL AIR CONDITIONER...
-
Page 3: Table Of Contents
Warns of a hazard resulting from electric voltage which can lead to injuries. Caution! Warns of a hazard which can lead to damage to property. The current version of the operating manual can be found at: www.trotec.de Operating Manual – Air Conditioner PAC 3500 X... -
Page 4: Information About The Device
(10) carrying handle (11) cable storage compartment (12) air filter (air inlet) (13) air filter (air inlet) (14) exhaust air outlet (15) air filter (air inlet) (16) drain knob / drain hole Operating Manual – Air Conditioner PAC 3500 X... -
Page 5: Technical Data
– temperature of dry bulb (room temperature) = 35°C – temperature of wet bulb (relative humidity) = 24°C • Test condition for the data on the nameplate is as per safety regulation: EN 60335-2-40 Operating Manual – Air Conditioner PAC 3500 X... -
Page 6: Transport And Storage
When the device is not being used, observe the following storage conditions: • dry, • protected from dust and direct sunlight, • with a plastic cover to protect it from invasive dust, if necessary. Operating Manual – Air Conditioner PAC 3500 X... - Page 7 4. Connect the exhaust air hose to the air outlet at the rear of the device. 5. Please follow these steps in reverse order to store the exhaust air hose. Do not forget to retighten the screw! Operating Manual – Air Conditioner PAC 3500 X...
- Page 8 • Check the air filter for dirt and clean it, if required. Also see chapter Maintenance. • Cut a hole with a diameter of 152 mm into the wall or window. Operating Manual – Air Conditioner PAC 3500 X...
- Page 9 – The cooling system switches off automatically when the ambient temperature falls below the set one. The fan, however, keeps running at the set level. If the ambient temperature rises above the selected level, the cooling will switch on again. Operating Manual – Air Conditioner PAC 3500 X...
-
Page 10: Control Panel
Timer indicator light Ionizer/TiO2 indicator light only applies to models with ionizer/TiO2 function High fan speed indicator light Medium fan speed indicator light Low fan speed indicator light Sleep indicator light Operating Manual – Air Conditioner PAC 3500 X... - Page 11 – Consequently, if you set the timer to say 2, the device will automatically start to work after 2 hours. Operating Manual – Air Conditioner PAC 3500 X...
- Page 12 Self-diagnosis • This device is equipped with a self-diagnosis function. • In case of a fault E1 or E2 will be indicated on the display. ® • In such an event please contact the TROTEC customer service. Remote control All settings of the device can also be made using the remote control included in the scope of delivery.
-
Page 13: Errors And Faults
• Check the proper fit of the exhaust air hose. In case of kinks, bends or blockage in the hose, exhaust air cannot be discharged. Clear the way for the exhaust air. Operating Manual – Air Conditioner PAC 3500 X... -
Page 14: Maintenance
9. Date: .......... 10. Date:........11. Date: ........12. Date: ........Signature:........Signature: ........Signature:........Signature: ........13. Date: ........14. Date:........15. Date: ........16. Date: ........Signature:........Signature: ........Signature:........Signature: ........Operating Manual – Air Conditioner PAC 3500 X... - Page 15 4. Put the air filter back in. Refrigerant circuit • The entire refrigerant circuit is a maintenance-free, hermetically sealed system and may only be maintained or repaired by specialist companies for cooling and ® air-conditioning or by TROTEC Operating Manual – Air Conditioner PAC 3500 X...
- Page 16 Before reinserting the air filter, ensure that it is dry and is not damaged! Read the chapter Maintenance intervals and replace the air filter in due time! Operating Manual – Air Conditioner PAC 3500 X...
-
Page 17: Disposal
Directive compatibility. 2002/96/EC of the European Parliament and Council of 27th Herewith, we declare that the PAC 3500 X was developed, January 2003 concerning old electrical and electronic equipment. constructed and produced in compliance with the named EC At the end of its life, please dispose of this instrument in a manner directives. - Page 20 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info @ trotec.com www.trotec.com...
