Summary of Contents for Trotec PAC 2610 S

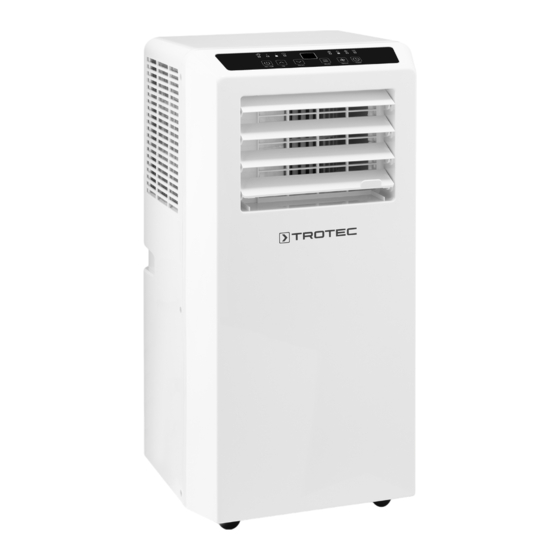

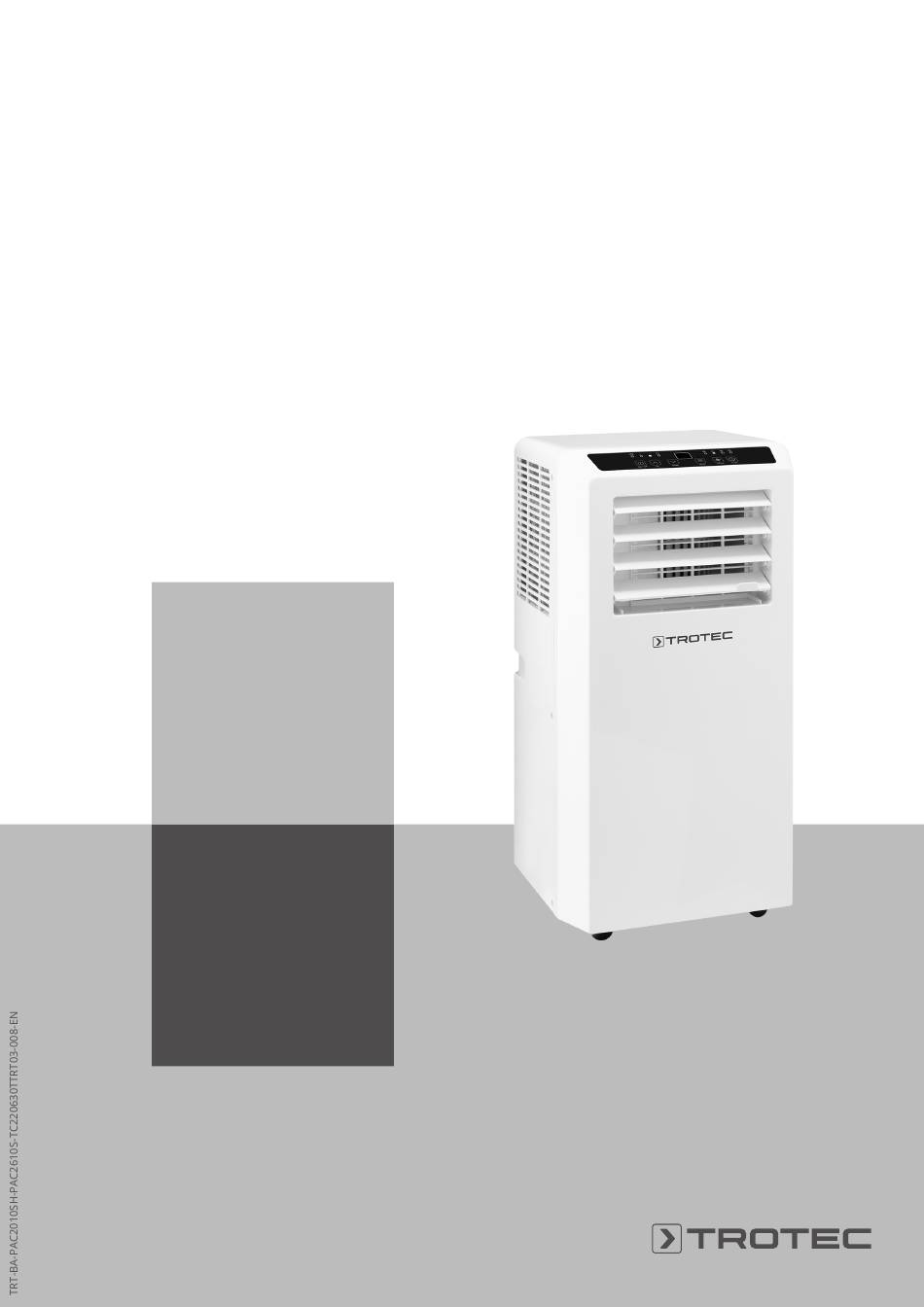

  • Page 1 PAC 2010 SH / PAC 2610 S INSTRUCTIONS LOCAL AIR CONDITIONER...
  • Page 2: Table Of Contents

    • Do not expose the device to directly squirting water. instructions must be observed. • Never insert any objects or limbs into the device. • Do not cover the device during operation. • Do not sit on the device. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 3 • Never charge batteries that cannot be recharged. • Different types of batteries and new and used batteries must not be used together. • Insert the batteries into the battery compartment according to the correct polarity. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 4 • The entire refrigerant circuit is a maintenance-free, hermetically sealed system and may only be maintained or repaired by specialist companies for cooling and air- conditioning or by Trotec. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 5 A corresponding repair manual is available from the manufacturer upon request. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 6: Information About The Device

    The device is not a toy and does not belong in the hands of children. Warning Risk of suffocation! Do not leave the packaging lying around. Children may use it as a dangerous toy. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 7: Transport And Storage

    • Store the device in a dry location and protected from frost Air inlet and heat. Condensate outlet with rubber stopper • Store the device in an upright position where it is protected Remote control from dust and direct sunlight. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 8: Assembly And Start-Up

    3. Fully unwind the power cable. Make sure that the power connection free. cable is not damaged and that you do not damage it during • Make sure that no curtains or other objects interfere with unwinding. the air flow. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 9 Without the air filter, the inside of the device will be heavily contaminated. This could reduce the performance and result in damage to the device. • Make sure that the air filter is installed before switching the device on. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 10 • The dimensions of the exhaust air hose were especially made to fit the device. Do not replace or extend the hose. This could cause a malfunction of the device. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 11: Operation

    20 On / Off button Switching the device on or off Remote control All settings of the device can also be made using the remote control included in the scope of delivery. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 12 ð The heating LED (14) will be illuminated to indicate cooling mode. heating mode. Info After switch-off, the fan keeps running for a brief period during which no settings can be made. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 13 4. In order to delete the setting, press the Timer button (15) again. ð The timer LED (12) goes out. Notes regarding automatic switch-off: • Pressing the On / Off button (20) deactivates the automatic switch-off function. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 14: Errors And Faults

    Water tank Empty the water tank. Should the Condensate is leaking: full in heating error still be displayed, please • Check the device for leaks. mode contact the customer service. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 15: Maintenance

    12. Date: ........Signature: ........ Signature: ........ Signature: ........ Signature: ........ 13. Date: ........14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ........ Signature: ........ Signature: ........ local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 16 Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 17 3. Allow the filters to dry completely. Do not put any wet filters into the device! 4. Reinsert the air filters into the device. 2. Drain the condensate. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 18 • Reconnect the device to the mains. If you do not intend to use the device for a considerable time: • Store the device according to the Transport and storage chapter. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 19: Technical Annex

    30 cm sides (C): 30 cm 30 cm front (D): 30 cm 30 cm Weight 21 kg 23.5 kg Remote control batteries Type LR03 / AAA – 1.5 V Type LR03 / AAA – 1.5 V (2 pcs.) (2 pcs.) local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 20 Circuit diagram PAC 2010 SH local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 21 Circuit diagram PAC 2610 S local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 22 Overview and list of spare parts Note: The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual. local air conditioner PAC 2010 SH / PAC 2610 S...
  • Page 23: Disposal

    Have the refrigerant (propane) disposed of appropriately and according to the national regulations by a company with the relevant certification (European Waste Catalogue 160504). local air conditioner PAC 2010 SH / PAC 2610 S...
