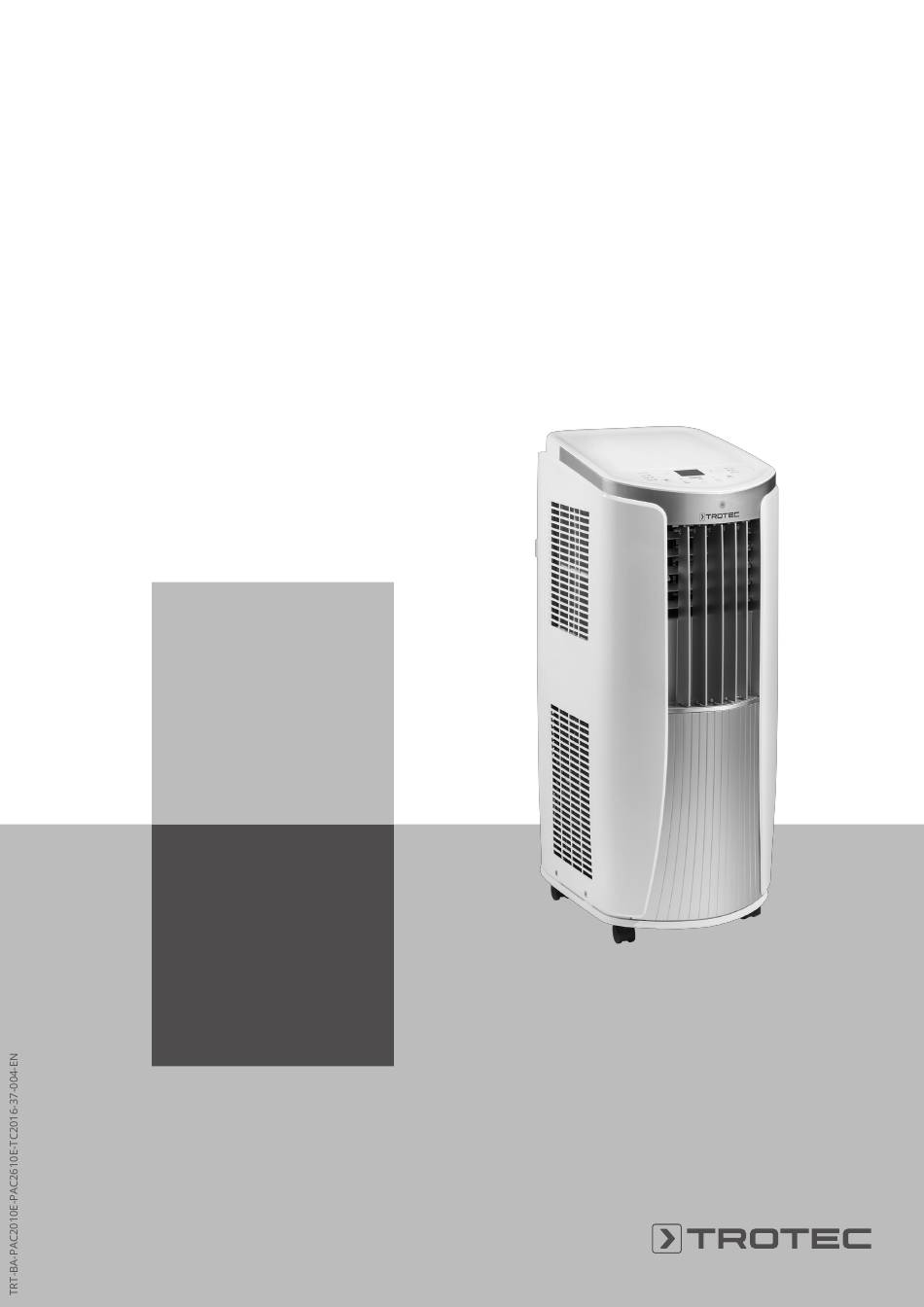

- Page 1 PAC 2010 E / PAC 2610 E OPERATING MANUAL LOCAL AIR CONDITIONER...
-
Page 2: Table Of Contents
Information marked with this symbol indicates that the • Do not cover or transport the device during operation. operating manual must be observed. • Do not sit on the device. local air conditioner PAC 2010 E / PAC 2610 E... - Page 3 Trotec. Intended use Only use the device for cooling, ventilating and dehumidifying indoor air whilst adhering to the technical data. local air conditioner PAC 2010 E / PAC 2610 E...
- Page 4 PAC 2610 E Toute utilisation incorrecte ou non conforme entraîne L’EXTINCTION DE LA GARANTIE ! local air conditioner PAC 2010 E / PAC 2610 E...
-
Page 5: Information About The Device
2. In an emergency, disconnect the device from the mains feed-in: Hold onto the mains plug while pulling the power cable out of the mains socket. 3. Do not reconnect a defective device to the mains. local air conditioner PAC 2010 E / PAC 2610 E... -
Page 6: Transport And Storage
Wait 6 hours before switching the device back on! Acting contrary might lead to compressor damage and a malfunctioning device. If so, any warranty claims will be voided. local air conditioner PAC 2010 E / PAC 2610 E... -
Page 7: Assembly And Installation
1. Open the cardboard box and take the device out. 2. Completely remove the packaging. 3. Fully unwind the power cable. Make sure that the power cable is not damaged and that you do not damage it during unwinding. local air conditioner PAC 2010 E / PAC 2610 E... - Page 8 The condensation drain hose serves as drip protection and, if required, for discharging remaining condensate. ü The device is switched off. ü The device is disconnected from the mains. 1. Remove the rubber cap from the condensate outlet. local air conditioner PAC 2010 E / PAC 2610 E...
- Page 9 Without an air filter the inside of the device will be heavily contaminated, which could reduce the dehumidification performance and result in damage to the device. • Make sure that the air filters are installed before switching the device on. local air conditioner PAC 2010 E / PAC 2610 E...
- Page 10 4. Insert the hose adapter with exhaust air hose into the air conditioner's exhaust air hose connection. The side labelled TOP must face upwards. local air conditioner PAC 2010 E / PAC 2610 E...
- Page 11 • The dimensions of the exhaust air hose were especially made to fit the device. Do not replace or extend the hose, for it could cause a malfunction. local air conditioner PAC 2010 E / PAC 2610 E...
-
Page 12: Operation
ð The fan stage LED (23) indicates the desired fan stage. 0.5 hours (0.5 h to 10 h) or in increments of 1 hour (11 h to 24 h) On/Off button Power button: For switching the device on and off local air conditioner PAC 2010 E / PAC 2610 E... - Page 13 The timer can be programmed in increments of 0.5 hours (0.5 h to 10 h) or in increments of 1 hour (11 h to 24 h). Note Do not leave the operating device unattended in a freely accessible room with an activated timer. local air conditioner PAC 2010 E / PAC 2610 E...
- Page 14 The temperature unit can only be changed in standby mode. Please proceed as follows to change the temperature unit: 1. Press the minus (32) and MODE (26) buttons simultaneously. ð The displayed temperature is converted to the other unit. local air conditioner PAC 2010 E / PAC 2610 E...
- Page 15 ð The fan continues to run at low speed for a while. Then the fan switches off as well. 4. You can deactivate the self-cleaning function / internal drying at any time by pressing the X-FAN button (28) again. local air conditioner PAC 2010 E / PAC 2610 E...
-
Page 16: Errors And Faults
Condensate is leaking: • Check the device for leaks. Please contact the customer service. If necessary, bring the device to a specialist company for cooling and air-conditioning or to Trotec for repair. local air conditioner PAC 2010 E / PAC 2610 E... - Page 17 Should the error still be displayed, please contact the customer service. Condensation tank Discharge condensate full (manual draining) according to the Maintenance chapter. local air conditioner PAC 2010 E / PAC 2610 E...
-
Page 18: Maintenance
12. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... 13. Date: ......... 14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... local air conditioner PAC 2010 E / PAC 2610 E... - Page 19 Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth. local air conditioner PAC 2010 E / PAC 2610 E...
- Page 20 If the filters are heavily contaminated, clean them with warm water mixed with a neutral cleaning agent. 3. Allow the filters to dry completely. Do not put any wet filters into the device! local air conditioner PAC 2010 E / PAC 2610 E...
- Page 21 If you do not intend to use the device for a considerable time: towards the drain. • Store the device according to the Storage chapter. local air conditioner PAC 2010 E / PAC 2610 E...
-
Page 22: Technical Annex
PAC 2010 E / PAC 2610 E... - Page 23 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
