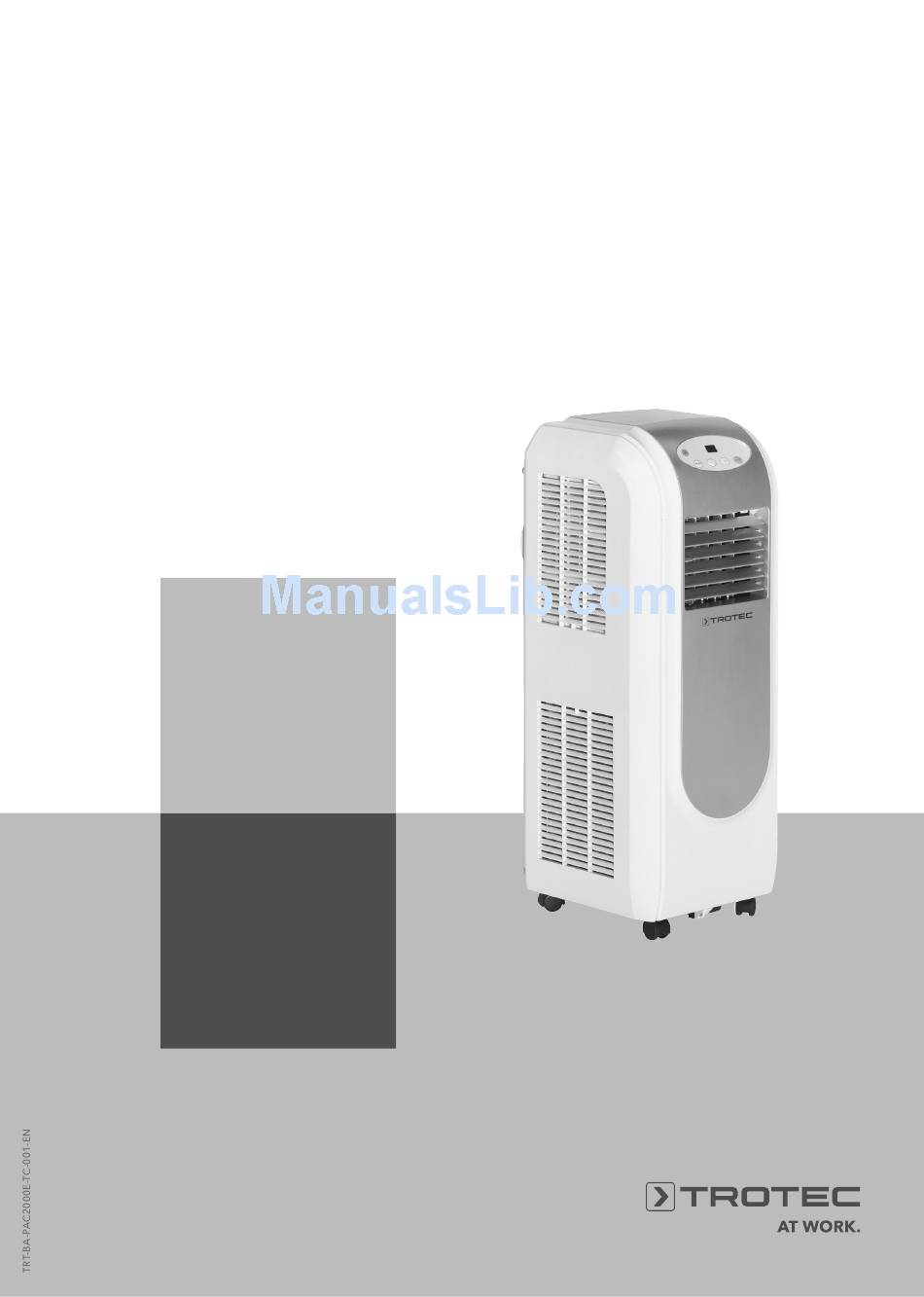

- Page 1 PAC 2000 E OPERATING MANUAL PORTABLE AIR CONDITIONER...
- Page 3 Maintenance ................9 The scope of delivery may vary from product images. This Technical annex..............10 document was created with all due care. Trotec accepts no liability whatsoever for possible mistakes or omissions. Notes regarding the operating manual © Trotec...
- Page 4 Improper use Do not place the portable air conditioner PAC 2000 E on moist or wet ground. Do not use the device outdoors. Do not place any objects, e.g. clothing, on the device.
-
Page 5: Information About The Device
Lower air inlet Hose connection for drip protection Exhaust air hose connection Upper air inlet with air filter B Mains power cable with holding fixture Compartment for remote control Remote control Operating Manual – Portable Air Conditioner PAC 2000 E... - Page 6 1. Connect the individual hose components until their tight fit is ensured. 2. Put the adapter (13) from above onto the exhaust air connection (7) at the device. – The adapter (13) snaps into place. Operating Manual – Portable Air Conditioner PAC 2000 E...
- Page 7 3. Attach the sealed condensation hose to the condensate outlet (see fig. C). 4. Affix the condensation hose by means of the hose clip and snap it into the retaining clip (see fig. C). Operating Manual – Portable Air Conditioner PAC 2000 E...
- Page 8 3. Select the desired operation mode by pressing the MODE button (23). Setting the operating mode • Press the MODE button (23) to switch between the operating modes. – COOLING (COOL) – DEHUMDIFICATION (DRY) – VENTILATION (FAN) Operating Manual – Portable Air Conditioner PAC 2000 E...
- Page 9 Flashes during timer setting. 41 Temperature/ Indicates the target temperature or the hour indication select number of hours in timer operation. 42 Operating mode indication Indicates the selected operating mode. (MODE) Operating Manual – Portable Air Conditioner PAC 2000 E...
- Page 10 • Have an electrical inspection carried out by Trotec. Your device still does not operate correctly after these checks? Bring the device to a specialist company for cooling and air-conditioning or to Trotec for repair. Operating Manual – Portable Air Conditioner PAC 2000 E...
- Page 11 Cleaning the housing Clean the device with a soft, damp and lint-free cloth. Ensure that no moisture enters the housing. Do not use abrasive cleaners. Operating Manual – Portable Air Conditioner PAC 2000 E...
-
Page 12: Technical Data
24 kg Dimensions (width x height x depth) 300 x 807 x 375 mm Minimum distance to walls or other objects 30 cm Sound pressure level max. 54 dB (A) Wiring diagram Operating Manual – Portable Air Conditioner PAC 2000 E... - Page 13 Exploded assembly drawing Note! The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual. Operating Manual – Portable Air Conditioner PAC 2000 E...
- Page 14 Manufacturer: Trotec GmbH & Co. KG Grebbener Straße 7 D-52525 Heinsberg Phone: +49 2452 962-400 Fax: +49 2452 962-200 E-mail: info@trotec.de Heinsberg, 08 November 2014 Managing Director: Detlef von der Lieck Operating Manual – Portable Air Conditioner PAC 2000 E...
- Page 16 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info @ trotec.com www.trotec.com...
- Page 17 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info @ trotec.com www.trotec.com...
