- Page 1 PAC 2010 SH OPERATING MANUAL LOCAL AIR CONDITIONER...
-
Page 2: Table Of Contents
• Check accessories and connection parts for possible Follow the manual damage prior to every use of the device. Do not use any Information marked with this symbol indicates that the defective devices or device parts. operating manual must be observed. local air conditioner PAC 2010 SH... - Page 3 Non-observance renders all claims for liability • Please note that the refrigerant is odourless. and guarantee null and void. • Only install the device in compliance with the national installation regulations. • Observe the national gas regulations. local air conditioner PAC 2010 SH...
- Page 4 2. In an emergency, disconnect the device from the mains feed-in: Hold onto the mains plug while pulling the power cable out of the mains socket. 3. Do not reconnect a defective device to the mains. local air conditioner PAC 2010 SH...
-
Page 5: Information About The Device

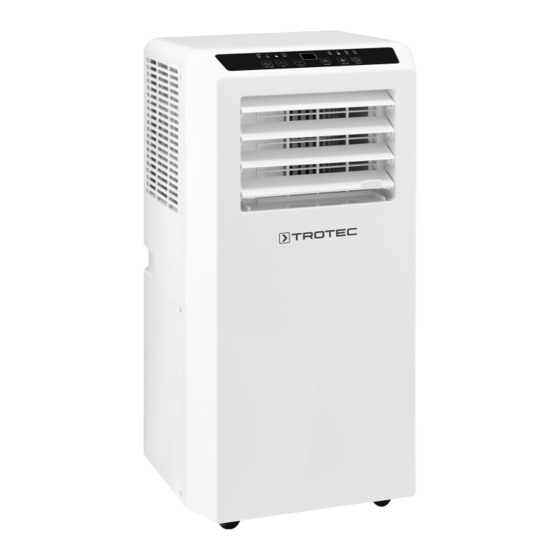

Due to its compact dimensions it can be easily transported and Wheels used in all interior spaces. Air inlet with air filter Device depiction Exhaust air hose connection Air inlet Condensate outlet with rubber stopper Remote control local air conditioner PAC 2010 SH... -
Page 6: Transport And Storage
• Before restarting the device, check the condition of the power cable. If there are doubts as to the sound condition, contact the customer service. • Only position the device in rooms where potentially leaking refrigerant cannot accumulate. local air conditioner PAC 2010 SH... - Page 7 For this purpose, we recommend using a window seal (optional). • Install the exhaust air hose inclined with the air direction. • The connected hose must not contain any source of ignition. local air conditioner PAC 2010 SH...
- Page 8 Adjust the horizontal ventilation flaps to the desired position. ≥ 30 cm ≤ 120 cm Connecting the power cable • Insert the mains plug into a properly secured mains socket. local air conditioner PAC 2010 SH...
-
Page 9: Operation
Switching the timer functions on and ð The fan speed LED (11) for the desired fan stage will be illuminated. ð The cooling LED (14) will be illuminated to indicate 16 Speed button Setting the fan speed cooling mode. local air conditioner PAC 2010 SH... - Page 10 After switch-off, the fan keeps running for a brief ð The timer LED (12) goes out. period during which no settings can be made. Notes regarding automatic switch-off: • Pressing the On / Off button (20) deactivates the automatic switch-off function. local air conditioner PAC 2010 SH...
-
Page 11: Errors And Faults
Maintenance). If the inside of the device is dirty, have it specialist company or by Trotec. cleaned by a specialist company for cooling and air-conditioning or by Trotec. local air conditioner PAC 2010 SH... - Page 12 Should the error still be displayed after the restart, please contact the customer service. Condensation tray Empty the condensation tray. full Should the error still be displayed, please contact the customer service. local air conditioner PAC 2010 SH...
-
Page 13: Maintenance
11. Date: ........12. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... 13. Date: ......... 14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... local air conditioner PAC 2010 SH... - Page 14 Trotec. If the filters are heavily contaminated, clean them with warm water mixed with a neutral cleaning agent. 3. Allow the filters to dry completely. Do not put any wet filters into the device! local air conditioner PAC 2010 SH...
- Page 15 If so, any warranty claims will be voided. • Reconnect the device to the mains. If you do not intend to use the device for a considerable time: • Store the device according to the Storage chapter. local air conditioner PAC 2010 SH...
-
Page 16: Technical Annex
Minimum distance to walls and other objects: top (A): 30 cm rear (B): 30 cm sides (C): 30 cm front (D): 30 cm Weight 19 kg Remote control batteries Type LR03 / AAA – 1.5 V (2 pcs.) local air conditioner PAC 2010 SH... - Page 17 Circuit diagram local air conditioner PAC 2010 SH...
- Page 18 PAC 2010 SH...
-
Page 19: Disposal
Directive 2006/66/EC of the European Parliament and of the Council of 6 September 2006 on batteries and accumulators. Please dispose of batteries and accumulators according to the relevant legal requirements. local air conditioner PAC 2010 SH... - Page 20 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
