Summary of Contents for Newstripe HashMark Paint & Go

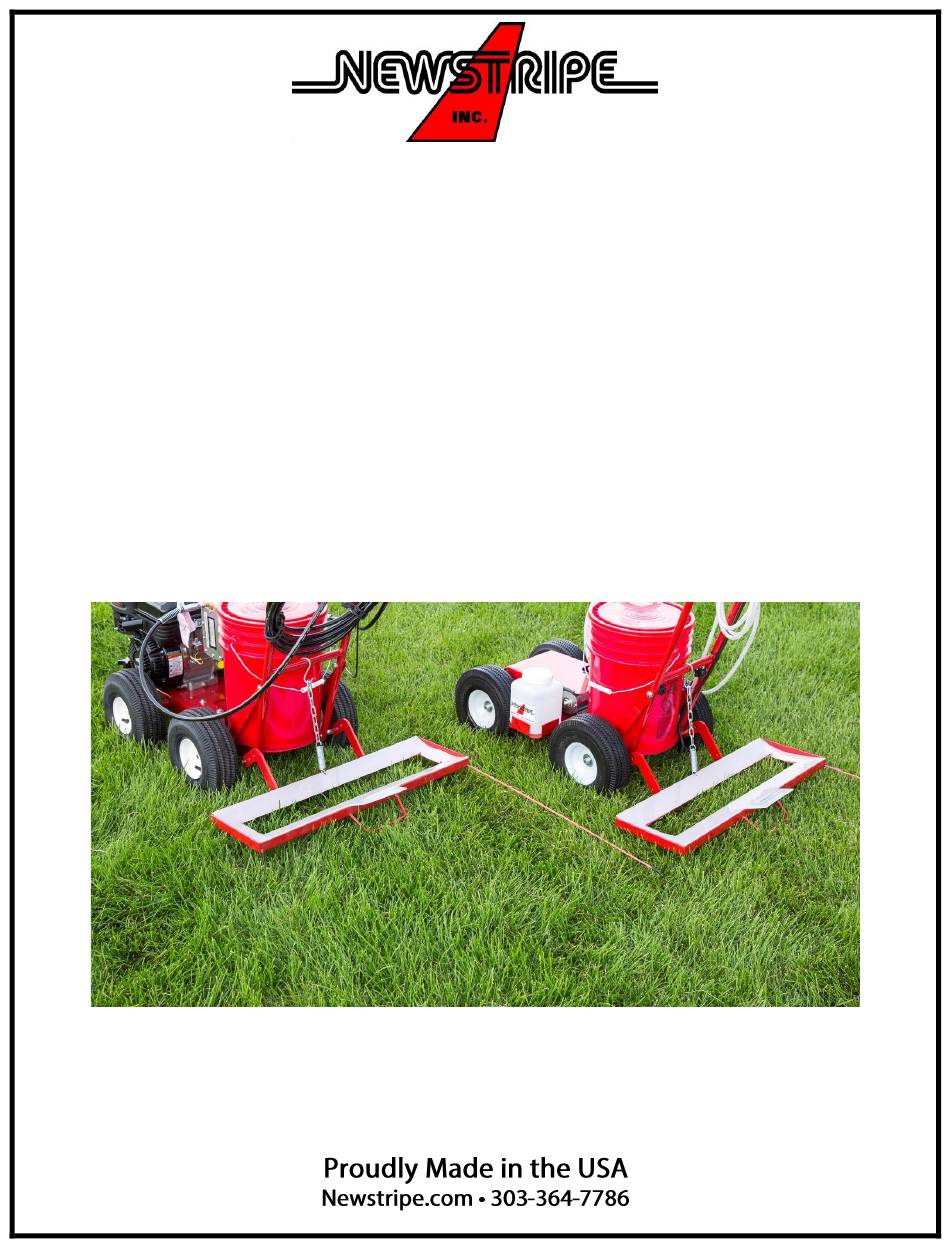

- Page 1 Product Manual HashMark Paint & Go Attachment For Use With Newstripe Walk Behind Striping Machines 10004850 4850.1124...
-
Page 2: Table Of Contents
HashMark Paint & Go Attachment TABLE OF CONTENTS Precautionary Warnings ......Page 1 Thank you for purchasing the Newstripe HashMark Paint & Go Attachment for Assembly & Adjustment ......Page 2 use with your Newstripe Walk Behind Striping Machine. Operation ..........Page 3 You may now easily paint football field hash marks without stencils or templates. -
Page 3: Precautionary Warnings
• CAUTION: An airless system is capable of producing 3000 psi. On airless systems, use only Newstripe Airless replacement parts rated at 3000 psi or higher. • WARNING: Never try to stop leaks with any part of your body. -
Page 4: Assembly & Adjustment
HashMark Paint & Go Attachment ASSEMBLY & ADJUSTMENT 1. Remove the bolts and nuts from the bottom of the 4. Remove the PolyTough plastic liner from the handle, and then replace them one at a time from Paint & Go tray. Install the measuring rod by the inside-out with the provided bolts, flat sliding it through the rubber grommet in the right washers, and lock washers. -
Page 5: Operation
You may order a replacement plastic liner from Newstripe if needed. HASH MARK STANDARDS Hash marks for professional and college football fields are located 4” in from the sidelines and are 24” in length. -
Page 6: Parts List
HashMark Paint & Go Attachment PARTS LIST Part Part Item Description Item Description Number Number Liner 10004889 S-Hook 10004882 Measuring Rod 10004877 Retaining Strap 10004915 Tray 10004888 Spring 10004017 #2 Measuring #5 Retaining Strap #6 Spring #4 S-Hook #1 Liner #3 Tray... -
Page 7: Warranty
In no event shall Newstripe be liable for incidental or consequential damages and no person had any authority to bind it to any representation or warranty. Newstripe is not responsible for work done, materials furnished, or repairs made by others without its specific written authorization.
