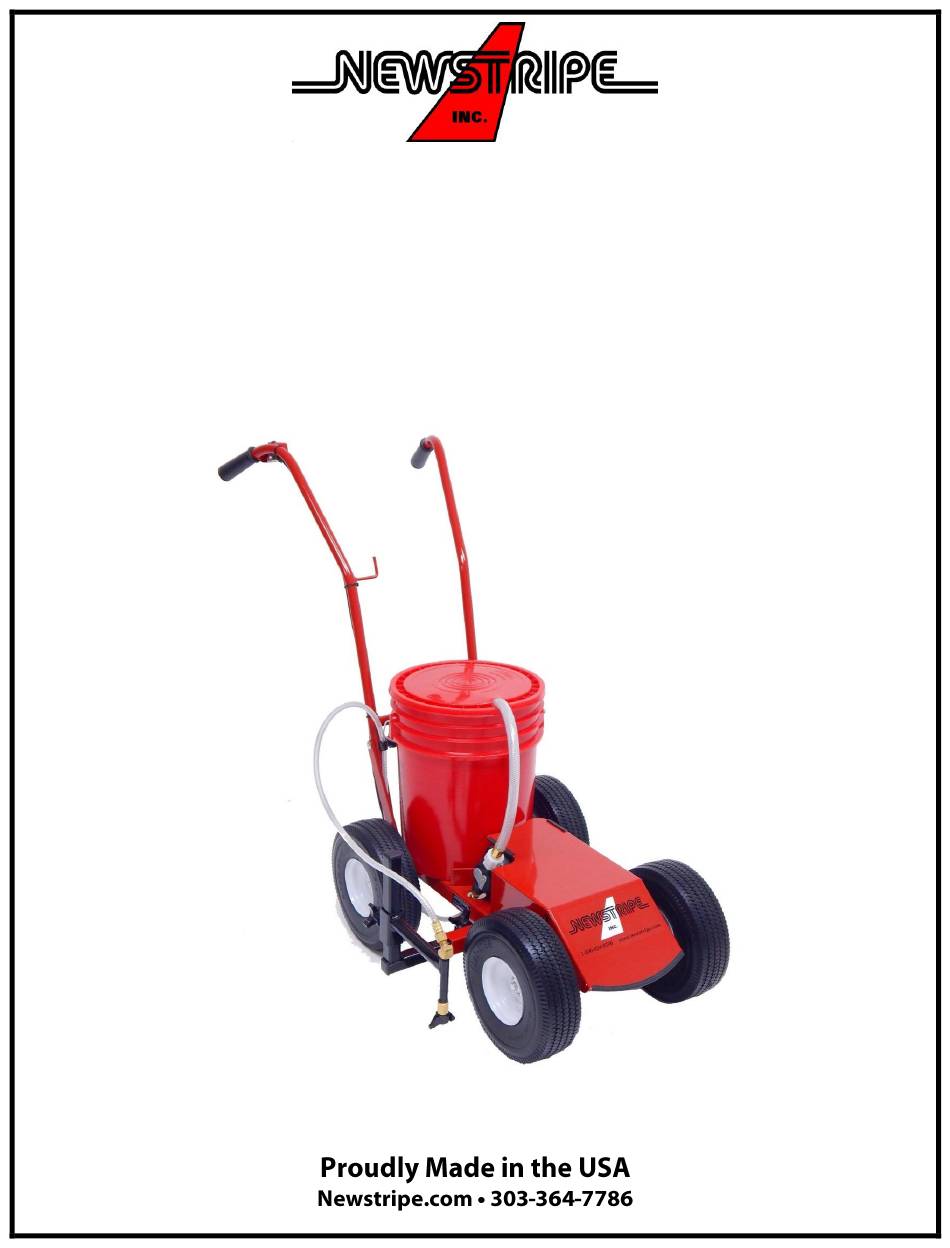

- Page 1 Product Manual EcoLiner™ Standard Battery Powered Field Striping Machine 10004483 4483.0424...
-
Page 2: Table Of Contents
EcoLiner™ Standard Battery Powered Field Striping Machine TABLE OF CONTENTS Precautionary Warnings ....Page 1 Thank you for purchasing the Newstripe EcoLiner Standard Battery Powered Field Assembly ........Page 2-3 Striping Machine. Operation ........Page 3 Recharging the Battery ....Page 4... -
Page 3: Precautionary Warnings
EcoLiner™ Standard Battery Powered Field Striping Machine PRECAUTIONARY WARNINGS • PLEASE read and understand all operation instructions as detailed in this manual. Failure to follow specified instructions may result in equipment damage or severe injury to personnel. • DO NOT use latex paints from hardware stores or home improvement centers in your machine. -
Page 4: Assembly
EcoLiner™ Standard Battery Powered Field Striping Machine Spray Head Suction Large Star Your EcoLiner™ Standard Box Should Include: Support Hose Knobs • Chassis/Handle Assembly with Paint Hose • Paint Pail Snap-On Lid • Cloth/Mesh Strainer Cloth/Mesh Parts bag containing: Strainer •... -
Page 5: Operation
EcoLiner™ Standard Battery Powered Field Striping Machine ASSEMBLY CONTINUED 7. Attach the spray hose to the brass elbow and lightly tighten it with a wrench. (Pic 3) 8. Attach the suction hose to the pump inlet and hand tighten only. 9. -
Page 6: Recharging The Battery
2. Wipe off or rinse off the pick-up tube, foot filter, NOTE: Always leave some of the cleaning solution and pail lid. or Newstripe Pump Defender in the pump when 3. Remove the nozzle cap, nozzle, and nozzle screen not in use. This keeps the internal pump and put them in a container of water to soak. -
Page 7: Parts List
EcoLiner™ Standard Battery Powered Field Striping Machine PARTS LIST Part Part Item Description Item Description Number Number Chassis 10004487 Suction Filter (Not Shown) 10002842 Handles 10004488 Wiring Harness 10004499 Handle Support Braces 10004489 Fuse, ATO/ATC 20 Amp 10002836 Spray Head 10004492 Hose Assembly, Paint 10004497... -
Page 8: Troubleshooting
Dissemble and clean or replace the screen. nozzle after it is shut screen is dirty or worn. off. Your machine is designed to be simple and safe to operate. Please call Newstripe at 303-364-7786 if you have any questions during setup, painting or cleaning. -
Page 9: Warranty
In no event shall Newstripe be liable for incidental or consequential damages and no person had any authority to bind it to any representation or warranty. Newstripe is not responsible for work done, materials furnished, or repairs made by others without its specific written authorization.
