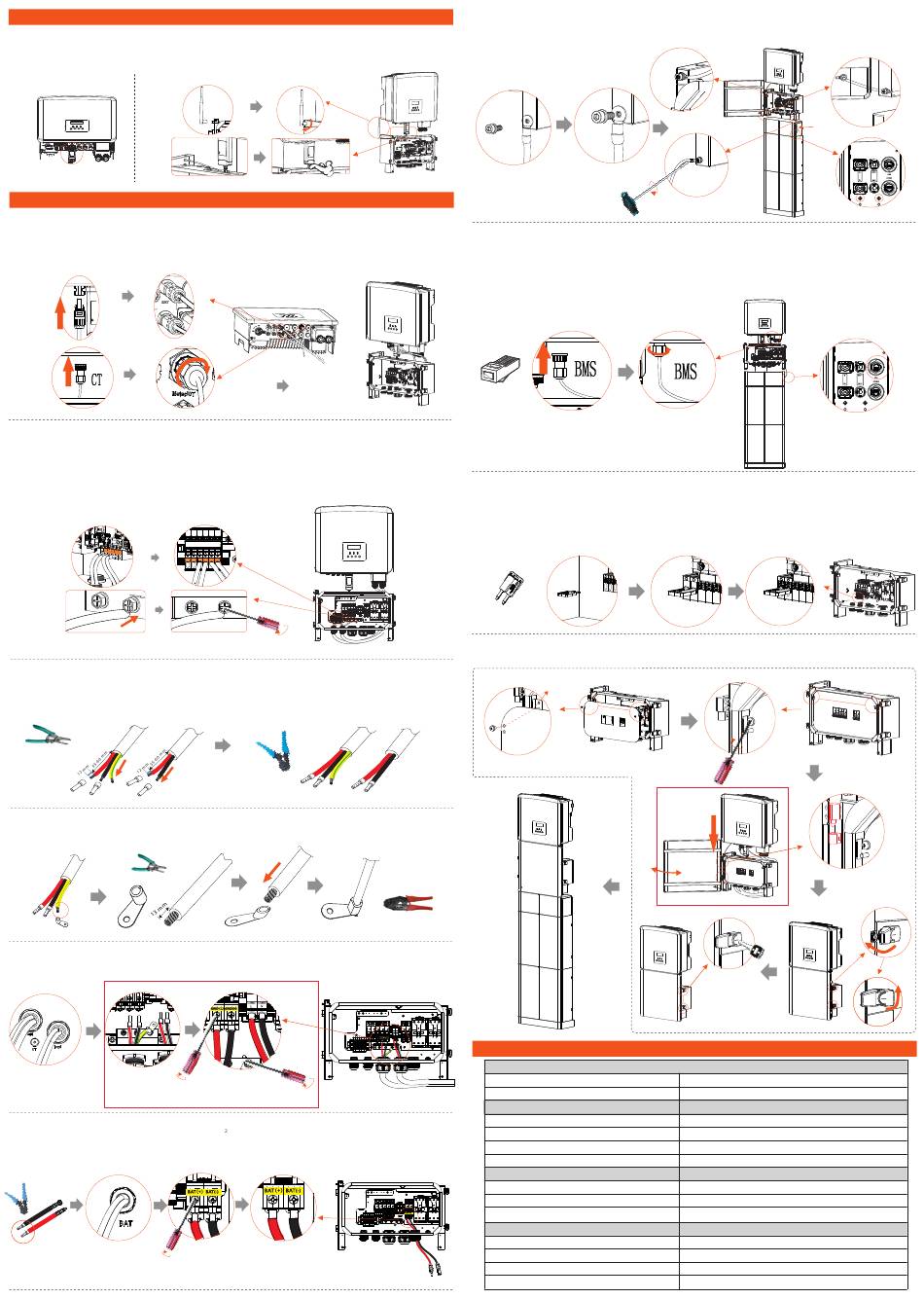

5. Monitoring Connection
a) Insert the WiFi dongle into the Dongle port of the inverter.
b) Take out the antenna from the box of monitoring accessories and install the antenna on bracket A
and tighten it by hand.
c) Then connect the antenna cable to the end of the WiFi dongle .
b)
a)
c)
6. Wiring Connection
6.1 Inverter side connection
a) According to the BAT(INV)+ / BAT(INV)- line symbol on the matebox, insert the lines into the
corresponding BAT + / BAT- ports of the inverter.
b) Connect the CT cable of the matebox to the CT port of the inverter, and tighten the waterproof plug.
a)
b)
6.2 Matebox side connection
1) Open the protective cover. Connect the Grid1 L/N and EPS (Off-grid)1 L/N/PE lines between the inverter
and the matebox. The connection method is as follows:
a) First, insert Grid1 L/N and EPS (Off-grid)1 L/N into the matebox port firmly, and then gently pull to check
if they are connected properly and screw the waterproof plug tightly;
b) Connect the Grid (PE), use a philips screwdriver to tighten the screws.
a)
b)
2) Grid(L/N/PE) /Load(L/N) side connection.
a) Grid(L/N/PE) /Load(L/N) wire, remove the 12 mm insulation layer at the end of the wire. Insert The
European terminals respectively. The stripped terminals must be inserted into the European terminals and
finally pressed down with the crimping pliers.
Diagonal plier
Grid(L/N)
Load(L/N)
b) Grid(PE) strip the grounding cable, remove the 13 mm insulation layer at the end of the wire. Insert the
stripped cable into the R-type terminal, and then clamp it.
Grid(PE)
Diagonal plier
c) Pass the Grid/Load line through the Grid/Load port of the matebox, then find the Grid (L/N) and Load
(L/N) ports in the matebox, insert each line accordingly, and use the screwdriver to lock the screws.
Grid (PE) is secured with a philips screwdriver.
Philips screwdriver
Torque: 1.5±0.2 N·m
3) Take out the power cable from the BMS accessories, and cut it to 560-600 mm and strip 7 mm of the
insulation layer from the wire ends. Crimp the 6 mm BAT terminals on the wires. Then pass the cable
through the BAT port of the matebox, then find the BAT+ and BAT- ports in the matebox, insert each wire
accordingly, and use the philips screwdriver to lock the screws.
Crimping plier
Philips screwdriver
Torque: 1.5±0.2 N·m
N N
⑦⑧⑨⑩
Philips screwdriver
Torque: 1.5±0.2 N·m
Crimping plier
Grid(L/N)
Earth bar
Philips screwdriver
Torque: 1.5±0.2 N·m
6.3 Ground wire connections
There are three parts that need to be grounded, one is between the inverter and the matebox, one
between the matebox and the battery and the other between the upper cover and the matebox.
6.4 Battery's communication wire connection
- When the distance between the matebox and the battery is < 1 m, you can use the BMS communication
line in the accessory bag.
- When the distance between the matebox and the battery is > 1 m, you need to prepare the regular
network cable and find the RJ45 terminal of the accessory package to make the cable.
The BMS port connection between the inverter and the battery (for the specific connection method,
please refer to the inverter and battery quick installation guide):
RJ45 terminal
6.5 N lines short circuit (applicable in Australia)
- According to local regulations, the continuity of the neutral line of EPS load and that of the grid is not
interrupted when the inverter disconnects from the grid (for wiring Australia and New Zealand regulations
AS/ NZs_3000:2012).
- First, find N-terminal adjacent Bridge in the accessory package.
- Forcibly insert N-terminal adjacent bridge into the N-terminal hole and jam it. Twist gently and make sure
it would not become loose.
N-terminal adjacent
bridge x1
6.6 Finally, use a philips screwdriver to install the baffle back, install the upper cover,
and then lock the buckle with a key
Load(L/N)
Crimping tool
7. Technical Parameters
DC Input/Output
Battery Voltage Range
Max. Charge/Discharge Current
Grid Input/Output
Rated Grid Voltage, Frequency
Max. Grid Input Current
Max. Apparent Grid (INV) Input Power
Max. Apparent Grid (INV) Output Power
Load
Rated Grid Voltage, Frequency
Max. Load Current
Max. Apparent EPS Output Power
Installation Specifcation
Dimension (L*W*H)
Weight
Operating Temperature
Installation
L=450 mm
Hexagon keys
Torque: 1.5±0.2 N·m
Philips screwdriver
Torque: 1.5±0.2 N·m
80-480 V d.c.
30 A/30 A
220/230/240 V a.c., 50/60 Hz
60 A
7500 VA
7500 VA
220/230/240 V a.c., 50/60 Hz
60 A
7500 VA
185 mm * 509 mm * 437 mm
10 kg
-35℃~+60℃
Wall Mounted
320102048701
