SolaX Power X3-MIC G2 Installation Manual
5 kw / 6 kw / 8 kw / 10 kw
Hide thumbs
Also See for X3-MIC G2:
- User manual (109 pages) ,
- Quick installation manual (2 pages) ,
- Installation manual (76 pages)
Subscribe to Our Youtube Channel
Related Manuals for SolaX Power X3-MIC G2
Summary of Contents for SolaX Power X3-MIC G2

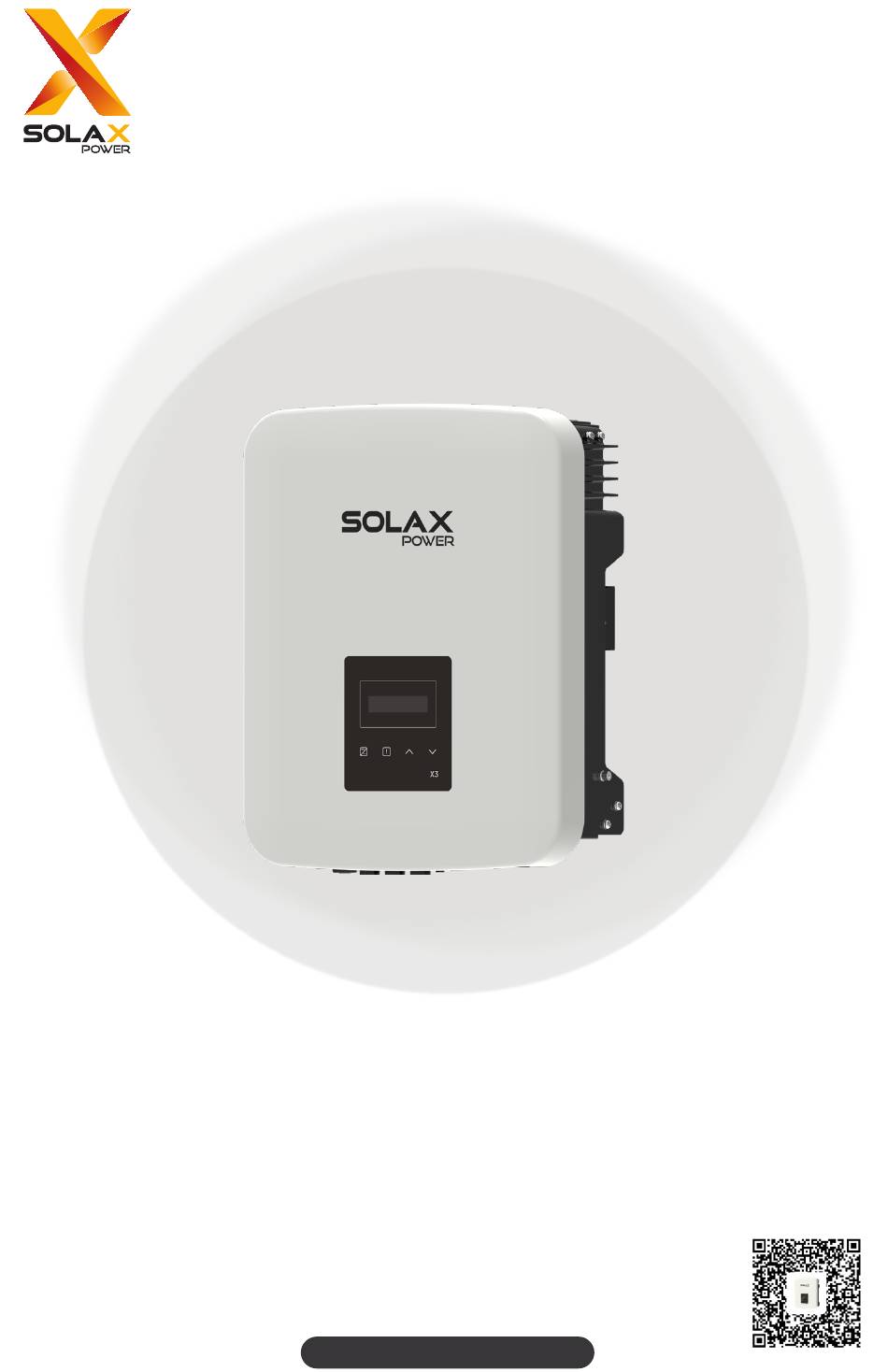

- Page 1 X3-MIC G2 5 kW / 6 kW / 8 kW / 10 kW Installation Manual Version 1.0 www.solaxpower.com eManual in the QR code or at http://kb.solaxpower.com/...
- Page 2 Safety General Notice 1. Contents may be periodically updated or revised. SolaX reserves the right to make improvements or changes in the product(s) and the program(s) described in this manual without the prior notice. 2. The installation, maintenance and grid-related setting can only be performed by qualified personnel who: •...
- Page 3 DANGER! Lethal danger from electrical shock due to the inverter • Only operate the inverter when it is technically faultless. Otherwise, electric shock or fire may occur. • Do not open the enclosure in any case without authorization from SolaX. Unauthorized opening will void the warranty and cause lethal danger or serious injury due to electric shock.
-
Page 4: Packing List
Packing List Expansion tube Self-tapping screw Inverter Washer Grounding terminal Positive PV connector & AC connector Allen wrench AC terminal sheath ST2.9 screw Positive PV pin contact Negative PV connector & Negative PV pin contact Waterproof connector with RJ45 Documents Dongle (Optional) Item Description Quantity... -
Page 5: Item Description
Item Description Quantity AC terminal sheath 1 pc ST2.9 screw 2 pcs Positive PV connector 2 pairs for 5 kW~8 kW and 10 kW (PV1: one string), 3 pairs for 10 kW (PV1: two strings) Positive PV pin contact Negative PV connector 2 pairs for 5 kW~8 kW and 10 kW (PV1: one string), 3 pairs for 10 kW (PV1: two strings) Negative PV pin contact... -
Page 6: Installation Angle
Installation Carrier Withstand four times inverter's weight and be suitable for installation and Weight dissipation (Please refer to "Technical Data") Fire resistant Installation Angle 90° ≤5° Installation Space ≥30 cm 7 cm Single inverter ≥30 cm ≥30 cm ≥30 cm ≥30 cm ≥35 cm ≥35 cm... -
Page 7: Installation Tools
Installation Tools Hammer drill Multimeter Measuring tape Utility knife (drill bit: Ø10 mm) (≥ 1000 V DC) Torque screwdriver Allen key Marker Spirit level (Phillips head: M4 / ST2.9) (including M5) Crimping tool Crimping tool Wire stripper for RJ45 for PV terminal Diagonal pliers Torque wrench Crimping tool... - Page 8 Additionally Required Materials Required Material Type Conductor Cross-section AC circuit breaker Refer to below tables Dedicated PV wire withstand PV cable 4 mm² voltage 1000 V AC cable Five-core copper wire Refer to below tables Communication cable Network cable CAT5 0.2 mm²...
- Page 9 Depth: >60 mm Ø10 drill Clockwise ST6.0 0.8±0.1 N·m Lock (Prepared by yourself)
- Page 10 PE Connection 6 mm ≥28 mm 4 mm²-6 mm² (5 kW), 5 mm²-6 mm² (6 kW~10 kW) Ø6 mm Heat shrink tubing 8-9 mm 0.8±0.1 N·m 0.8±0.1 N·m AC Side Connection Disassemble AC connector from Male insert Back shell Cable nut accessory bag...
- Page 11 52.5 mm Insulation jacket 12 mm 55 mm AC cable AC cable L1, L2, L3 wire: 4 mm²-5 mm² (5 kW), 5 mm²-6 mm² (6 kW~10 kW) N, PE wire: 2.5 mm²-5 mm² (5 kW), 2.5 mm²-6 mm² (6 kW~10 kW) Male insert 1: L1 wire 2: L2 wire...
- Page 12 DC Side Connection 4 mm2 Crimping tool for PV terminal Click! Click! ≤1000 V Hand-tight...
-
Page 13: Communication Connection
Click! Communication Connection Disassemble 1) White with orange stripes 2) Orange 3) White with green stripes 4) Blue 5) White with blue stripes 6) Green 7) White with brown stripes 8) Brown... - Page 14 Hand-tight • Pin definition for RS485/Meter/DRM (For AU / NZ)/Heat Pump Controller Item Heat Pump RS485/Meter Heat Pump Pin Definition +12V DRM0 Heat Pump RS485_A RS485_B * For DRM, only DRM 0 is available now. Power on the System Turn on DC switch * * DC switch is optional for the inverter.
- Page 15 Turn on AC breaker AC breaker on Grid Meter Main breaker on Load LCD Panel Timely output power Power Status or error information Normal Operating indicator light Down/Enter Error indicator light Up/ESC • In normal state, the "Power" / "Pgrid" / "Today" / "Total" information will be displayed respectively.
-
Page 16: General Setting
General Setting Language Power >Language >English Normal DateTime Deutsch DateTime >2023-03-10 >DateTime 00:00 Settings Set the system language, date and time. Password Power >Settings Normal Meter Energy 2 0 1 4 Settings Safety Country >Safety > VDE4105 < Export Control Check and set the corresponding safety standards according to different countries. - Page 17 Technical Data • DC input Model X3-MIC-5K-G2 X3-MIC-6K-G2 X3-MIC-8K-G2 X3-MIC-10K-G2 Max. PV array input power [W] 10000 12000 16000 20000 Max. PV voltage [d.c. V] 1000 1000 1000 1000 Rated input voltage [d.c. V] MPPT voltage range [d.c. V] 120-980 120-980 120-980 120-980...
- Page 18 • Efficiency, safety and protection Model X3-MIC-5K-G2 X3-MIC-6K-G2 X3-MIC-8K-G2 X3-MIC-10K-G2 MPPT efficiency 99.90% Euro efficiency 97.80% Max. efficiency 98.30% Safety & Protection Over/under voltage protection DC isolation protection DC injection monitoring Back feed current monitoring Residual current detection Active anti-islanding method Frequency Shift Over temperature protection SPD protection...
-
Page 19: Fcc Rules
EU directive. • The device is allowed to be used in all EU member states. • Hereby, [SolaX Power Network Technology (Zhejiang) Co., Ltd.] declares that the radio equipment type [Pocket WiFi] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https:// www.solaxpower.com/uploads/file/pocket-wifi-cedeclaration-of-... - Page 20 FCC RULES Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 21 Installation Requirements For Wi-Fi mode, the longest connection distance between the router and the equipment should be no more than 100 meters; if there is a wall between the router and the equipment, the longest connection distance is 20 meters. 24 cm concrete wall (example) <100 m <20 m...
-
Page 22: Download App
Wi-Fi Configuration Scan the following QR code or search for the keyword "SolaxCloud" in the APP Store to download the monitoring APP. Scan the following QR code to read WiFi Configuration Guide online. DOWNLOAD APP CONFIGURATION GUIDE NOTICE! • If you need to download the CONFIGURATION GUIDE, please scroll down to the bottom of the interface and click [Download]. -
Page 23: Technical Data
Technical Data Product Name Pocket WiFi Model Pocket WiFi V3.0 (-P/-E) Power Supply 5 V DC Rated Power 1.3 W EIRP Power 17.41 dBm (Measured Max. Average) Frequency 2.4 GHz Antenna Gain 3 dBi Antenna Type IPEX Degree of Protection IP65 Operating Temperate -40 to 85 °C... -
Page 24: Warranty Registration Form
Warranty Registration Form For Customer (Compulsory) Name Country Phone Number Email Address State Zip Code Product Serial Number Date of Commissioning Installation Company Name Installer Name Electrician License No. For Installer Module ( If Any ) Module Brand Module Size(W) Number of String Number of Panel Per String Battery ( If Any ) - Page 25 SolaX Power Network Technology (Zhejiang) Co., Ltd. Add.: No. 278, Shizhu Road, Chengnan Sub-district, Tonglu County, Hangzhou, Zhejiang, China E-mail: info@solaxpower.com 320102136301 Copyright © SolaX Power Network Technology (Zhejiang) Co., Ltd. All rights reserved.
