• Fan control switch to select automatic fan operation
while actively heating or cooling (AUTO), or continuous
fan operation (ON).
• Dual temperature setpoint levers for setting desired
temperature. The blue lever controls cooling, and the
red lever controls heating.
• Thermometer to indicate temperature in the zone. This
indicator is factory calibrated.
(Possible Schematic Designation: 5U29)
BAYSENS110 only function status indicator lights include:
• SYSTEM ON glows continuously during normal
operation, or blinks if system is in test mode.
• COOL glows continuously during cooling cycles, or
blinks to indicate a cooling system failure.
• HEAT glows continuously during heating cycles, or
blinks to indicate a heating system failure.
• SERVICE blinks or glows to indicate a problem. These
signals vary depending on the particular equipment
being used.
(Possible Schematic Designation: 5U29)
Integrated Comfort Systems
Sensors for CV and VAV
Applications
CV and VAV Unit Zone Sensor Options
These zone sensor options are for use with cooling/heating
Integrated Comfort System (ICS) systems.
BAYSENS074
Zone temperature sensor with timed override and local
setpoint adjustment
This electronic analog sensor features single setpoint
capability and timed override with override cancellation.
BAYSENS074 features and system control functions
include:
• Remote temperature sensing in the zone
• A timed override button to move an ICS or a building
management system from its "unoccupied" to
"occupied" mode
SCXF-SVX01T-EN
• Thumbwheel for local setpoint adjustment
• A cancel button to cancel the "unoccupied override"
command
(Possible Schematic Designation: 5U23)
BAYSENS073
Zone temperature sensor with timed override
This electronic analog sensor features single setpoint
capability and timed override with override cancellation. It
is used with a Trane® Integrated Comfort™ system.
BAYSENS073 features and system control functions
include:
• Remote temperature sensing in the zone
• A timed override button to move an ICS or a building
management system from its "unoccupied" to
"occupied" mode
• Cancel button to cancel the "unoccupied override"
mode
(Possible Schematic Designation: 5U23)

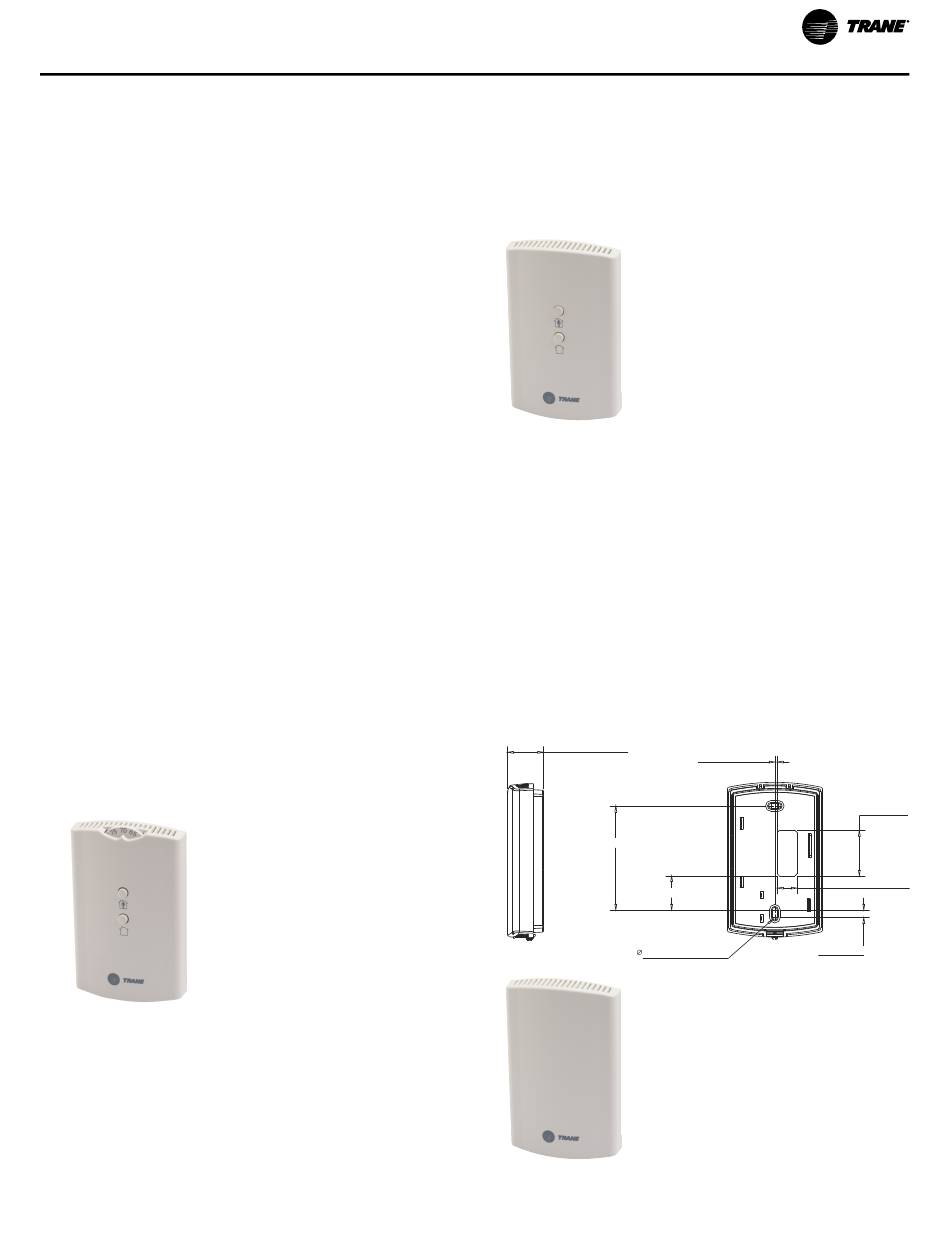

Figure 25. Zone sensor mounting hole locations for:
BAYSENS077
1-3/32 [27,43 mm]
3-5/32 [80,00 mm]
1-1/32 [26,16 mm]
RIGHT 5/32 [3,81 mm] 4X
Installation - Electrical
3/32 [2,00 mm]
1-3/8 [35,00 mm]
19/32 [15,00 mm]
15/64 [6,00 mm]
BACK
