Installation - Mechanical
Unit Handling
WARNING
Improper Unit Lift!
Failure to properly lift unit in a LEVEL position could
result in unit dropping and possibly crushing
operator/technician which could result in death or
serious injury, and equipment or property-only
damage.
Test lift unit approximately 24 inches (61 cm) to verify
proper center of gravity lift point. To avoid dropping of
unit, reposition lifting point if unit is not level.
•
Use spreader bars to avoid unit damage.
•
Spreader bar must be a minimum of 11 feet for 20-85
ton units and 12 feet for 90-110 tons. Chains must not
bear on top of unit.
•
Do not use hooks to lift unit. Do not hook into open
channels to lift unit. Loop chain through lifting lug. See
detail in
Figure 15, p. 30
•
Lift using overhead crane only. Adjust rigging for unit
center of gravity.
•
Unit center of gravity will fall within center of gravity
block at various locations depending on unit options.
•
See unit nameplate for unit weights.

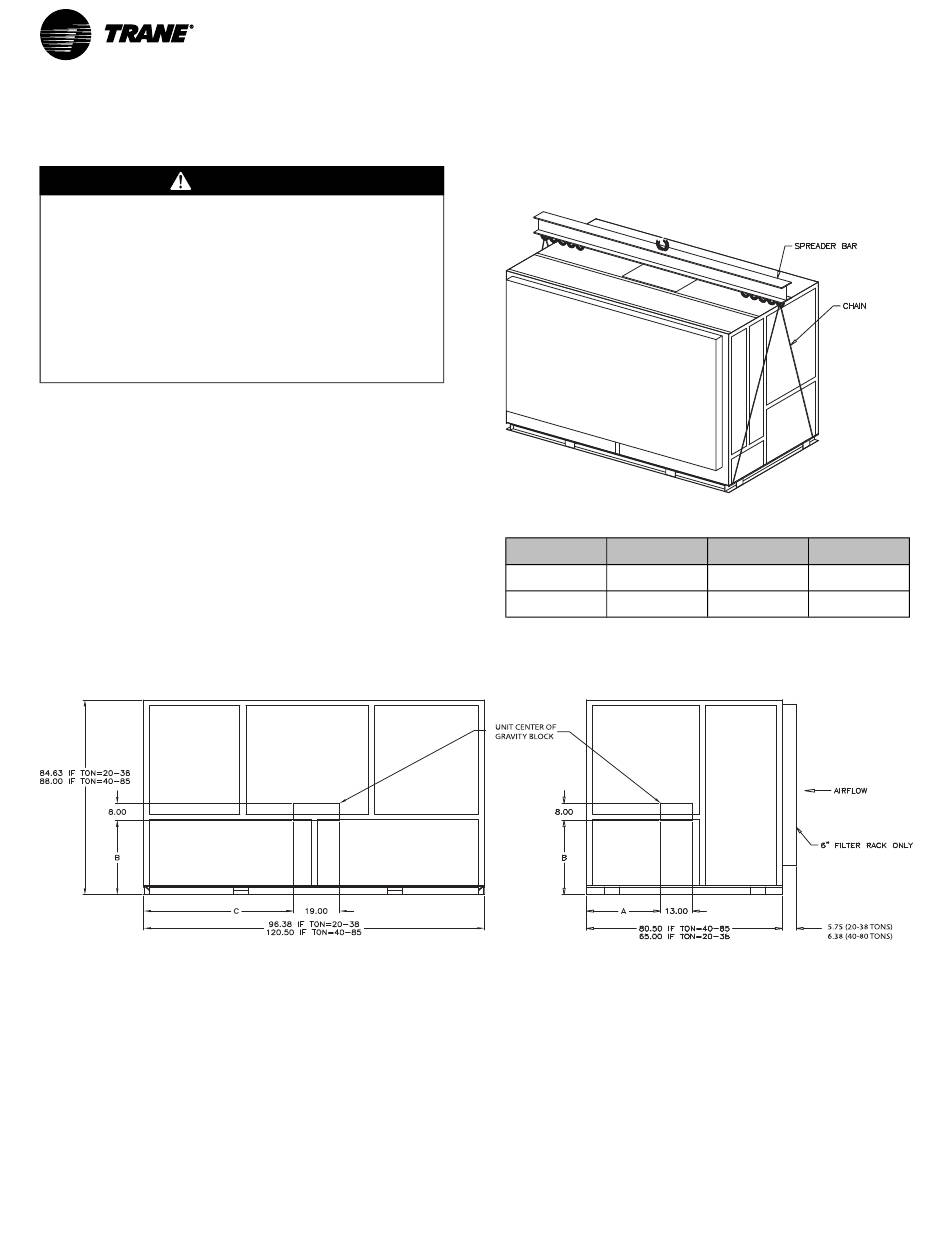

Figure 16. Gravity Block Dimensions 20 to 80 tons, in.
30
and
Figure 17, p.
31.
•
Do not stack units.
Figure 15. Detail of how to loop chain through lifting
lug on self-contained
Table 17. Gravity Block Dimensions 20 to 80 tons, in.
Unit Size
A
20-38
25
42-80
33
B
C
32
38
34
50
SCXF-SVX01T-EN
