Summary of Contents for Inside Weather MESA

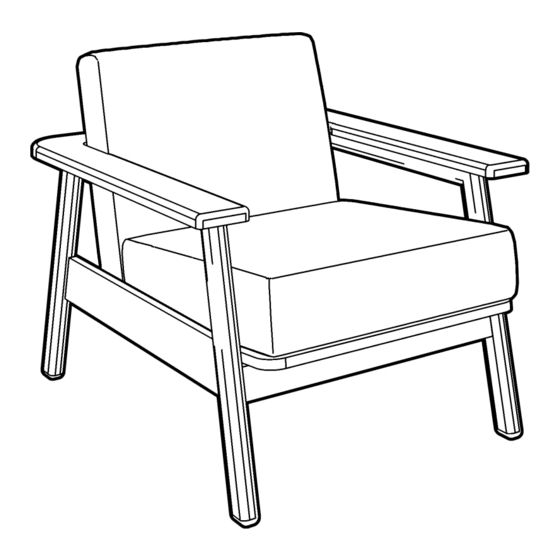

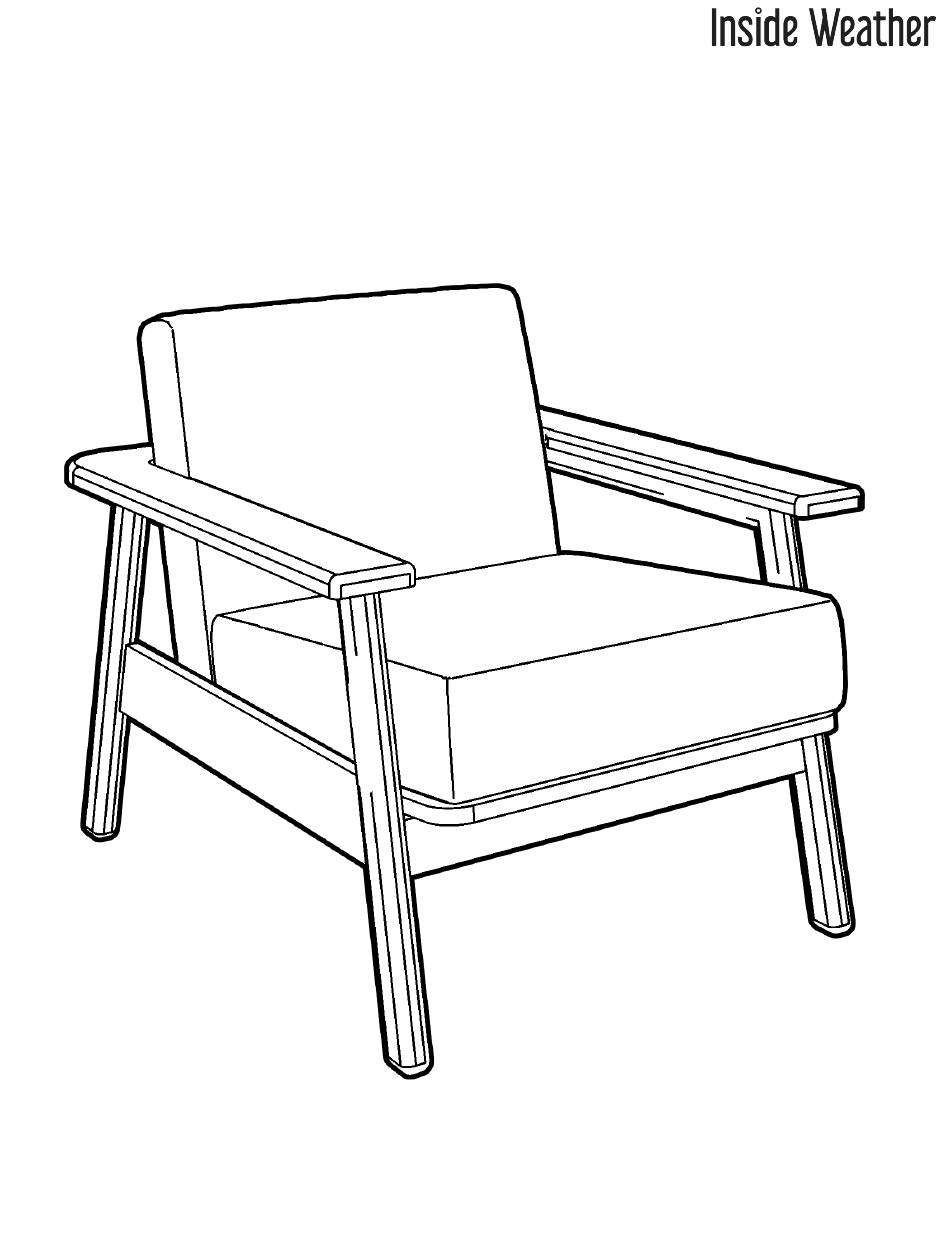

- Page 1 MESA LOUNGE CHAIR...
- Page 2 Gather Your Eggs... Back Pillow Seat Cushion Seat Back Back Brace Seat Base Legs (2x) Front Brace More Eggs... 9x 65mm Socket Head Screw 1x Allen Key 4x Wooden Dowel 4x 45mm Socket Head Screw 2x Cam Lock Screw 15x Washer 2x 25mm Socket Head Screw 2x Cam Lock Nut Note: Please retain all boxes until you are certain that your product isn’t damaged and that you...
- Page 3 Step 1: Attach Seat to Leg Before you begin, be sure that you’re assembling on a non-abrasive surface, such as carpet or flattened cardboard. Identify the front of the leg, it will have three holes on the front rail. Place the seat so that the side with the rounded corners is facing the front of the leg.
- Page 4 Step 2: Attach Front Brace Start by inserting two dowels in the leg as shown. Next screw in a cam lock screw in the hole in between the dowels. Place a cam lock nut in the large hole in the face of the front brace. Make sure the arrow on the cam nut is facing the outside as shown.
- Page 5 Step 3: Attach Back Brace Next insall the back brace as shown. This attaches to the back of the seat base oriented so that the screw inserts are facing down and the base extends up to prevent the cushion from slipping. Secure with three 65mm socket head screws and three washers with the allen key.
- Page 6 Step 4: Attach the Second Leg (Continued) Use three 65mm socket head screws and three washers to attach the seat to the leg. At this point you can make any adjustments necessary to ensure everything is straight. Once adjustments have been made you can now go around and tighten all the screws that attach the seat to the legs using the allen key.
- Page 7 Step 6: Attach the Back to the Arm With the arm still in place and upside down place the frame on it upside down as shown. Using the 45mm socket head screws and washers attach the frame to the arm using the allen key. You can now flip the chair over and place it on the ground.
- Page 8 Fabric Care Instructions Cleaning Codes Each fabric type has a specific cleaning code which can be found on the Free Swatch Page. SOLVENT OR WATER CLEANAB LE (S/W) Spot clean with upholstery shampoo, foam from a mild detergent, or a mild dry cleaning solvent. WATER CLEANAB LE (W) Spot clean fabric with a water-based shampoo or foam upholstery cleaner.
