- Page 1 Assembly and Operating Instructions max. 125 kg ~ 60 Min. 35 kg L 121 | W 53 | H 114 CVEB2407CVEB2711.01.02 SKU Code: CVEB2407 / CVEB2711 BodyMax B2 Indoor Cycle...
- Page 2 Indoor Cycle B2...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Assembly 2.2.1 Adjusting the Tension 2.2.2 Using the Emergency Brake Function OPERATING INSTRUCTIONS Console Display Button Functions Insertion of Battery and Switching on the Device Workout 3.4.1 Target Values 3.4.2 Standby Mode STORAGE AND TRANSPORT... - Page 4 ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT Indoor Cycle B2...
- Page 5 With BodyMax® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. Indoor Cycle B2...
-
Page 7: General Information
GENERAL INFORMATION Technical Data LCD - Display of Time Speed Distance Calories Pulse Brake system: Magnet manual brake system Flywheel mass: 13 kg Weight and dimensions Article weight (gross, including packaging): 39.7 kg Article weight (net, without packaging): 34.7 kg Packaging dimensions (L x W x H) approx.: 107 cm x 20.5 cm x 83 cm Set-up dimensions (L x W x H) approx.:... -
Page 8: Personal Safety
Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons. ࣑ ATTENTION Do not insert any objects of any kind into the openings of the device. Indoor Cycle B2... -
Page 9: Electrical Safety
Electrical Safety DANGER ⚠ In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠... -
Page 10: Set-Up Place
(over 70%) like swimming pools. A floor protective mat/equipment underlay can help to protect high-quality floor coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness. Indoor Cycle B2... -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 12: Assembly
Mount the seat (13) to the seat post (12) with a nylon nut (31) and a flat washer (5). Slide the vertical seat post (10) into the main frame (16) and line up the holes. Secure the desired seat position with the adjustment knob (7). Indoor Cycle B2... - Page 13 Step 3: Assembly of the Handlebar Post, the Handlebar and the Computer Slide the handlebar post (17) into the handlebar post housing on the main frame (16). Loosen the spring adjustment knob (7) and pull it back. Align the holes for the desired height. Release the spring adjustment knob (7) and retighten the knurled portion.
- Page 14 Lift the equipment on the desired side and rotate the setting screws under the main frame. Rotate the screws clockwise in order to remove them and to raise the equipment. Rotate them counterclockwise in order to lower the equipment. Indoor Cycle B2...
-
Page 15: Adjusting The Tension
2.2.1 Adjusting the Tension To increase the resistance, turn the emergency brake & tension control knob (52) to the right. To decrease the resistance, turn the emergency brake & tension control knob (52) to the left. 2.2.2 Using the Emergency Brake Function ⚠... -
Page 16: Operating Instructions
Press this button to confirm settings. MODE / RESET Press and hold this button for 2 seconds to reset all functions. Press this button to set values for TIME, DISTANCE, CALORIES and PULSE. Hold this button to increase values faster. Indoor Cycle B2... -
Page 17: Insertion Of Battery And Switching On The Device
Insertion of Battery and Switching on the Device Open up the battery compartment on the back side of the console. Insert one CR2032 3V battery in the battery compartment with the positive pole turning upwards and the negative pole turning downwards. Put the battery cover back on. -
Page 18: Storage And Transport
After that, you easily can move the equipment to a new position. For long transport distances the equipment should be disassembled and safely packed. Select the new location by following the instructions in the section 1.4 of this manual. Indoor Cycle B2... -
Page 19: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 20: Error Codes And Troubleshooting
Error Codes and Troubleshooting The electronics of the equipment continuously carries out tests. In case of deviations, an error code appears on the display and normal operation is stopped for your safety. Please contact Powerhouse Fitness for technical support. Indoor Cycle B2... -
Page 21: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Display console Plastic covers Screws and cable connections Legend: C = clean;... -
Page 22: Recommended Accessories
Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you! chest strap floor mat chest strap contact gel silicone spray towels Indoor Cycle B2... -
Page 23: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: BodyMax / indoor cycle Model Name: B2 Indoor Studio Cycle Exercise Bike Article Number: CVEB2407 / CVEB2711... -
Page 24: Parts List
GB/T 70.2-2000 M8*16 HANDLEBAR COVER 115*89*75 (60g) B0TTLE HOLDER 117*85*90 B0TTLE XS-003(1#) 500ML END CAP 3 50*25*1.5 LOCKING KNOB PE+Q235/φ52*47 (M8x15) FLAT WASHER 1 φ32*φ8.2*2 SENSOR SR-202 FIXING NUT 1 GB/T 6177.2-2000 M10*1.25 CRANK END CAP φ23*7.5 Indoor Cycle B2... - Page 25 SCREW 5 GB/845-85 M5*10 LOCK NUT GB/T 889.1-2000 M8 CHAIN WHEEL A7K-16 1/2"*1/8" 16T（1.37"（ LEFT CRANK 170*27 CRANK COVER φ56*28 BEARING 6004ZZ RIGHT CRANK 170*27 WASHER φ16*φ10*φ1.5 FIXING NUT 2 "GB/T 802-1988 M12X1.25 (H=16mm)" FIXING BOLT M6*58 GB/T 889.1-2000 M6 SCREW 1 GB/T 845-1985 ST4.2*19 SCREW 2...
- Page 26 END CAP φ25*1.5 FOAM GRIP φ23*φ29*465 FLAT WASHER2 35*20*2.0 FLAT WASHER GB/T 95-2002 12 L SHAPE KNOB (M16*1.5)X20mm FIXING TUBE φ16*φ12.2*56.5 FLYWHEEL COVER φ59*35 SCREW10 GB/845-85 ST4.8X13 FLAT WASHER φ16*φ10.2*φ1.5 SCREW 3 GB/845-85 ST4.8X19 END CAP1 φ14*14 Indoor Cycle B2...
-
Page 27: Exploded Drawing
Exploded Drawing... -
Page 28: Warranty
WARRANTY Training equipment from BodyMax® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 29 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 30: Contact
Mo - Fr 08:00 - 18:00 09:00 - 18:00 09:00 - 18:00 Please find a detailed overview including address and opening hours for all stores of the Sport-Tiedje Group in Germany and abroad on the following website: www.sport-tiedje.com/en/stores Indoor Cycle B2... - Page 31 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.co.uk for home fitness equipment with currently over www.sport-tiedje.de/blog 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on...
- Page 32 Notes Indoor Cycle B2...
- Page 33 Notes...
- Page 34 Notes Indoor Cycle B2...
- Page 36 BodyMax B2 Indoor Cycle...
Need help?
Do you have a question about the B2 and is the answer not in the manual?
Questions and answers
I have the bodymax B2 indoor spin bike and am looking for a replacement tension as when I turn it it does not connect to the wheel.
The Bodymax B2 indoor spin bike uses a friction-based resistance system controlled by a twistable knob with a quick-release tension adjuster. To find a replacement tension part, you should look for replacement friction resistance components or a tension knob compatible with the Bodymax B2 model. Check with fitness equipment parts suppliers or contact the manufacturer for compatible replacement parts.
This answer is automatically generated

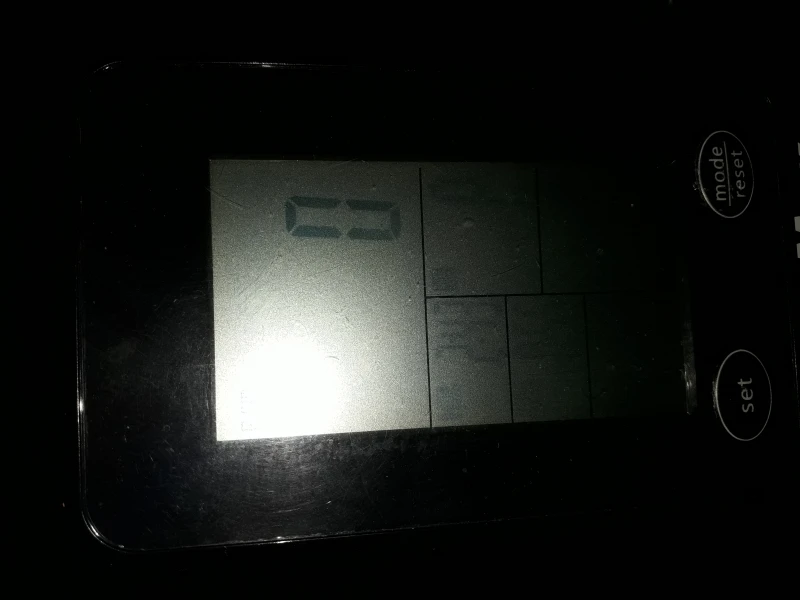

Does the digital display have a back light
