BODYMAX 80 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual

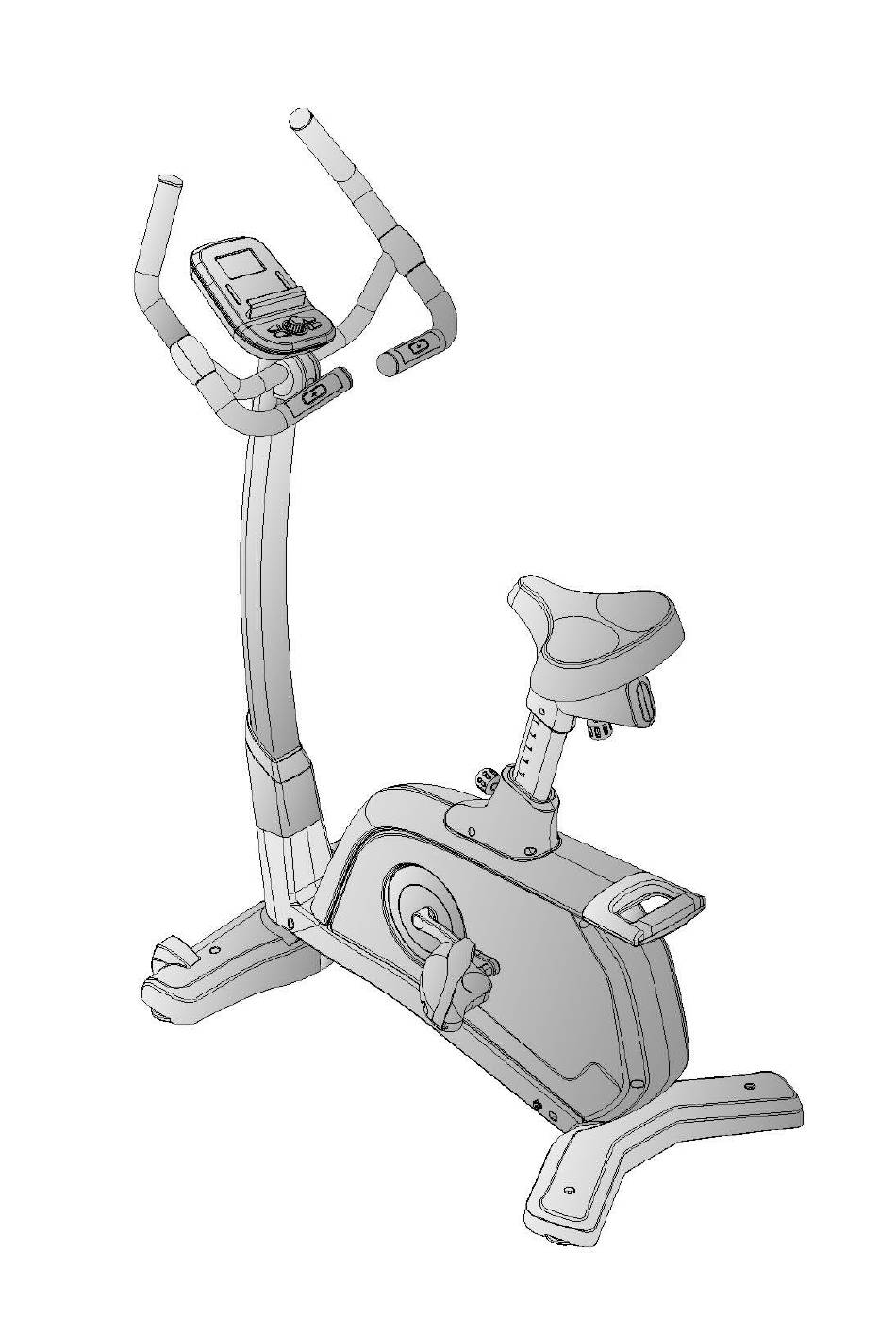

BodyMax 80 upright bike

Advertisement

loading
Need help?

Need help?

Do you have a question about the 80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BODYMAX 80

Summary of Contents for BODYMAX 80

  • Page 1 User Manual BodyMax 80 upright bike...
  • Page 2 Safety Instructions...
  • Page 4 • To ensure the best safety of the exerciser, regularly check it not toys. Therefore, they must only be used by properly for damage and worn parts. informed or instructed persons •Stop your work-out immediately in case of dizziness, nausea, •...

  • Page 5: Exploded Drawing

    Exploded drawing:...

  • Page 6: Checking List

    Checking list:...

  • Page 7: Part List

    Part list: Part no. Description Drawing no. Material Specification Q' ty Main frame 746A2-3-1000-J0 　 　 Front stabilizer 746S1-3-2100-J0 　 　 Rear stabilizer 746S1-3-2112-J0 　 　 Bolt 50308-5-0050-F3 M8x1.25x50L Spring washer 55108-2-1520-FA D15.4xD8.2x2T Flat washer 55108-1-2520-FA Q235A D25xD8.5x2T Flat washer 55108-1-1812-FA Q235A D18xD8.5x1.2T...
  • Page 8 Bolt 50206-5-0015-C0 M6x1.0x15L Anti-loose nut 55206-1-2006-CA Q235A M6x1.0x6T Inner tube 745S0-6-1071-B0 40*80*39L Seat cover(left) 746S0-6-2282-B0 262.5*31.8 Seat cover(right) 746S0-6-2283-B0 262.5*24.8 Screw 50805-2-0012-D0 Q235A M5*0.8*12L Spacer ring 80700-6-2781-00 D22.5*D17.2*6.4T Waved washer 55117-5-2203-DA 65Mn D22xD17x0.3T Flat washer 55117-1-2315-NA Q235A D23*D17.2*1.5T C-ring 55517-1-0010-00...
  • Page 9 737L6-6-2491-B0 40*15.2 Handle pulse fixed base(lower) 737L6-6-2492-B0 40*15.2 Handle pulse cable 81800-6-2479-00 700L 　 Screw 50904-2-0015-F0 ST4x1.41x15L Protective cover 80502-6-2481-B0 ABS717 80.6*56*52.5 T-knob 51908-2-0065-B1 Q235A+PP M8x1.25x65 Bushing 58002-6-1026-F0 Q195 D8.2xD12.7x33 Line plug 55312-1-0015-BA D4*D12*13 Round wheel 84302-6-2175-00 PVC+PP D70.5*23 Spacer bushing 58002-6-1099-00 D22.2*D8.2*7T...

  • Page 10: Assembly Drawing

    Magnet fixed welding set 70702-3-3200-N1 　 　 Bolt 50108-5-0052-N3 M8*52L Bolt 50106-5-0060-N0 M6*60L Spring 58003-6-1054-N0 D1.0*55L 55206-2-2006-NA Q235A M6*1*6T Nylon washer 55106-1-1915-B1 NL66 D6*D19*1.5T Flat washer 55106-1-1310-NA Q235A D13*D6.5*1.0T Anti-loose nut 55206-1-2006-NA Q235A M6*1*6T Inner hexagon cross wrench 58030-6-1031-N1 Open spanner 58030-6-1049-C0 150*6T 　...
  • Page 11 Step 2 1) Assemble the front stabilizer cover (16L&16R) and rear stabilizer cover (17) onto the front and rear stabilizer by Bolt (87) as fig 2-1,2-2 and 2-3.
  • Page 12 Step 3 1) Insert seat post tube (9) into main frame and adjust the height by knob. 2) Assemble the seat onto the seat adjustment tube as fig 3-1 and 3-2. The seat can be adjusted frontward and backward by knob...
  • Page 13 Step 4 1) We suggest assembling this step by two persons. 2) Lift up the upper cover (19) as fig 4-1 and then connect upper and lower computer cable (89&90) as fig 4-2. 3) Insert the handlebar post (10) into the main frame and tighten it by spring washer (5), flat...
  • Page 14 washer (7) and Allen bolt (8) as fig 4-3. 4) Through the cable of fixed handlebar out of the handlebar post and then fix the handlebar by Spring washer (5), Flat washer (7), protective cover (75), busing (77) and T knob (76) as fig 4-4,4-5 and 4-6.
  • Page 15 SM(SE)17 / 27 / 37 SERIES INSTRUCTION MANUAL I1248 DISPLAY FUNCTIONS ITEM DESCRIPTION TIME Count up – No preset target, Time will count up from 00:00 to maximum 99:59 with each increment is 1 minute. Count down - If training with preset Time, Time will count down from reset to 00:00. Each preset increment or decrement is 1 minute between 00:00 to 99:00.
  • Page 16 Start/ Stop Start or Stop workout. Recovery Test heart rate recovery status. Body fat In stop mode, press it for body fat measurement.
  • Page 17 OPERATION: POWER ON Plug in power supply, computer will power on and display all segments on LCD for 2 seconds (Drawing 1). Drawing 1 Then enter into User data setting. Use UP or DOWN (Encoder) to select U1~U4 (Drawing 2), then set SEX, AGE, HEIGHT, WEIGHT (Drawing 3) and confirm by pressing MODE / ENTER button.
  • Page 18 Drawing 9 Drawing 10 Drawing 11 Drawing 12 Drawing 13 Program Mode 1. Use UP or DOWN (Encoder) to select workout program, choose Beginner mode and press MODE / ENTER to get into. 2. Use UP or DOWN (Encoder) to select program 1~12 (Drawing 14) and press MODE / ENTER to get...
  • Page 19 Drawing 15 H.R.C. Mode 1. Use UP or DOWN (Encoder) to select workout program, choose H.R.C. and press MODE / ENTER to get into. 2. Use UP or DOWN (Encoder) to select 55% (Drawing 16).75%.90% or TAG (TARGET H.R.) (default : 100, Drawing 17). 3.
  • Page 20 Drawing 21 Drawing 22 Drawing 23 Drawing 24 Drawing 25 Drawing 26 Noted: 1. After 4 minutes without pedaling or pulse input, console will enter into power saving mode. Press any key may wake the console up. 2. When computer act abnormal, please plug out the adaptor and plug in again.
