Summary of Contents for BODYMAX CVET2706

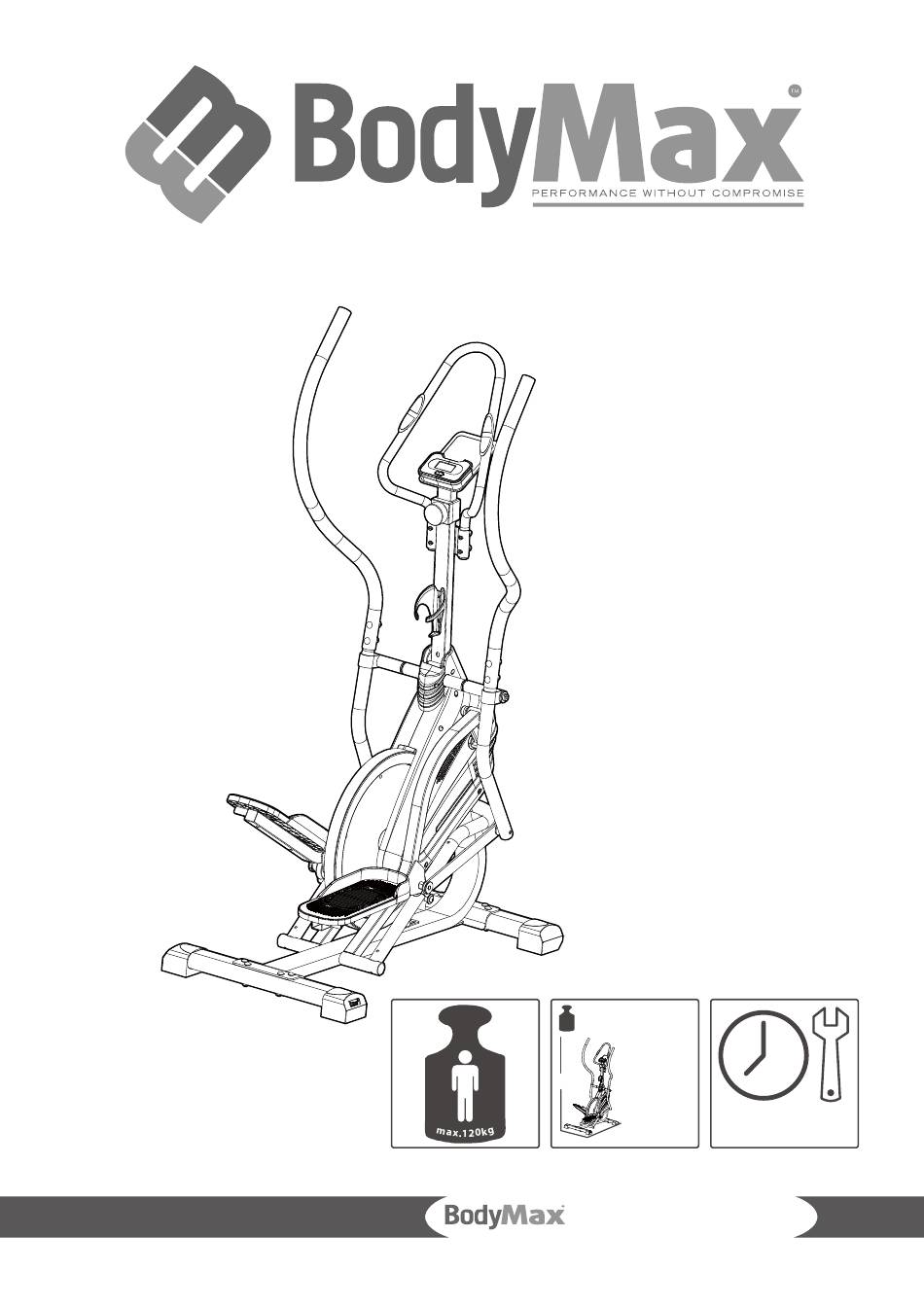

- Page 1 Assembly and operating instructions A 67 cm 38 kg B 96 cm C 158 cm ~ 60 min. 2021.05 MXT40-M1 APEX TRAINER Item number CVET2706...
- Page 3 Thank you for deciding for a high-quality training equipment of the brand BodyMax, the brand that makes athlete‘s hearts beat faster. BodyMax offers a wide range of home fitness equipm nt is the optimal equipment for all those who want to train at home independent of goals and fitness level.
-
Page 4: Table Of Contents
CONTENTS IMPORTANT SAFETY NOTICE GENERAL INFORMATION Technical data Personal safety Set-up place ASSEMBLY INSTRUCTION General instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console Display Functions Button STORAGE AND TRANSPORT General Instructions Folding Mechanism TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES... -
Page 5: Important Safety Notice
IMPORTANT SAFETY NOTICE ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance. -
Page 6: General Information
GENERAL INFORMATION Technical data LCD Display of Speed in km/h Training Time in min Training Distance Calories Burnt Heart Rate Resistance system: manual magnetic brake system Resistanc leveel: Maximum stride length: 25.4 cm Stride height: 18 cm Stride width: 27 cm Flywheel mass: 7 kg Weight and Dimensions:... -
Page 7: Personal Safety
GENERAL INFORMATION Personal safety DANGER + Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 8: Set-Up Place
GENERAL INFORMATION Set-up place WARNING + Do not place the equipment in main corridors or escape routes. CAUTION + Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. + The training room should be well ventilated during training and not be exposed to any draughts. -
Page 9: General Instructions
ASSEMBLY General instructions DANGER + Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. WARNING + Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 10: Scope Of Delivery
ASSEMBLY INSTRUCTION Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION If parts of the scope of delivery are missing or damaged, the assembly must not be carried out. - Page 11 ASSEMBLY INSTRUCTION Step 1 Step 2 NO.5 Spring Washer (D8) × 8pcs NO.12 NO.6 Nylon Nut (M8) × 4pcs Washer (D8) × 4pcs NO.6 NO.4 Screw (M8×55) × 8pcs Flat Washer (D8) × 8pcs NO.11 Bolt (B8×50) × 4pcs Step 3 NO.30 Washer (ø16×ø28) ×...
-
Page 12: Assembly
ASSEMBLY INSTRUCTION Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. - Page 13 ASSEMBLY INSTRUCTION Step 2: Assembly of the Pedals 1. Place one pedal plate (83) on each of the pedal welds (9R & 9L). 2. Mount the pedals (10R & 10L) to their respective pedal weld (9R & 9L) with two screws (11), two washers (6) and two nylon nuts (12) on each side.
- Page 14 ASSEMBLY INSTRUCTION Step 3: Assembly of the Swing Rods 1. Slide the long axis (49) through the connection at NO.26 Bolt (M8×ø9) × 2pcs the top centre of the main frame (1). 2. Mount the right swing rod (29R) to the right of NO.30 Washer (ø16×ø28) ×...
- Page 15 ASSEMBLY INSTRUCTION Step 4: Assembly of the Handlebars Mount the left and right handlebars (34L & 34R) to their respective swing rod (29L & 29R) with two screws (35), two washers (36) and two nuts (37) on each side. NO. 35 Bolt (M8×40) × 4pcs NO.
- Page 16 ASSEMBLY INSTRUCTION Step 5: Assembly of the Middle Handlebar 1. Slide the mid handlebar weld (39) into the main NO. 36 Washer (D8) × 4pcs frame (1). 2. Mount the mid handlebar weld (39) to the main NO. 37 Nut (M8) × 4pcs frame (1) with one screw (42).
- Page 17 ASSEMBLY INSTRUCTION Step 6: Assembly of the Monitor and the Bottle Holder 1. Connect the cables of the mid handlebar weld (80 NO. 84 Screw (M5×10) × 2pcs & 96) to the cables of the monitor (41). NO. 92 Screw (M5×10) × 2pcs ATTENTION Make sure not to pinch the cables during the following step.
-
Page 18: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. Console Display Scan Displays a different training value every six seconds Time Displays the remaining or elapsed training time (00:00 -99:59 min) Speed... -
Page 19: Storage And Transport
STORAGE AND TRANSPORT General Instructions WARNING + The storage location should be chosen so that improper use by third parties or children can be prevented. + If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION + Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. -
Page 20: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions WARNING + Do not make any improper changes to the equipment. CAUTION + Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 21: Maintenance And Inspection Calendar
TROUBLESHOOTING, CARE AND MAINTENANCE Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly... -
Page 22: Disposal
DISPOSAL At the end of its operational life, this equipment cannot be disposed of in normal household waste. Instead, it must be disposed of via an recycling centre. Further information can be obtained from your local authority‘s recycling service. The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment. -
Page 23: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: BodyMax / Stepper Model Name: MXT40-M2 Apex Trainer SKU-Code: CVET2706... -
Page 24: Parts List
ORDERING SPARE PARTS Parts List Name Qt'y No. Name Qt'y No. Name Qt'y Main Frame 34L/R Handlebar (L/R) 68 Screw (M5×12mm) Front Stabilizer 35 Bolt (M8×40mm) 69L/R Chain Cover (L&R) Rear Stabilizer 36 Washer (D8) 70L/R Decoration Cover (L&R) Screw (M8×55mm) 37 Nut (M8) 71 Decorative Strip Spring Washer (D8) -
Page 25: Exploded Drawing
ORDERING SPARE PARTS Exploded drawing... -
Page 26: Warranty
WARRANTY Training equipment from BodyMax Fitness® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 27 WARRANTY Warranty conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 28: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 +49 4621 4210-698 technik@sport-tiedje.de Mo - Fr 08:00 18:00 Mo - Fr 08:00 - 18:00 Mo - Fr 08:00 - 18:00... - Page 29 CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 +49 4621 4210-698 technik@sport-tiedje.de Mo - Fr 08:00 18:00 Mo - Fr 08:00 - 18:00 Mo - Fr 08:00 - 18:00...
- Page 30 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.co.uk www.sport-tiedje.de/blog 70 stores and one of the world’s most renowned equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on studios, hotels, sports clubs, companies and www.instagram.com/sporttiedje physio practices with professional equipment...
- Page 31 Notes...
