Assembly and Operating Instructions
CVEB241901.01
Item number CVEB2419

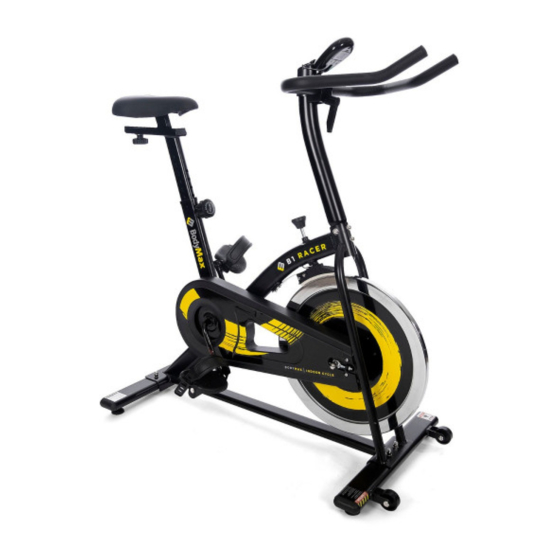

B1 Racer Indoor Cycle

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CVEB2419 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BODYMAX CVEB2419

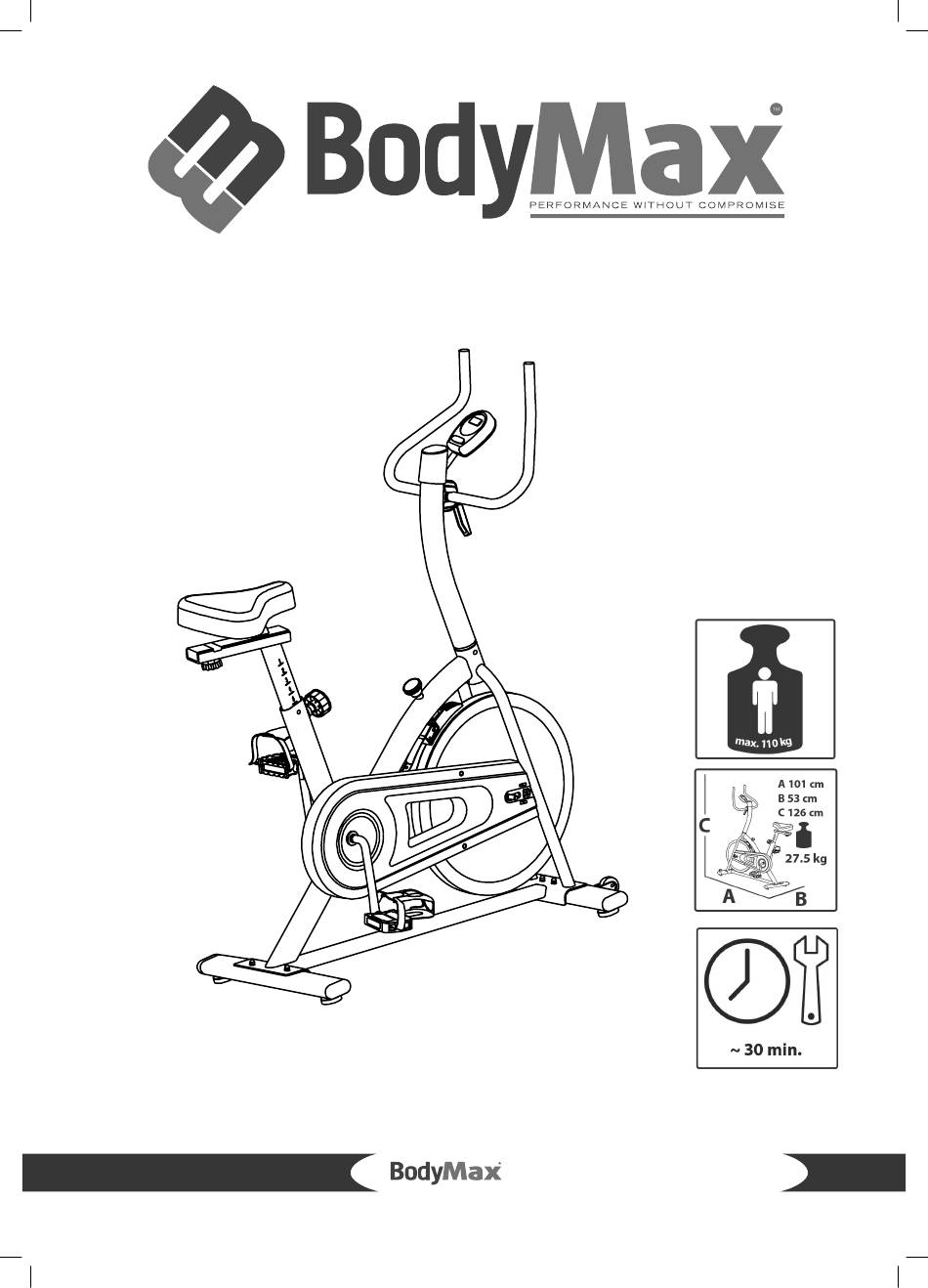

  • Page 1 Assembly and Operating Instructions CVEB241901.01 Item number CVEB2419 B1 Racer Indoor Cycle...
  • Page 2 CVEB2419 B1 Racer Indoor Cycle...
  • Page 3 Dear Customer, Thank you for deciding for a high-quality training equipment of the brand Bodymax, the brand that makes athlete‘s hearts beat faster. Bodymax offers a wide range of home fitness equipment like ellip- tical cross trainers, ergometers, treadmills and rowing machines. Bodymax equipment is the optimal equipment for all those who want to train at home independent of goals and fitness level.
  • Page 4: Table Of Contents

    2.3 Maintenance and service calendar ASSEMBLY 3.1 Package contents 3.2 Assembly instructions WARRANTY INFORMATION DISPOSAL ORDERING ACCESSORIES ORDERING SPARE PARTS 7.1 Service hotline 7.2 Serial number and model name 7.3 Parts list 7.4 Exploded drawing CVEB2419 B1 Racer Indoor Cycle...
  • Page 5: General Information

    GENERAL INFORMATION Technical data LCD display of speed in km/h training time in min training distance in km calories in kcal Weight and dimensions: Article weight (gross, including packaging): 31.5 kg Article weight (net, without packaging): 27.5 kg Packaging dimensions (L x W x H): approximately 100 cm x 20 cm x 71 cm Set up dimensions (L x W x H): approximately 101 cm x 53 cm x 126 cm Maximum user weight: 110 kg Personal safety...
  • Page 6: Set-Up Place

    The equipment should no longer be used until it has been repaired. When needed, only use original BodyMax spare parts. The equipment may be cleaned of dust, dirt and sweat using a damp cloth. The use of solvents should be strictly avoided.
  • Page 7: Faults And Troubleshooting

    Faults and troubleshooting The equipment runs through regular quality controls during production. Nevertheless, errors or malfunctions on the equipment may occur. Individual parts are often the cause of faults and replacement is usually sufficient. Please use the following overview to see the most common errors and how to repair them.
  • Page 8: Assembly

    The height of the seat can be adjusted after the cycle is fully assembled. Connect the wires (29 & 83) with one another. Then install the handlebar post (17) on the main frame (16) with four arc washers (21) and four bolts (20). Fig. 2 CVEB2419 B1 Racer Indoor Cycle...
  • Page 9 FIG.3: Attach the handle bar (18) and the protective cover (28) to the handlebar post (17) with the L shape knob (24) and one spring washer (19). Slide the console onto the computer holder and connect the wires (65) and the wire (83) with one another.
  • Page 10 To use the emergency brake function, firmly press down on the emergency brake & tension control knob (52). CVEB2419 B1 Racer Indoor Cycle...
  • Page 11 Adjustment of the seat and the handlebar *To adjust the seat vertically, slacken the spring knob on the vertical post stem on the main frame and pull back the knob. Position the vertical seat post for the desired height and make sure that holes are aligned, then release the knob and retighten it.
  • Page 12 RESET Push the selection button for about 3 seconds and the parameters will be reset to zero. Auto off The console will shut down automatically when it does not receive any signal for 4 minutes. CVEB2419 B1 Racer Indoor Cycle...
  • Page 13: Warranty Information

    WARRANTY INFORMATION Bodymax training fitness equipment is subject to strict quality controls. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
  • Page 14 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. CVEB2419 B1 Racer Indoor Cycle...
  • Page 15: Disposal

    The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment. ORDERING ACCESSORIES Bodymax 6’ x 4’ x 10mm Commercial Rub- ber Gym Mat...
  • Page 16: Ordering Spare Parts

    Serial number and model name Before assembling your equipment, find the serial number on the white sticker and enter it in the appro- priate space. Serial number: Brand / category: Model name: Bodymax CVEB2419 B1 Racer Indoor Cycle CVEB2419 B1 Racer Indoor Cycle...
  • Page 17: Parts List

    Parts list No. Description Specification Qty. PEDAL(1L/1R) JD-2B 1/2" END CAP1 70*30*1.5 CARRIAGE BOLT GB/T 12-1988 M8*42 REAR STABILIZER WELDING FLAT WASHER GB/T 95-2002 DOMED NUT "GB/T 802-1988 M8 (H=16mm)" SPRING ADJUSTMENT KNOB φ57*62 (M16*1.5) PLASTIC SLEEVE 50*25*1.5 LOCK NUT M33*1*4 VERTICAL SEAT POST WELDING...
  • Page 18 φ40*110 BUSHING φ18*φ10*10 SPRING 1 φ1.8X25 BOLT GB/T 5780-2000 M8*40 WHEEL φ50*23 crank assembly WELDING FIXING NUT 2 M12X1.25 H=6 FIXING TUBE φ16*φ12.1*35 BEARING 6001ZZ FLYWHEEL φ450*72(13KG) FLYWHEEL SHAFT φ12*160 FIXING NUT 2 16X16X5 (M10) CVEB2419 B1 Racer Indoor Cycle...
  • Page 19 No. Description Specification Qty. FIXING NUT 2 16X16X5 (M10) END CAP 1 φ22*12 COMPUTER HS-6065 FOAM GRIP φ20*φ26*500 SPRING 2 φ1.0X35 SHORT FIXING TUBE φ14*φ10.2*8.5 FLAT WASHER 1 DOMED NUT 1 GB/T 802-1988 M6 SPRING COVER 32*23*2 SPRING 3 φ2.2 PLASTIC FRAME 200*47*30 LITTLE PLASTIC...
  • Page 20: Exploded Drawing

    Exploded drawing CVEB2419 B1 Racer Indoor Cycle...
  • Page 21 DISCLAIMER ©2011 Bodymax is a registered brand of the company Sport-Tiedje GmbH. All rights re- served. Any use of this trademark without the explicit written permission of Sport-Tiedje is prohibited. Product and instructions are subject to change. Technical data can be changed without advance notice.
  • Page 22 Notes CVEB2419 B1 Racer Indoor Cycle...
  • Page 24 B1 Racer Indoor Cycle...
