Summary of Contents for SIMPLIHOME Jager

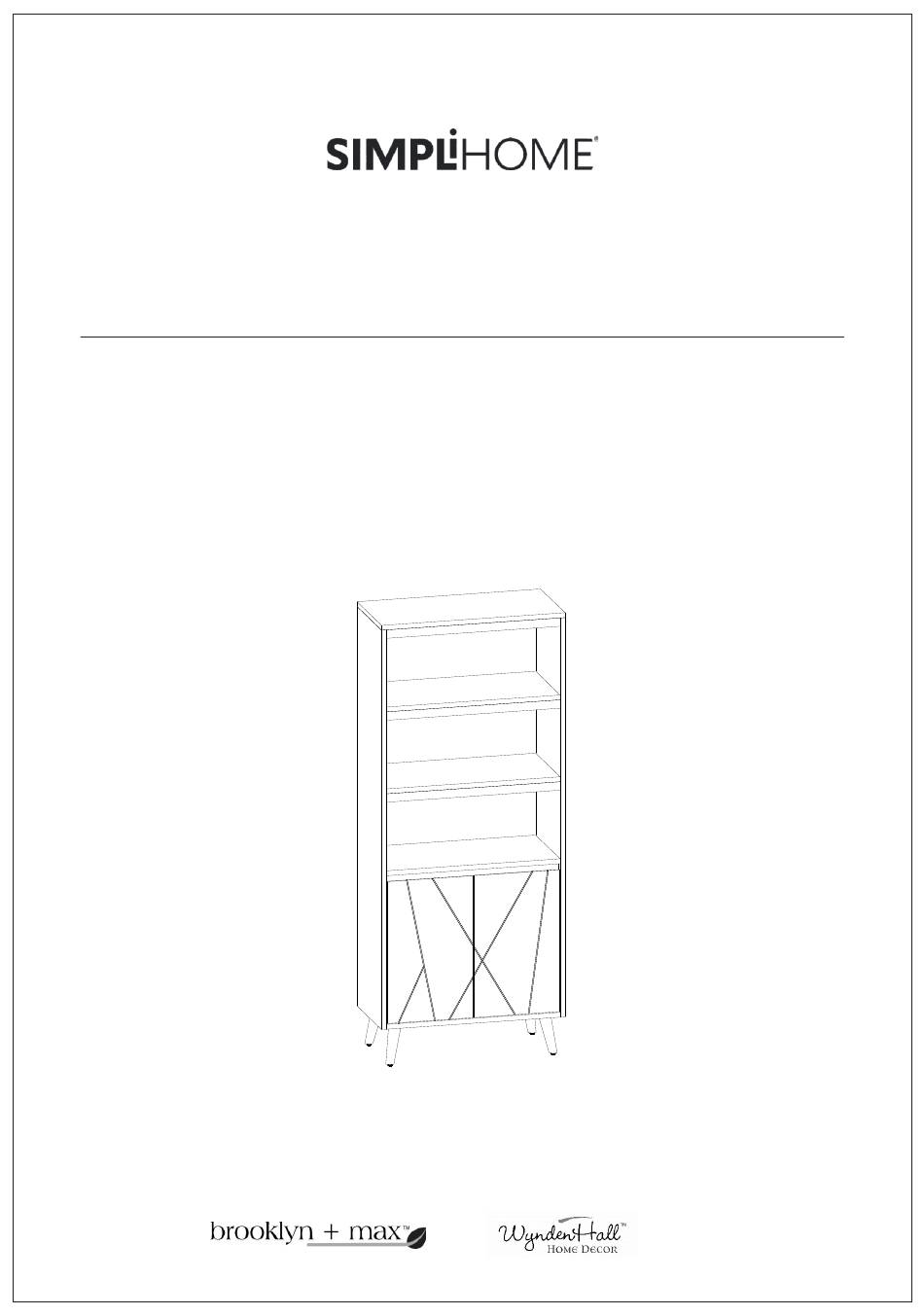

- Page 1 Jager / Bissell / Spartan Bookshelf MODEL # AXCJAG-09-N...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your entire purchase! simpli-home.com/share-images...
- Page 4 For fastest customer service Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required. Hardware package may have spare parts. WARNING: This item contains small parts which can be swallowed by children and pets. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. To protect against the humidity effect, the metal is powder coated. -
Page 7: Pre-Assembly Information
Pre-Assembly Information Model # AXCJAG-09-N Part Description LEFT SIDE PANEL RIGHT SIDE PANEL TOP PANEL QTY 1 QTY 1 QTY 1 BOTTOM SHELF ADJUSTABLE SHELF MIDDLE SHELF QTY 1 QTY 1 QTY 2 BOTTOM PANEL LEFT DOOR RIGHT DOOR QTY 1 QTY 1 QTY 1... - Page 8 Pre-Assembly Information Model # AXCJAG-09-N Part Description BACK PANEL CONNECTOR QTY 2 QTY 2 QTY 2 QTY 1 Hardware Description WASHER ALLEN KEY BOLT ALLEN KEY BOLT ALLEN KEY M6 x 35 mm M6 x 15 mm Ø 20 / Ø 8 x 1.5 mm 4 mm QTY 30 QTY 16...
- Page 9 Components - Key Diagram Model # AXCJAG-09-N...
- Page 10 Assembly Model # AXCJAG-09-N Step 1 1. Place Left Side Panel A upside down on a flat, smooth surface. 2. Align holes on Bottom Panel G with holes on Left Side Panel A . 3. Attach Bottom Panel G to Left Side Panel A using Allen Key Bolts 1 and Washers 3 . 4.
- Page 11 Assembly Model # AXCJAG-09-N Step 2 1. Align holes on Bottom Shelf E and Middle Shelf D with holes on Left Side Panel A . 2. Attach Bottom Shelf E and Middle Shelves D to Left Side Panel A using Allen Key Bolts 1 and Washers 3 .
- Page 12 Assembly Model # AXCJAG-09-N Step 3 1. Align holes on Top Panel C with holes on Left Side Panel A . 2. Attach Top Panel C to Left Side Panel A using Allen Key Bolts 1 and Washers 3 . 3.
- Page 13 Assembly Model # AXCJAG-09-N Step 4 1. Insert Back Connector M and second Back Panel L .
- Page 14 Assembly Model # AXCJAG-09-N Step 5 1. Repeat the same steps to attach Right Side Panel B . 2. Align holes on Legs J with holes on Bottom Panel G . 3. Attach Legs J to Bottom Panel G using Allen Key Bolts 2 and Washers 3 . 4.
- Page 15 Assembly Model # AXCJAG-09-N Step 6 1. Repeat the same steps to attach Legs K . 2. Insert Shelf Pins 5 in holes in cabinet.
- Page 16 Assembly Model # AXCJAG-09-N Step 7 1. Place Adjustable Shelves F in cabinet .
- Page 17 Assembly Model # AXCJAG-09-N Step 8 Click Attach Door Panels H and I using adjustable hinges on Side Panels A and B . 1. Side adjustment. To move the door towards the side panel,loosen screw 1 and To move the door away from the side panel, tighten screw 1 .
- Page 18 Assembly Model # AXCJAG-09-N Step 9 Note: Levelers on bottom of legs can be adjusted if floor is uneven.
- Page 19 Assembly Model # AXCJAG-09-N WARNING Serious or fatal crushing injuries can occur from furniture tip-over. of the furniture top over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. NOTE: The screwdriver is not included in the hardware pack.
- Page 20 FURNITURE TIP OVER RESTRAINT ASSEMBLY Model # AXCJAG-09-N Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge o f the furniture. Use the shorter screw. √ 2. Determine where Furniture is to be placed and mark location o n the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
