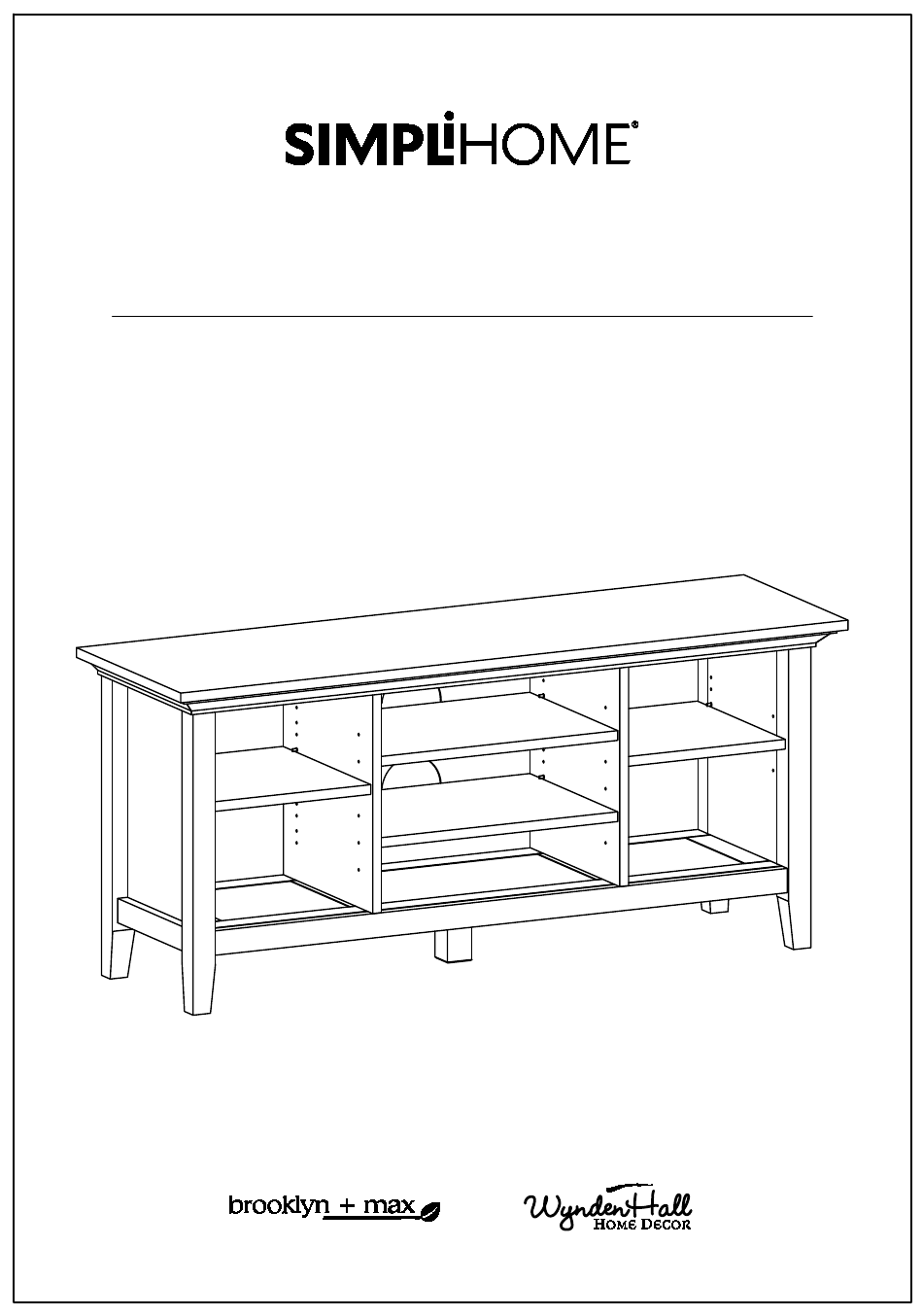

- Page 1 Redmond / Mansfield / Stanwick TV Media Stand with Open Shelves Model # AXCRED64-RNAB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 200 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. -
Page 8: Bottom Shelf
Pre-Assembly Information Model # AXCRED64-RNAB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 Warning Label CABINET SHELF CABINET SHELF TOP BACK PANEL QTY 2 QTY 2 QTY 1 SUPPORT LEG... - Page 9 Pre-Assembly Information Model # AXCRED64-RNAB Hardware Description PHILLIPS SCREW ALLEN KEY SCREW M6 X 30mm ALLEN KEY M4 X 30mm QTY 24 QTY 1 QTY 4 M4 X 25mm - QTY 2 ( 1 is extra ) M4 X 15mm - QTY 1 M4 X 25mm - QTY 1 PHILLIPS SCREW ROUND HEAD M4 X 15mm...
- Page 10 Components - Key Diagram Model # AXCRED64-RNAB...
- Page 11 Assembly Model # AXCRED64-RNAB Step 1 1. Attach Bottom Shelf C to Dividers DL , DR using six Allen Key Screws 1 . (three screws on each Divider). 2. Use Allen Key 2 to tighten Screws. Do not over-tighten.
- Page 12 Assembly Model # AXCRED64-RNAB Step 2 1. Attach Sides AL , AR to Bottom Shelf C using six Allen Key Screws 1 . (three screws on each Side). 2. Use Allen Key 2 to tighten Screws. Do not over-tighten. 3. Attach Bottom Support Leg H to Bottom Shelf C using four Phillips Screws 3 . 4.
- Page 13 Assembly Model # AXCRED64-RNAB Step 3 1. Attach Top B to Sides AL , AR and Divides DL ,DR using twelve Allen Key Screws 1 . (three screws on each Side and Divider). 2. Use Allen Key 2 to tighten. Do not over-tighten.
- Page 14 Assembly Model # AXCRED64-RNAB Step 4 Warning Label Note: 1. Attach the Back Panels G1, G2 to back frame using Phillips Screws Round Head 4 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 15 Assembly Model # AXCRED64-RNAB Step 5 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3...
- Page 16 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 6 NOTE: The screwdriver is not included in the hardware pack.
- Page 17 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
