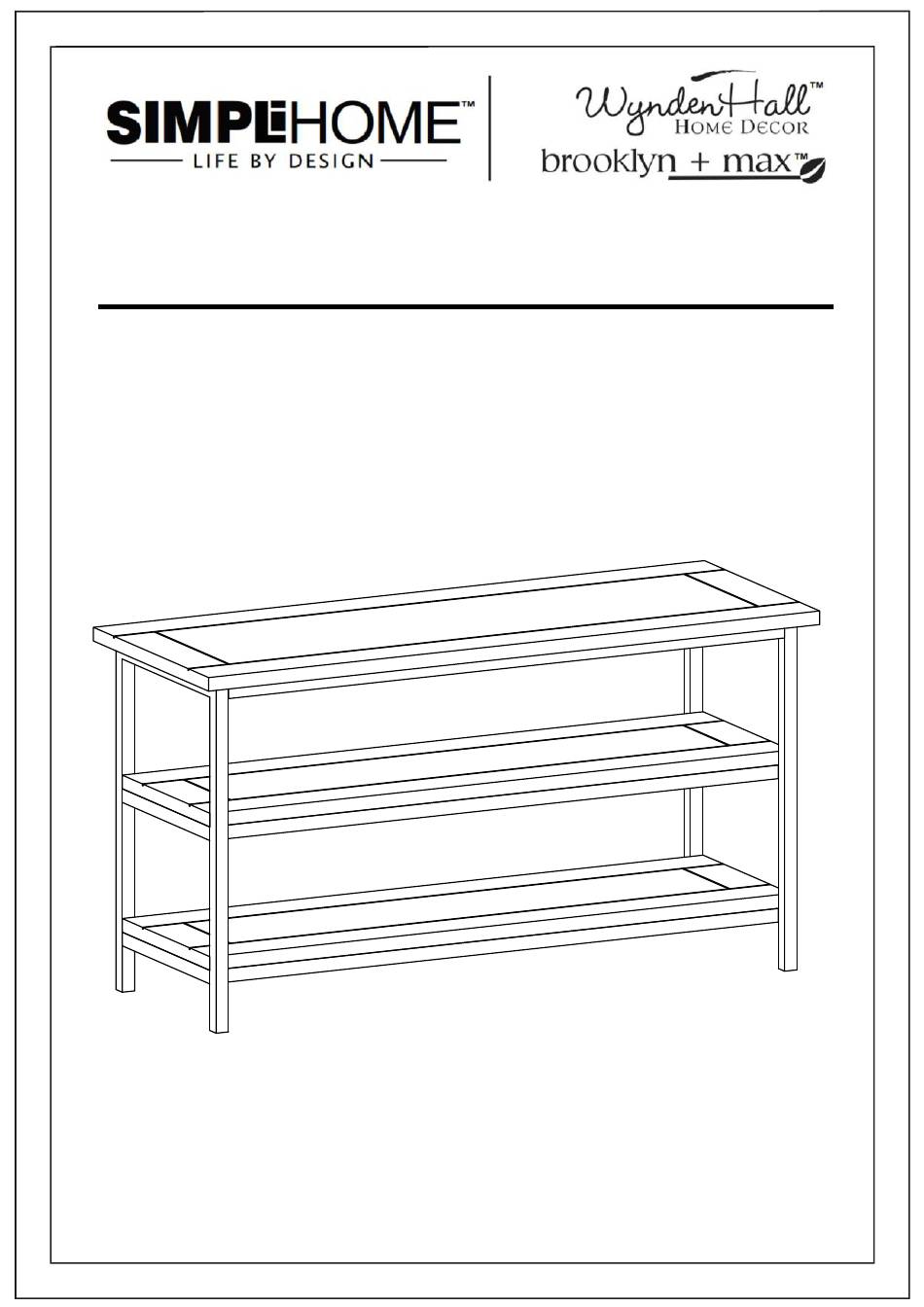

- Page 1 SKYLER / RHONDA / GLENNA TV STAND MODEL # 3AXCSKY-07 1/15...
- Page 2 Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following information ready: Model # ____________________Part Number or Letter______________________ Purchased at _________________Date of Purchase _________________________ If you wish to return the product, please contact the retailer where the...
-
Page 3: Safety Information
IMPORTANT : for Please read this manual carefully before beginning assembly of this product. keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. hardware package may have spare parts. - Page 4 Wood Furniture Care Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
-
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # 3AXCSKY-07 PARTS DESCRIPTION QTY 1 BOTTOM SHELF QTY 2 QTY 2 PRE-ASSEMBLY INFORMATION MODEL # 3AXCSKY-07 HARDWARE DESCRIPTION ALLEN KEY BOLT M6 X 18 mm ALLEN KEY QTY 1 QTY 36 WASHER Ø14 mm LOCK WASHER QTY 12 QTY 24 NEED HELP? For help with assembly or if you are missing a part,... - Page 6 COMPONENTS – KEY DIAGRAM MODEL # 3AXCSKY-07 6/15...
- Page 7 ASSEMBLY MODEL # 3AXCSKY-07 STEP 1 1. Align Leg B to Top A by matching the letters P1 to P1 . 2. Use four Allen Key Bolts 1 and four Lock Washers 3 to attach Top A and Leg B (front and back of Leg).
- Page 8 ASSEMBLY MODEL # 3AXCSKY-07 STEP 2 1. Align Leg B to Bottom Shelf C by matching the letters P3 to P3 . 2. Use four Allen Key Bolts 1 and four Lock Washers 3 to attach Bottom Shelf C and Leg B (front and back of Leg).
- Page 9 ASSEMBLY MODEL # 3AXCSKY-07 STEP 3 1. Align Leg B to Bottom Shelf C by matching the letters P5 to P5 . 2. Use four Allen Key Bolts 1 and four Lock Washers 3 to attach Bottom Shelf C and Leg B (front and back of Leg).
- Page 10 ASSEMBLY MODEL # 3AXCSKY-07 STEP 4 1. Align other Leg B to Top A and Bottom Shelf C by matching the letters P2 to P2 , P4 to P4 and P6 to P6 . 10/15...
- Page 11 ASSEMBLY MODEL # 3AXCSKY-07 STEP 5 1. Align other Leg B to Top A by matching the letters P2 to P2 . 2. Use four Allen Key Bolts 1 and four Lock Washers 3 to attach Top A and Leg B (front and back of Leg).
- Page 12 ASSEMBLY MODEL # 3AXCSKY-07 STEP 6 1. Align Leg B to Bottom Shelf C by matching the letters P4 to P4 . 2. Use four Allen Key Bolts 1 and four Lock Washers 3 to attach Bottom Shelf C and Leg B (front and back of Leg).
- Page 13 ASSEMBLY MODEL # 3AXCSKY-07 STEP 7 1. Align Leg B to Bottom Shelf C by matching the letters P6 to P6 . 2. Use four Allen Key Bolts 1 and four Lock Washers 3 to attach Bottom Shelf C and Leg B (front and back of Leg).
- Page 14 ASSEMBLY MODEL # 3AXCSKY-07 Note: Levelers on bottom of legs can be adjusted if floor is uneven. 14/15...
-
Page 15: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
