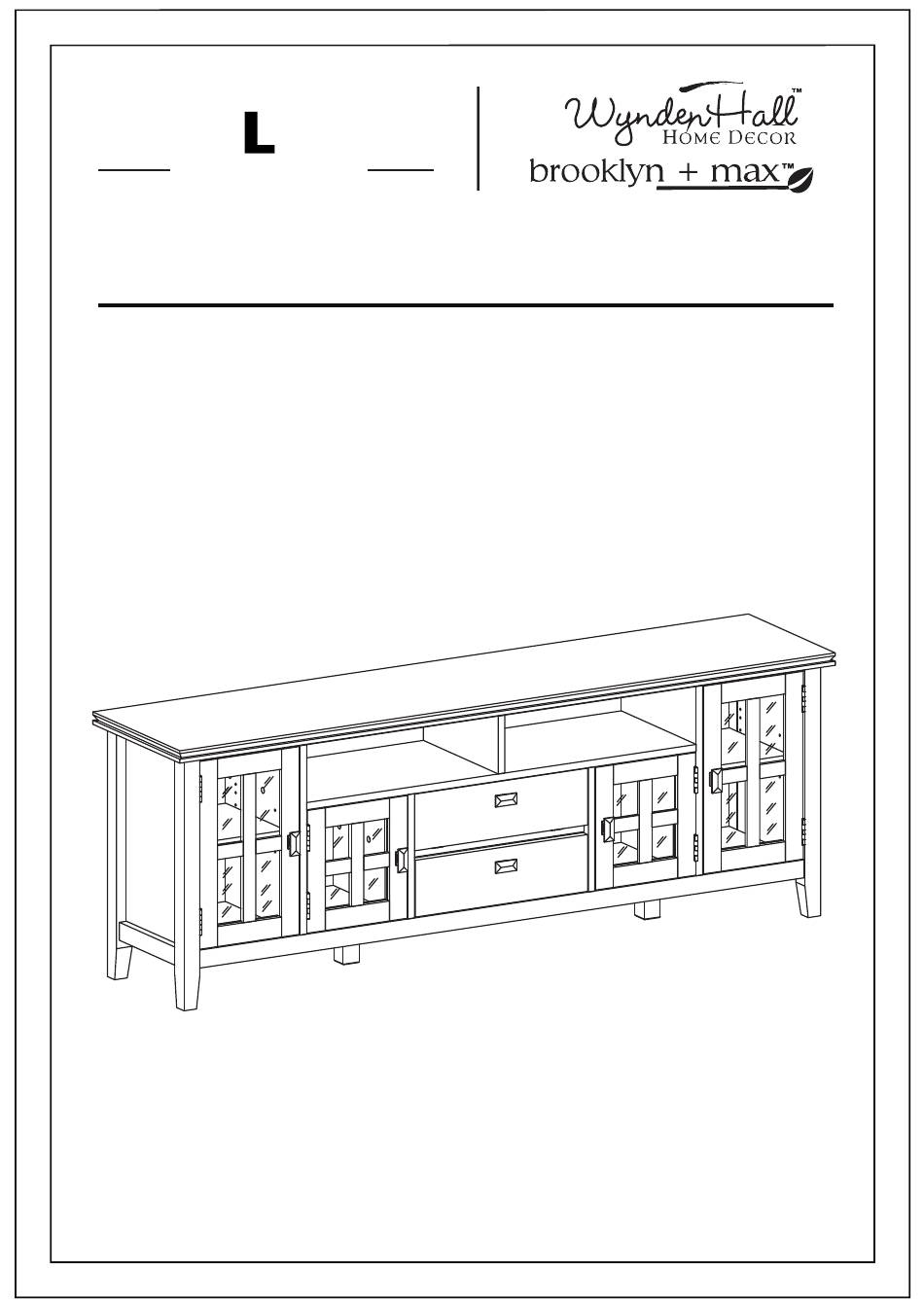

- Page 1 SIMP HOME ® L I F E B Y D E S I G N ARTISAN / HOLDEN / STRATFORD 72 INCH WIDE TV MEDIA STAND MODEL # AXCART72-TB 1/25...
- Page 2 SIMP HOME ® L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. - Page 4 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.
-
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCART72-TB PARTS DESCRIPTION BOTTOM SHELF TOP SHELF QTY 1 QTY 1 QTY 1 Warning Label LEFT BACK PANEL RIGHT BACK PANEL TOP BACK PANEL QTY 1 QTY 1 QTY 1 LEFT SIDE RIGHT SIDE BOTTOM BACK PANEL QTY 1 QTY 1 QTY 1... - Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCART72-TB PARTS DESCRIPTION LEFT MIDDLE DIVIDER LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 RIGHT MIDDLE DIVIDER CENTER SHELF TOP DIVIDER QTY 1 QTY 1 QTY 1 SHELF SMALL DOOR (L&R Same) LARGE DOOR (L&R Same) QTY 2 QTY 2 QTY 2...
- Page 7 PRE-ASSEMBLY INFORMATION MODEL # AXCART72-TB PARTS DESCRIPTION BOTTOM SUPPORT LEG FLIP DOWN DOOR DRAWER FRONT QTY 2 QTY 1 QTY 1 LEFT DRAWER SIDE DRAWER BACK RIGHT DRAWER SIDE QTY 1 QTY 1 QTY 1 DRAWER BOTTOM QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.
- Page 8 PRE-ASSEMBLY INFORMATION MODEL # AXCART72-TB HARDWARE DESCRIPTION HANDLE ALLEN KEY SCREW CAM LOCK PIN M4 X 30mm ALLEN KEY CAM LOCK M6 X 30 mm QTY 6 SETS QTY 1 QTY 43 QTY 19 SETS PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW M4 X 15 mm SHELF SUPPORT MAGNET AND PLATE...
- Page 9 COMPONENTS – KEY DIAGRAM MODEL # AXCART72-TB 9/25...
- Page 10 ASSEMBLY MODEL # AXCART72-TB STEP 1 1. A ach 4 Cam Lock Pins 2 into pre-drilled holes at the back of Drawer Front O . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides PL , PR . 3.
- Page 11 ASSEMBLY MODEL # AXCART72-TB STEP 3 1. Align Drawer Back Q with Drawer Bo om R and press firmly into slot . 2. A ach back using 2 Allen Key Screws 1 through guide holes on each Side PL , PR . 3.
- Page 12 ASSEMBLY MODEL # AXCART72-TB STEP 5 1. A ach Centre Shelf I to each Middle Divider GL , GR using 3 Allen Key Screws 1 . 2. Use Allen Key 3 to ghten screws. Do not over- ghten. 12/25...
- Page 13 ASSEMBLY MODEL # AXCART72-TB STEP 6 NOTE: The screwdriver is not included in the hardware pack. 1. A ach 6 Cam Lock Pins 2 into pre-drilled holes at the bo om of Top Shelf C . 2. Align Cam Lock Pins with guide holes on Middle Divider GL , GR . 3.
- Page 14 ASSEMBLY MODEL # AXCART72-TB STEP 7 1. A ach Top Shelf C to each Divider FL , FR using 3 Allen Key Screws 1 . 2. Use Allen Key 3 to ghten screws. Do not over- ghten. STEP 8 1. A ach Bo om Shelf B to Dividers FL , FR & GL , GR using 12 Allen Key Screws 1 (3 Allen Key Screws / each Divider ).
- Page 15 ASSEMBLY MODEL # AXCART72-TB STEP 9 NOTE: The screwdriver is not included in the hardware pack. 1. A ach 3 Cam Lock Pins 2 into pre-drilled holes on each Side EL , ER . 2. Align Cam Lock Pins with guide holes and a ach Bo om Shelf B . 3.
- Page 16 ASSEMBLY MODEL # AXCART72-TB STEP 10 1. A ach 3 Cam Lock Pins 2 into pre-drilled holes at the bo om of Top A ( at center ) . 2. Align Cam Lock Pins with guide holes on Top Divider H . 3.
- Page 17 ASSEMBLY MODEL # AXCART72-TB STEP 11 Note: NOTE: The screwdriver is not included in the hardware pack. The back of the tv frame does not have pre-drilled holes to a ach the back panels. Warning Label 1. Use Phillips screws Round Head 5 to a ach Back Panels DL , DR , D1 , D2 through guild holes from Back Panels to the back of Cabinet.
- Page 18 ASSEMBLY MODEL # AXCART72-TB STEP 12 First Step Last Step ( after adjust the door ) 1. Attach hinges on Large Doors K to Sides EL , ER and attach hinges on Small Doors L to Dividers FL , FR using Phillips Screws 9 into pre-drill holes: - Using Phillips screwdriver to attach Screws 9 at middle hole of hinges for both top &...
- Page 19 ASSEMBLY MODEL # AXCART72-TB STEP 13 1. A ach 4 Magnet Plates 6 to bo om corner of Doors K and Doors L using Phillips Screws 10 into pre-drilled holes. 2. A ach 4 Magnets 6 using Phillips Screws 10 into pre-drilled holes on Bo om Shelf B . 3.
- Page 20 ASSEMBLY MODEL # AXCART72-TB STEP 14 1. Use a Phillips screwdriver to a ach Handles 4 to Doors K , L & Flip Down Door N through guide holes. 20/25...
- Page 21 ASSEMBLY MODEL # AXCART72-TB STEP 15 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Attach 4 Shelf Supports 7 for each Shelf J in desired location . 2. 2 Shelf Supports 7 may be used on back top of each Shelf J as a tipping restraint. 21/25...
- Page 22 ASSEMBLY MODEL # AXCART72-TB STEP 16 1. Insert assembled drawers into glides on assembled TV 22/25...
- Page 23 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP 17 NOTE: The screwdriver is not included in the hardware pack.
- Page 24 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
-
Page 25: Warranty
SIMP HOME ® L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
