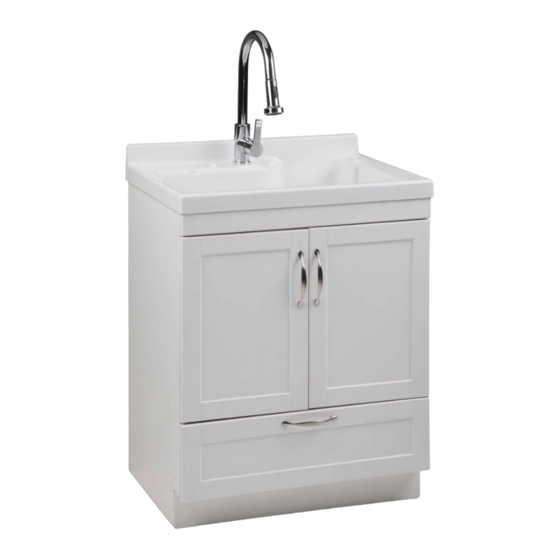

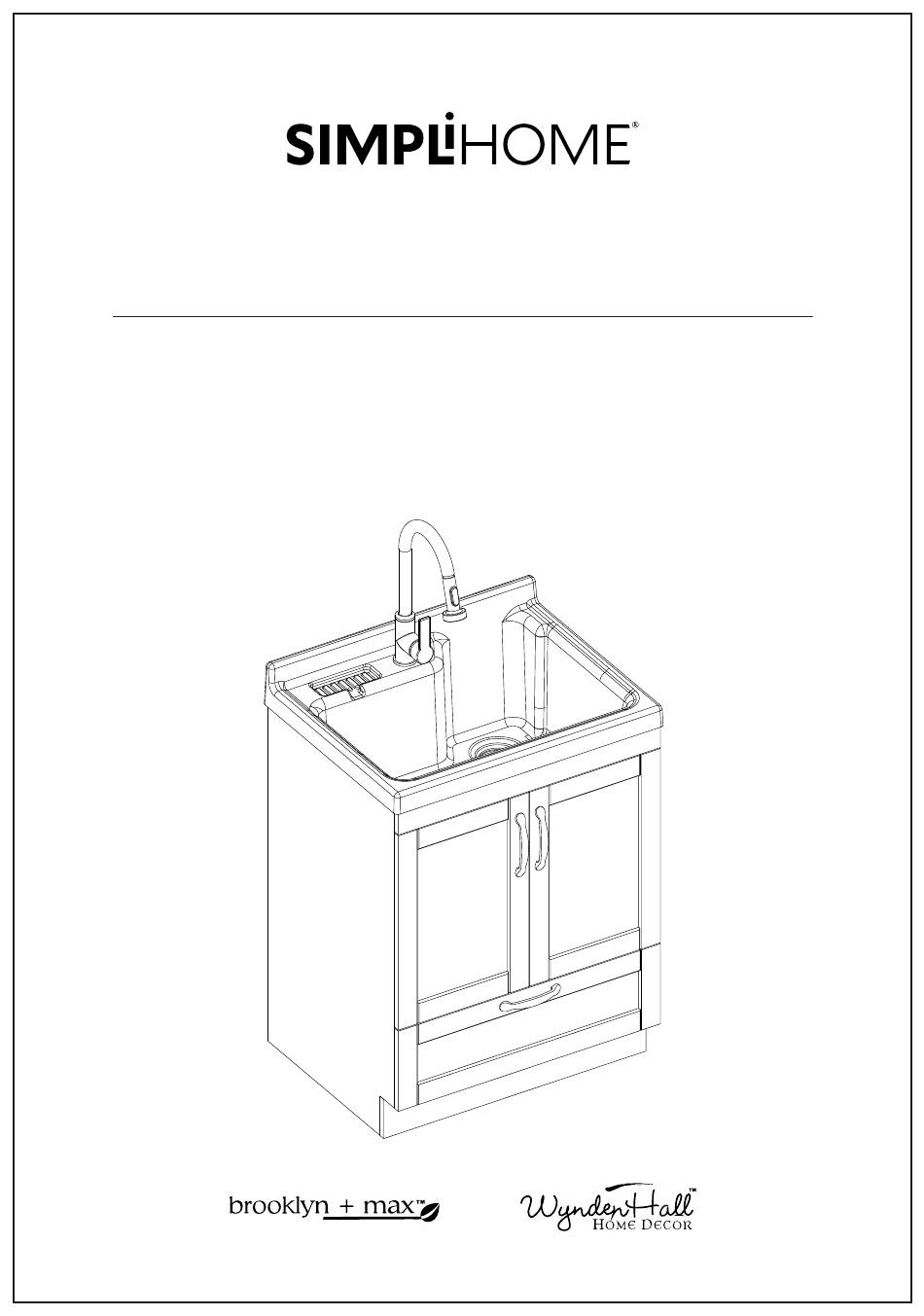

- Page 1 Maile / Janine / Cisco 28 inch Laundry Cabinet with Faucet and ABS Sink Model # AXCLDYMAI-AB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information This furniture is designed for indoor use. Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required. -
Page 6: Front Bottom Panel
Pre-Assembly Information Model # AXCLDYMAI-AB Cabinet Parts BOTTOM PANEL RIGHT SIDE PANEL QTY 2 QTY 1 TOP PANEL BACK TOP AND BOTTOM PANEL QTY 1 QTY 2 BACK MIDDLE PANEL LEFT SIDE PANEL QTY 1 QTY 1 FRONT BOTTOM PANEL FRONT TOP PANEL QTY 1 QTY 1... - Page 7 Pre-Assembly Information Model # AXCLDYMAI-AB Cabinet Parts LEFT DOOR RIGHT DOOR QTY 1 QTY 1 DRAWER FRONT ABS SINK QTY 1 QTY 1 DRAWER BACK DRAWER SIDE LEFT QTY 1 QTY 1 DRAWER SIDE RIGHT DRAWER BOTTOM QTY 1 QTY 1...
- Page 8 Pre-Assembly Information Model # AXCLDYMAI-AB Drain Parts DRAIN PLUG ASSEMBLY DRAIN BOWL ASSEMBLY DRAIN WASHER BLACK QTY 1 QTY 1 QTY 1 THREAD WASHER PIPE WASHER COUPLING BLACK QTY 1 QTY 1 QTY 1 STRAIGHT DRAIN PIPE BLACK COUPLING BLACK PIPE WASHER WHITE QTY 1 QTY 2...
- Page 9 Pre-Assembly Information Model # AXCLDYMAI-AB Faucet Parts FAUCET BODY FAUCET WASHER RUBBER FAUCET WASHER STEEL QTY 1 QTY 1 QTY 1 BRASS NUT ASSEMBLY FAUCET SEALING RING WEIGHT BLOCK QTY 1 QTY 1 QTY 1...
- Page 10 Pre-Assembly Information Model # AXCLDYMAI-AB Hardware Parts CAM LOCK CAM PIN WOOD DOWEL QTY 27 QTY 27 QTY 21 SELF-TAPPING SCREW PHILLIPS SCREW HANDLE M4 x 14 M4 x 25 M4 x 40 M4 x 23 QTY 29 QTY 4 QTY 9 QTY 3 QTY 6...
- Page 11 Components - Key Diagram Model # AXCLDYMAI-AB...
- Page 12 Assembly Model # AXCLDYMAI-AB Step 1 Screw into Left Side Panel into Use this hole for the two pre-drilled small holes first screw to go through BACK BACK FRONT FRONT Use this hole for the screw to go through Screw into Right Side Panel into two pre-drilled small holes first BACK FRONT...
- Page 13 Assembly Model # AXCLDYMAI-AB Step 2 the small screwdriver is included in the hardware pack Insert Wood Dowels (III) into the pre-drilled hole of Bottom Panel (A), Back Bottom Panel (C), Back Top Panel (C), Back Middle Panel (E) and Top Panel (D). Insert Cam Locks (I) into the pre-drilled hole of Bottom Panel (A), Back Bottom Panel (C), Back Top Panel (C), Back Middle Panel (E) and Top Panel (D).
- Page 14 Assembly Model # AXCLDYMAI-AB Step 3 the small screwdriver is included in the hardware pack Attach the Left Panel (F) with Cam Pins (II) and Dowels into the pre-drilled holes. Insert Cam Locks (I) into the pre-drilled hole of Bottom Panel (A), Back Bottom Panel (C), Back Top Panel (C), Back Middle Panel (E) and Top Panel (D).
- Page 15 Assembly Model # AXCLDYMAI-AB Step 4 Screw Cam Pins (II) into the pre-drilled small holes on Kick Plate Panel (G). Insert Cam Pins (II) into the pre-drilled holes on both Side Panels. Insert Cam Locks (I) into the pre-drilled holes on both Side Panels. Tighten with the Screwdriver.
- Page 16 Assembly Model # AXCLDYMAI-AB Step 5 Place the Drawer Bottom (P) into the slot of Drawer Front (L) and Drawer Back (M). Ensure the Drawer Bottom is in the slot of the Drawer Front (L) and Drawer Back (M).
- Page 17 Assembly Model # AXCLDYMAI-AB Step 6 M 4X40 Insert Dowels (III) into the holes of Drawer Front (L) and Drawer Back (M). Attach Drawer Left (N) and Drawer Right (O) to Drawer Front (L) and Drawer Back (M). Ensure Drawer Bottom (P) is in the slot of Drawer Left (N) and Drawer Right (O). Attach Drawer Left (N) and Drawer Right (O) with Self-Tapping Screws (IV) M4 x 40.
- Page 18 Assembly Model # AXCLDYMAI-AB Step 7 BACK FRONT Screw into Right Drawer Side into two pre-drilled small holes first FRONT the hole that the screw goes through Attach the Drawer Slide Rails (VIII) to the Left Drawer Side (N) and Right Drawer Side (O) using Self-Tapping Screw (IV) M4 x 14 into the small holes.
- Page 19 Assembly Model # AXCLDYMAI-AB Step 8 Place the Drawer into the cabinet.
- Page 20 Assembly Model # AXCLDYMAI-AB Step 9 Use the Screwdriver to attach the Right Door hinges to Right Side Panel (B) using Self-Tapping Screws (IV) M4 x 14. Use the Screwdriver to attach the Left Door hinges to Left Side Panel (F) using Self-Tapping Screws (IV) M4 x 14.
- Page 21 Assembly Model # AXCLDYMAI-AB Step 10 Use the Screwdriver to attach the Handle (VI) with Philips Screws (V) M4 x 23.
- Page 22 Assembly Model # AXCLDYMAI-AB Step 11 Pierce holes in the wall and insert Wall Anchors (IX) into the holes. Insert the Screw (IX) through Panel (C) and then insert it into the Wall Anchor to lock in place.
- Page 23 Assembly Model # AXCLDYMAI-AB Step 12 Place a Rubber Washer (BB) onto the end of the Faucet (AA) and insert the faucet through the top of the Sink (K). From underneath the Sink (K), secure the Faucet (AA) to the Sink (K) using a Rubber Washer (BB), Steel Washer (CC) and Brass Nut Assembly (DD).
- Page 24 Assembly Model # AXCLDYMAI-AB Step 13 Attach the Weight Block (FF) to the faucet hose and screw in place to secure.
- Page 25 Assembly Model # AXCLDYMAI-AB Step 14 Place the Sink (K) with the attached Faucet (AA) on top of the cabinet.
- Page 26 Assembly Model # AXCLDYMAI-AB Step 15 Put the Drain Washer (3) on the top of the drain opening in the Sink (K). Put the Drain Bowl (2) on the Drain Washer (3) through the drain opening. From underneath the sink fasten the Threaded Washer (4) onto the Drain Bowl (2) and tighten. Insert the Drain Plug (1) into the Drain Bowl (2).
- Page 27 Assembly Model # AXCLDYMAI-AB Step 16 Fasten the nuts of the hoses (not included in package) to the nut ends of the faucet body. Fasten the nuts of the hoses (not included in package) to the water outlet: o Red striped hose to Hot water supply o Blue striped hose to Cold water supply Ensure to only tighten the nut and not twist the supply hose.
- Page 28 Assembly Model # AXCLDYMAI-AB Step 17 Put a Pipe Washer (5) onto the Straight Drain Pipe (7). Connect the Straight Drain Pipe (7) to the drain and fasten the Coupling (6). Put the Coupling (8) into the Straight Drain Pipe (7) and put a Pipe Washer (9) into the Straight Drain Pipe (7).
- Page 29 Assembly Model # AXCLDYMAI-AB Step 18 Use the Screwdriver to re-align or adjust the hinges that attach the doors to the cabinet.
