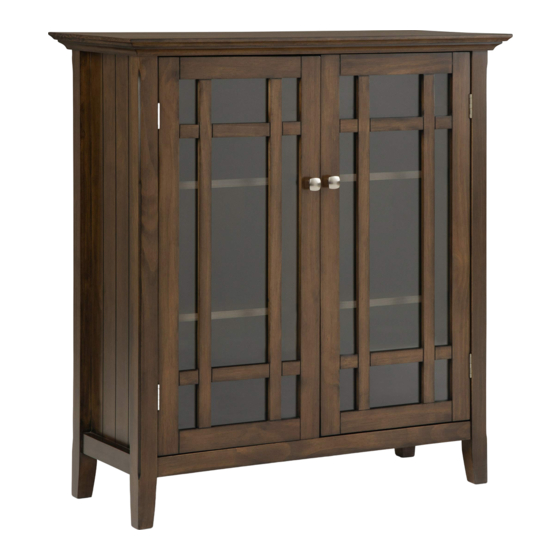

- Page 1 All manuals and user guides at all-guidesbox.com SIMP HOME L I F E B Y D E S I G N BEDFORD / FREEMONT / HAMPTON LOW STORAGE MEDIA CABINET MODEL # 3AXCBED-03 1/16...
- Page 2 All manuals and user guides at all-guidesbox.com SIMP HOME L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext.
- Page 3 All manuals and user guides at all-guidesbox.com 3/16...
-
Page 4: Care And Maintenance
All manuals and user guides at all-guidesbox.com IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. -
Page 5: Pre-Assembly Information
All manuals and user guides at all-guidesbox.com PRE-ASSEMBLY INFORMATION MODEL # 3AXCBED-03 PARTS DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 CABINET SHELF BOTTOM SHELF CENTRE SUPPORT QTY 2 QTY 1 QTY 1 Warning Label DOOR (L&R Same) LEFT BACK PANEL RIGHT BACK PANEL QTY 2... -
Page 6: Hardware Description
All manuals and user guides at all-guidesbox.com PRE-ASSEMBLY INFORMATION MODEL # 3AXCBED-03 HARDWARE DESCRIPTION CAM LOCK PIN ALLEN KEY SCREW CAM LOCK ALLEN KEY M6 X 30 mm QTY 6 SETS QTY 1 QTY 6 PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW M4 X 15 mm M3 X 12 mm... - Page 7 All manuals and user guides at all-guidesbox.com COMPONENTS – KEY DIAGRAM MODEL # 3AXCBED-03 7/16...
- Page 8 All manuals and user guides at all-guidesbox.com ASSEMBLY MODEL # 3AXCBED-03 STEP 1 NOTE: The screwdriver is not included in the hardware pack. 1. Insert 4 Dowels 10 into guide holes on Bottom Shelf D . 2. Use rubber mallet to tap Dowels 10 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 9 All manuals and user guides at all-guidesbox.com ASSEMBLY MODEL # 3AXCBED-03 STEP 2 1. Attach Centre Support E to Bottom Shelf D using Allen Key Screws 1 through guide holes. 2. Use Allen Key 3 to tighten. Do not over-tighten. 9/16...
- Page 10 All manuals and user guides at all-guidesbox.com ASSEMBLY MODEL # 3AXCBED-03 STEP 3 1. Attach Cam Lock Pins 2 into pre-drilled at the bottom of Top A . 2. Align pre-drilled holes on bottom of Top A with guide holes on Sides BL , BR and align and insert Cam Lock Pins 2 into guide holes in Centre Support E .
- Page 11 All manuals and user guides at all-guidesbox.com ASSEMBLY MODEL # 3AXCBED-03 Triangle ruler STEP 4 NOTE: The triangle ruler is not included in the hardware pack. Adjust the cabinet frame before assembling the back panels. STEP 5 Warning Label 1. Attach Back Panels GL , GR to back of cabinet using Phillips Screws Round Head 6 through guide holes 2.
- Page 12 All manuals and user guides at all-guidesbox.com ASSEMBLY MODEL # 3AXCBED-03 Last Step ( after adjust the door ) First Step STEP 5 1. Attach hinges on Doors F to Sides BL , BR using Phillips Screws 4 into pre-drill holes: - Using Phillips screwdriver to attach Screws 4 at middle hole of hinges for both top &...
- Page 13 All manuals and user guides at all-guidesbox.com ASSEMBLY MODEL # 3AXCBED-03 STEP 6 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Attach 4 Shelf Supports 9 for each Shelf C in desired location. 2.
- Page 14 All manuals and user guides at all-guidesbox.com FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. NOTE: The screwdriver is not STEP 7 included in the hardware pack.
- Page 15 All manuals and user guides at all-guidesbox.com FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
-
Page 16: Warranty
All manuals and user guides at all-guidesbox.com SIMP HOME L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
