DILLON / JESS / ASIA

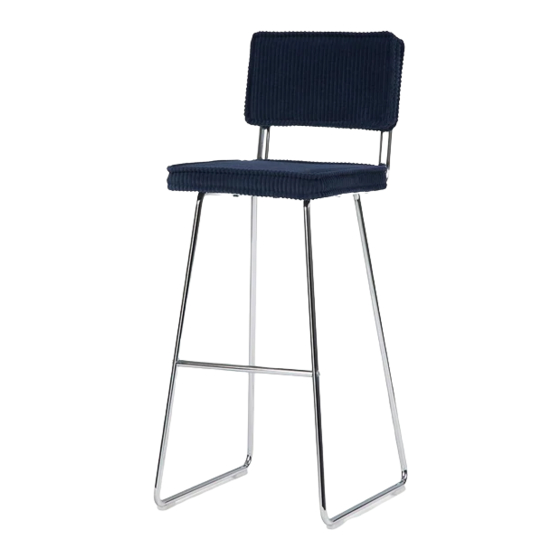

BAR STOOL
MODEL # AXCDIL-BU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WyndenHall Brooklyn + Max AXCDIL-BU and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME WyndenHall Brooklyn + Max AXCDIL-BU

Summary of Contents for SIMPLIHOME WyndenHall Brooklyn + Max AXCDIL-BU

  • Page 1 DILLON / JESS / ASIA BAR STOOL MODEL # AXCDIL-BU...
  • Page 2 Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST or go to www.simpli-home.com/parts request...

  • Page 3: Safety Information

    IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.

  • Page 4: Pre-Assembly Information

    PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION SEAT BACK BACK TUBE QTY 1 QTY 1 QTY 2 BASE FOOT REST QTY 2 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST)

  • Page 5: Hardware Description

    PRE-ASSEMBLY INFORMATION HARDWARE DESCRIPTION ROUND HEAD BOLT FLAT HEAD BOLT M6 X 30mm M6 X 30mm QTY 12 QTY 2 FLAT HEAD BOLT ALLEN KEY M6 X 20mm QTY 2 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.
  • Page 6 ASSEMBLY STEP 1 Combine the left and right parts of Base (D) with Flat Head Bolts (3). Use Allen Key (4) to tighten. Do not fully tighten.
  • Page 7 ASSEMBLY STEP 2 Attach the Foot Rest (E) to the Base (D) with Flat Head Bolt (2). Use Allen Key (4) to tighten.
  • Page 8 ASSEMBLY STEP 3 Adjust the Base (D) to ensure it is level. Use Allen Key (4) to fully tighten all Bolts.
  • Page 9 ASSEMBLY STEP 4 Attach the Back (A) and Seat (B) to Back Tubes (C) using four Round Head Bolts (1) on each Back Tube (C). Use Allen Key (4) to tighten.
  • Page 10 ASSEMBLY STEP 5 Place the assembled Seat upside down on a flat smooth surface. Attach the Base (D) to the bottom of Seat (B) using four Round Head Bolts (1). Use Allen Key (4) to tighten.
  • Page 11 ASSEMBLY STEP 6 Turn Bar Stool right side up.

  • Page 12: Warranty

    WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
