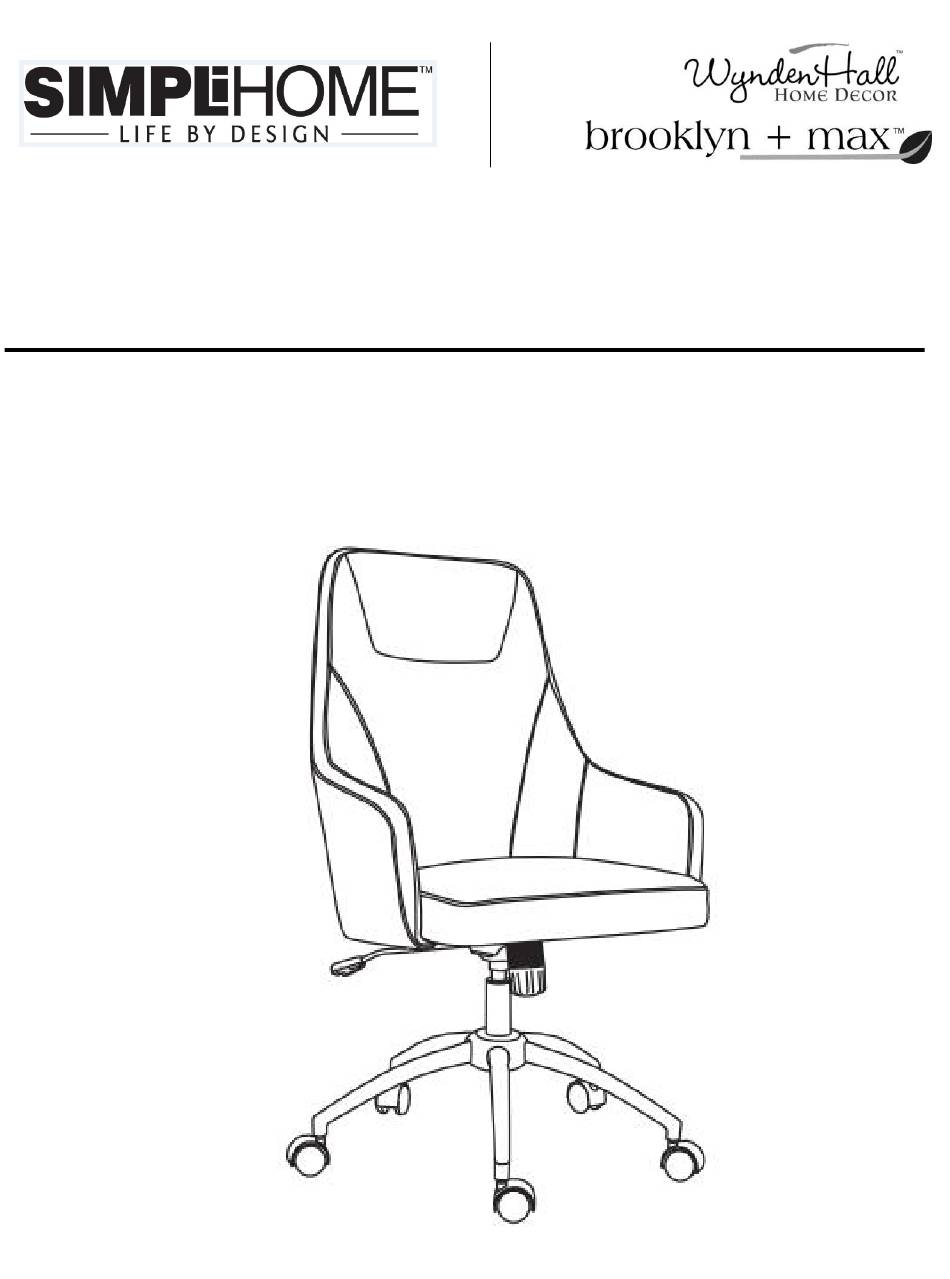

- Page 1 JULES / ZANE / DENIS LARGE SWIVEL OFFICE CHAIR MODEL # AXCOCHR-04...
- Page 2 Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST or go to www.simpli-home.com/parts request...
-
Page 3: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION CHAIR MECHANISM GAS LIFT POST QTY 1 QTY 1 QTY 1 BASE CASTOR QTY 1 QTY 5 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST) -
Page 5: Hardware Description
PRE-ASSEMBLY INFORMATION HARDWARE DESCRIPTION ALLEN KEY SCREW ALLEN KEY SCREW M6 X 22 mm M6 x 25 mm QTY 2 QTY 2 WASHER M6 ALLEN KEY QTY 4 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. - Page 6 ASSEMBLY STEP 1 Insert the Castors (E) into the slots on the bottom of the Base (D). Insert the Gas Lift Post (C) into the center of the Base (D).
- Page 7 ASSEMBLY STEP 2 Align Mechanism (B) with the pre-drilled holes under the Chair (A). Attach Mechanism (B) to the Chair (A) with Screws (2) and Screws (1) with Washers (3). Follow diagram above for placement of Screws. Use Allen Key (4) to tighten.
- Page 8 ASSEMBLY STEP 3 Align the hole in the Mechanism (B) with the Gas Lift Post (C). Press the seat cushion down so that it rests firmly.
- Page 9 ASSEMBLY STEP 4 Tension Knob The tension knob is located under the seat cushion. Turn the knob clockwise to tighten the tilt mechanism. Turn the knob counter-clockwise to loosen the tilt mechanism.
- Page 10 ASSEMBLY STEP 5 Handle To raise the seat, lift your weight off the seat and reach underneath the right side of the Chair to lift the handle up slowly with a clockwise twisting motion to allow the Chair to rise to desired height. To lower seat, lift the handle slowly with a clockwise twisting motion while seated.
- Page 11 ASSEMBLY STEP 6 Handle To tilt the Chair while seated: Pull the handle outward to unlock. Push the handle inward to lock into position.
-
Page 12: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
