12.4 Connecting the Camera

Connect your Vandal Proof IP Dome to power, network and other cables.

12.4.1 Wire Definition

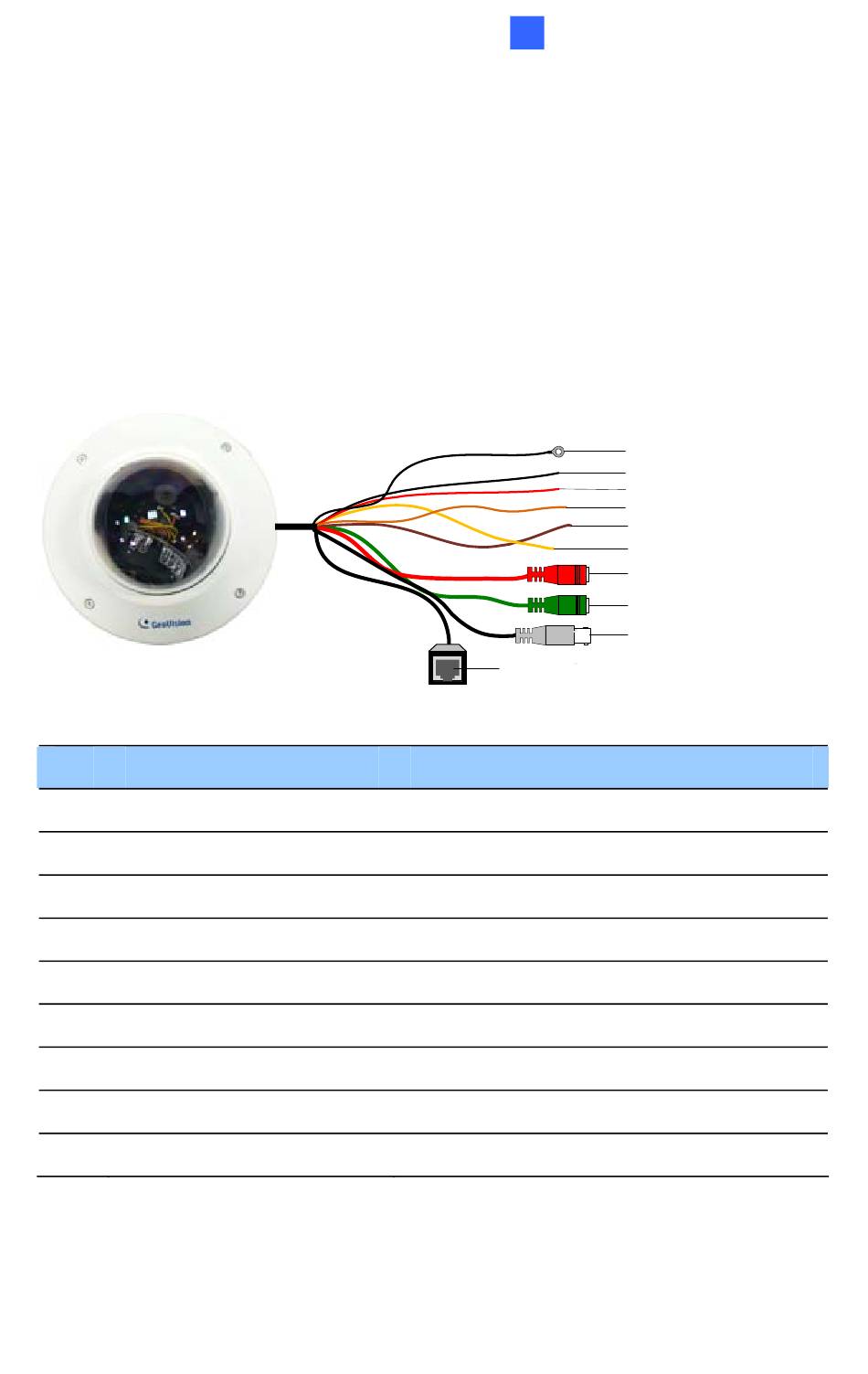

The cables for Vandal Proof IP Dome are illustrated and defined below.
No.
Wire Color
1
Black (thick)
2
Black (thin)
3
Red
4
Orange
5
Brown
6
Yellow
7
Red RCA
8
Green RCA
9
Black BNC
12
Vandal Proof IP Dome (Part I)
Ethernet (PoE)
Definition
Shielding Ground
DC 12V- / AC 24V-
DC 12V+ / AC 24V+
Digital In
Digital out
Ground
Audio in
Audio out
TV out
Shielding ground
DC 12V- / AC 24V-
DC 12V+ / AC 24V+
Digital in (oragne)
Digital out (brown)
Ground (yellow)
Audio in (red)
Audio out (green)
TV out
127
