- Page 1 FMB204 Advanced waterproof tracker Quick Manual v1.4...
-
Page 2: Table Of Contents
CONTENT Know your device ........................................3 Pinout ...........................................4 WIRING SCHEME .........................................5 Set up your device ......................................6 PC Connection (Windows) ....................................7 How to install USB drivers (Windows) ................................7 Configuration........................................8 Quick SMS configuration ....................................10 Mounting recommendations..................................12 Basic characteristics ......................................13 LED indications ......................................... 13 Electrical characteristics .................................... -
Page 3: Know Your Device

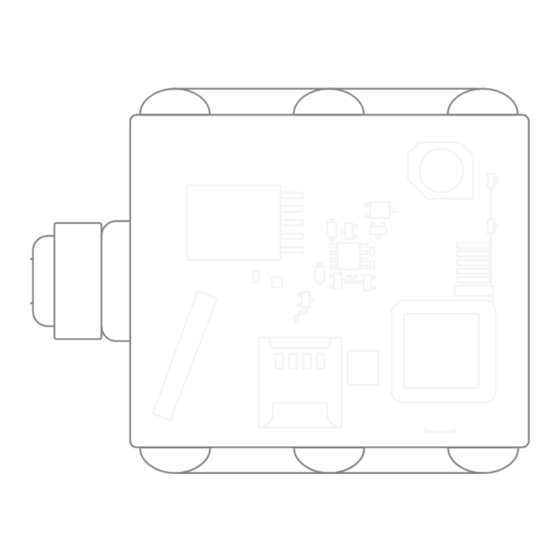

KNOW YOUR DEVICE TOP VIEW TOP VIEW (WITHOUT COVER) POWER NAVIGATE CABLE STATUS BATTERY MICRO-SIM MICRO-USB SOCKET SLOT Quick Manual v1.4 // FMB204... -
Page 4: Pinout
PINOUT +6...30 V DC PIN NAME DESCRIPTION VCC (6-30) V Power supply (6-30) V DC (+). GND (-) Ground pin. (6-30) V DC (-) DIN1 DIN 1 Digital input, channel 1. DIN2 DIN 2 Digital input, channel 2. DIN3 DIN 3 Digital input, channel 3. -
Page 5: Wiring Scheme
WIRING SCHEME +6...30 V DC IGNITION DETECTION ALARM BUTTON LED LIGHTS BUZZER DIN1 DIN2 DIN3 AIN1 RELAY DOUT1 MULTIPLE DOUT2 ANALOG TEMPERATURE 1WIRE DATA LLS SENSOR IBUTTON SENSORS 1WIRE POWER POWER SUPPLY STARTER FUEL GAUGE 6 - 30V DC Quick Manual v1.4 // FMB204... -
Page 6: Set Up Your Device
Insert Micro-SIM card as shown with are located on the bottom of the device. PIN request disabled or read our Wiki how to enter it later in Teltonika Configurator . Make sure that Micro- SIM card cut-off corner is pointing forward to slot. -
Page 7: Pc Connection (Windows)
Bluetooth. Choose your device named – “FMB204_last_7_imei_digits”, without LE in the end. Enter default password 5555, press Connect and then select Done. You are now ready to use the device on your computer. wiki.teltonika-gps.com/view/FMB204_LED_status 1 Page 7, "How to install USB drivers"... -
Page 8: Configuration
CONFIGURATION At first FMB204 device will have default factory settings set. These settings should be changed according to the users needs. Main configuration can be performed via Teltonika Configurator software. Get the latest Configurator version from here . Configurator operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed. - Page 9 Data Acquisition – where data acquiring parameters can be configured. More details about FMB204 configuration using Configurator can be found in our Wiki wiki.teltonika-gps.com/view/FMB204_Status_info wiki.teltonika-gps.com/view/FMB204_Status_info#GNSS_Info wiki.teltonika-gps.com/view/FMB204_Status_info#GSM_Info wiki.teltonika-gps.com/view/FMB204_Status_info#I.2FO_Info wiki.teltonika-gps.com/view/FMB204_Status_info#Maintenance wiki.teltonika-gps.com/index.php?title=FMB204_GPRS_settings After connection to Configurator Status window will be wiki.teltonika-gps.com/index.php?title=FMB204_Data_acquisition_...
-
Page 10: Quick Sms Configuration
QUICK SMS CONFIGURATION Default configuration has optimal parameters present to ensure best performance of track quality and data usage. Quickly set up your device by sending this SMS command to it: « setparam 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0» Note: Before SMS text, two space symbols should be inserted. GPRS SETTINGS: 2001 –... - Page 11 After successful SMS configuration, FMB204 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator SMS parameters wiki.teltonika-gps.com/view/Teltonika_Configurator wiki.teltonika-gps.com/view/Template:FMB_Device_Family_Parameter_list Quick Manual v1.4 // FMB204...
-
Page 12: Mounting Recommendations
MOUNTING RECOMMENDATIONS CONNECTING WIRES • Wires should be fastened to the other wires or non-moving parts. Try to avoid heat emitting and moving objects near the wires. • The connections should not be seen very clearly. If factory isolation was removed while connecting wires, it should be applied again. -
Page 13: Basic Characteristics
LED INDICATIONS BASIC CHARACTERISTICS NAVIGATION LED INDICATIONS MODULE BEHAVIOUR MEANING Name Teltonika TM2500 Permanently Technology GSM, GPRS, GNSS, BLUETOOTH GNSS signal is not received switched on GNSS Blinking every Normal mode, GNSS is working second GPS, GLONASS, GALILEO, BEIDOU, GNSS... - Page 14 72,5 x 73 x 27,3 mm (L x W x H) Temperature and Humidity Supported sensor Headset OBDII dongle Weight 205 g peripherals Inateck Barcode Scanner OPERATING ENVIRONMENT wiki.teltonika-gps.com/view/FMB204_Sleep_modes 1 Operating teltonika-gps.com/products/accessories 2 temperature -40 °C to +85 °C wiki.teltonika-gps.com/view/How_to_connect_Bluetooth_Hands_Free_ (without battery) adapter_to_FMB_device wiki.teltonika-gps.com/view/How_to_connect_OBD_II_Bluetooth_ 4 ...
- Page 15 Battery Charging FOTA Web , FOTA, Teltonika 0 °C to +45 °C temperature Configuration and Configurator (USB, Bluetooth), firmware update FMBT mobile application Battery Discharge (Configuration) -20 °C to +60 °C temperature Configuration, Events, DOUT -20 °C to +60 °C for 1 month...
-
Page 16: Electrical Characteristics
ELECTRICAL CHARACTERISTIC VALUE DESCRIPTION CHARACTERISTICS SUPPLY VOLTAGE MIN. TYP. MAX. UNIT Input Voltage threshold (DIN1) CHARACTERISTIC VALUE DESCRIPTION Input Voltage threshold (DIN2, DIN3) SUPPLY VOLTAGE MIN. TYP. MAX. UNIT ANALOG INPUT Supply Voltage (Recommended Input voltage Operating Conditions) (Recommended Operating Conditions), DIGITAL OUTPUT (OPEN DRAIN GRADE) Range 1 Drain current (Digital... -
Page 17: Safety Information
SAFETY INFORMATION Do not disassemble the device. If the device is damaged, the power supply cables are not isolated or the isolation is damaged, DO NOT touch the device before unplugging the power supply This message contains information on how to operate FMB204 All wireless data transferring devices produce safely. -
Page 18: Certification And Approvals
User‘s Manual before your start using the electronic and electric equipment should not be device. Full User‘s Manual version can be found in mixed with general household waste. Wiki 1 wiki.teltonika-gps.com/index.php?title=FMB204 E-Mark and e-Mark are the European conformity marks issued by the transport sector, indicating Hereby, Teltonika... -
Page 19: Warranty
Warranty does not apply to any consequential damages. • Warranty is not applicable for supplementary product equipment (i. e. PSU, power cables, antennas) unless the accessory is defective on arrival. • More information on what is RMA wiki.teltonika-gps.com/view/RMA_guidelines Quick Manual v1.4 // FMB204...
