Summary of Contents for Teltonika FMB208
- Page 1 FMB208 Quick Manual v1.0 Waterproof tracker for Indian market...
-
Page 2: Table Of Contents
How to install USB drivers (Windows) ............7 Configuration (Windows) ................... 7 Quick SMS configuration..................8 Mounting recommendations ............. 10 LED indications ..................11 Characteristics ..................11 Basic characteristics .................... 11 Electrical characteristics ..................12 Safety information ................14 Certification and Approvals ............... 15 FMB208 | Wiki... -
Page 3: Know Your Device

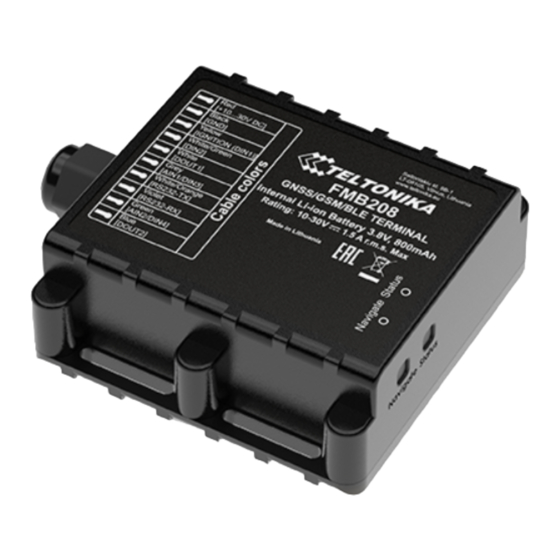

Know your device Figure 1 FMB208 device view FMB208 | Wiki... -
Page 4: Pinout
Pinout Table 1 FMB208 pinout PIN NAME DESCRIPTION VCC (10-30) V Power supply DC (+). GND (-) Ground DC (-). DIN 1 Digital input, channel 1. DIN 2 Digital input, channel 2. Digital output, channel 1. Open collector output. Max. -
Page 5: Wiring Scheme
Wiring scheme Figure 3 FMB208 Wiring scheme Automotive relay FMB208 | Wiki... -
Page 6: Set Up Your Device
5. After configuration, see “PC Connection (Windows)”, attach device cover back and screw in all screws. Figure 6 Micro-SIM card insert Figure 7 Battery connection 6. Device is ready to be mounted. Figure 9 Device is ready Figure 8 Attaching cover back FMB208 | Wiki... -
Page 7: Pc Connection (Windows)
Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup. 1. Power-up FMB208 with DC voltage (10 – 30 V) power supply Configuration (Windows) using power cable. LED’s should start blinking, see “... -
Page 8: Quick Sms Configuration
GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured. More details about FMB208 configuration using Configurator can be found in our Wiki. Quick SMS configuration Figure 12 Configurator Status window FMB208 | Wiki... - Page 9 2005 – Port • 2006 – Data sending protocol (0 • After successful SMS configuration, FMB208 device will synchronize – TCP, 1 – UDP) time and update records to configured server. Time intervals and default I/O elements can be changed by using...
-
Page 10: Mounting Recommendations
▬ It is recommended to connect to the main power cable in the potentials on the line GND will be unpredictable, which can fuse box. lead to unstable FMB208 operation and even its failure. ▬ 3 A, 125 V external fuse shall be used. • Connecting ignition wire... -
Page 11: Led Indications
Quad-band 850 / 900 / 1800 / 1900 MHz boot mode GPRS Multi-Slot Class 12 (up to 240 kbps), Data transfer GPRS Mobile Station Class B Data support SMS (text/data) POWER Characteristics Input voltage range 10-30 V DC with overvoltage protection FMB208 | Wiki... -
Page 12: Electrical Characteristics
PHYSICAL SPECIFICATION Dimensions 72,5 x 73 x 27,3 mm (L x W x H) Electrical characteristics Weight 205 g OPERATING ENVIRONMENT Table 6 Electrical characteristics Operating temperature (without -40 °C to +85 °C battery) CHARACTERISTIC DESCRIPTION VALUE FMB208 | Wiki... - Page 13 = 0) DIGITAL INPUT Input resistance (DIN1) 59.9 kΩ Input resistance (DIN2, DIN3) 67.5 kΩ Input voltage (Recommended Operating Conditions) Input Voltage threshold (DIN1) Input Voltage threshold (DIN2, DIN3) ANALOG INPUT Input voltage (Recommended Operating Conditions), Range 1 FMB208 | Wiki...
-
Page 14: Safety Information
EN 60950-1 standard. Battery should not be disposed of with general household The device FMB208 is not designed as a navigational device for boats. waste. Bring damaged or worn-out batteries to your local recycling center or dispose them to battery recycle bin Do not disassemble the device. -
Page 15: Certification And Approvals
Certification and Approvals FMB208 REACH • FMB208 Declaration of IMEI assignment • This sign on the package means that it is necessary to read the User‘s Manual before your start using the device. Full User‘s Manual version can be found in our Wiki. -
Page 16: Warranty
More information can be found at teltonika.lt/warranty-repair • Repaired • Replaced with a new product • Replaced with an equivalent repaired product fulfilling the same functionality • TELTONIKA can also repair products that are out of warranty at an agreed cost. FMB208 | Wiki...
