NOTE
Once the Exhaust Hose assembly and Adjustable Window Slider are prepared,
choose from one of the following two installation methods.
Foam seal B
(Adhesive type-shorter)
Foam
seal A
(Adhesive
type)
Window
Window
slider B
slider A
(if required)
Foam seal C
(Non-adhesive type)
Security Bracket
2 Screws

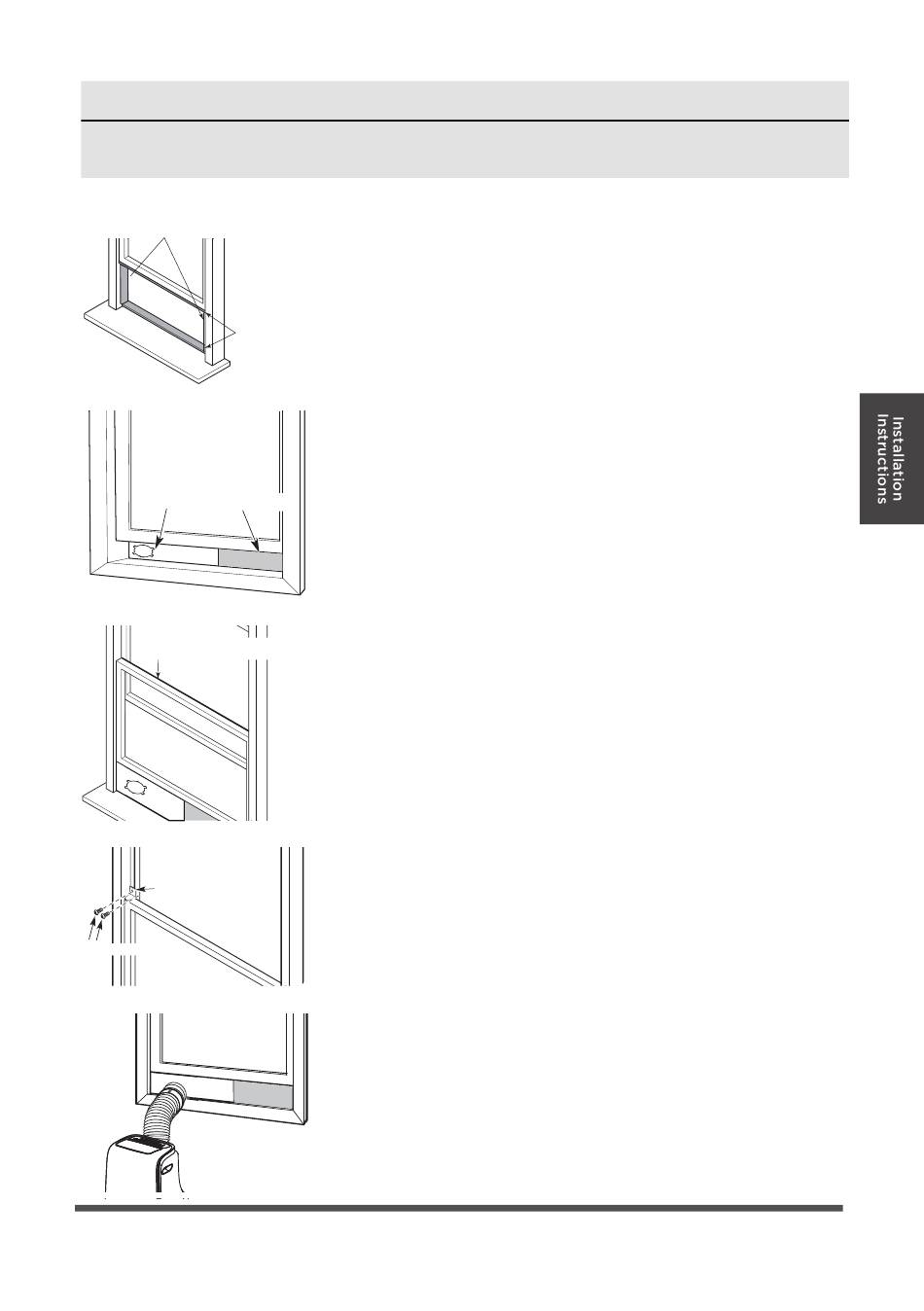

Type 1: Hung window installation
1. Cut the adhesive foam seal A and B strips to the
proper lengths, and attach them to the window sash
and frame as shown.
2. Insert the window slider assembly into the window
opening.
3. Cut the non-adhesive foam seal C strip to match the
width of the window. Insert the seal between the glass
and the window frame to prevent air and insects from
getting into the room.
4. If desired, install the security bracket with 2 screws as
shown.
5. Insert the window slider adaptor into the hole of the
window slider.
