Window Installation Kit
Exhaust hose
Unit Window slider
adaptor
Hook
Hole Seat
Adaptor Lower
groove
Before assembly
Window Sliders
After assembly
1+2：
Bolt
1+2+3：
Bolt
1+2+3+4：
1+4：
Page 14
Exhaust hose
assembly
adaptor
Make sure the adaptor
is inserted into the
lower groove of the
air outlet.
Bolt
Bolt
Bolt Bolt
Bolt

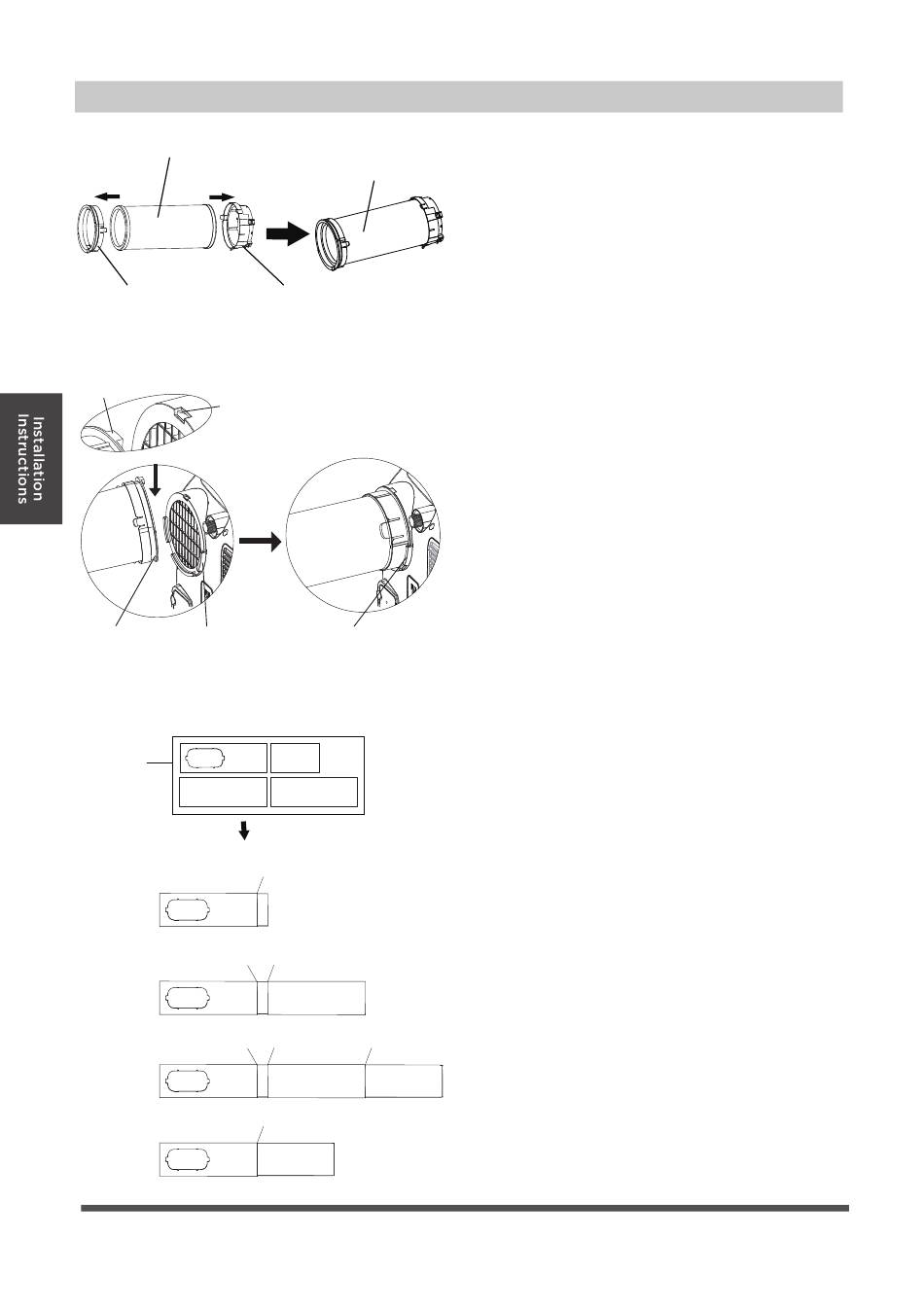

Step One: Preparing the exhaust hose
assembly
Press the exhaust hose into the window
slider adaptor and unit adaptor, clamp
automatically by elastic buckles of the
adaptors.
Step Two: Install the exhaust hose
assembly to the unit
Insert unit adaptor of the exhaust hose
assembly into the lower groove of the air
outlet of the unit with the adaptor hook
aligned with the hole seat of the air
outlet and slide the exhaust hose
assembly down along the direction
indicated by the arrow.
Step Three: Preparing the Adjustable
Window Slider
1. Depending on the size of your
window, you may need to adjust the
size of the window slider.
2. If the length of the window requires
two or three window sliders, use the
bolt(s) to fasten the window sliders
once they are adjusted to the proper
length.
