Graco Check-Mate 1000 Instructions-Parts List Manual page 7

NOTE: Reference numbers and letters in parentheses
in the text refer to the callouts in the figures and the
parts drawings.
Accessories are available from Graco. If you supply
your own accessories, be sure they are adequately
sized and pressure-rated to meet the system's require-
ments.
The Typical Installation shown in Fig. 3 is only a guide
for selecting and installing system components and
accessories. Contact your Graco distributor for assis-
tance in designing a system to suit your particular
needs.
Assembling Model 237520
If you have Model 237520 Pump, assemble the dis-
placement pump (106) to the Premier air motor (101)
as explained on page 14. Install the designation plate
kit (108) as explained in the instructions supplied with
the kit.
D B
A

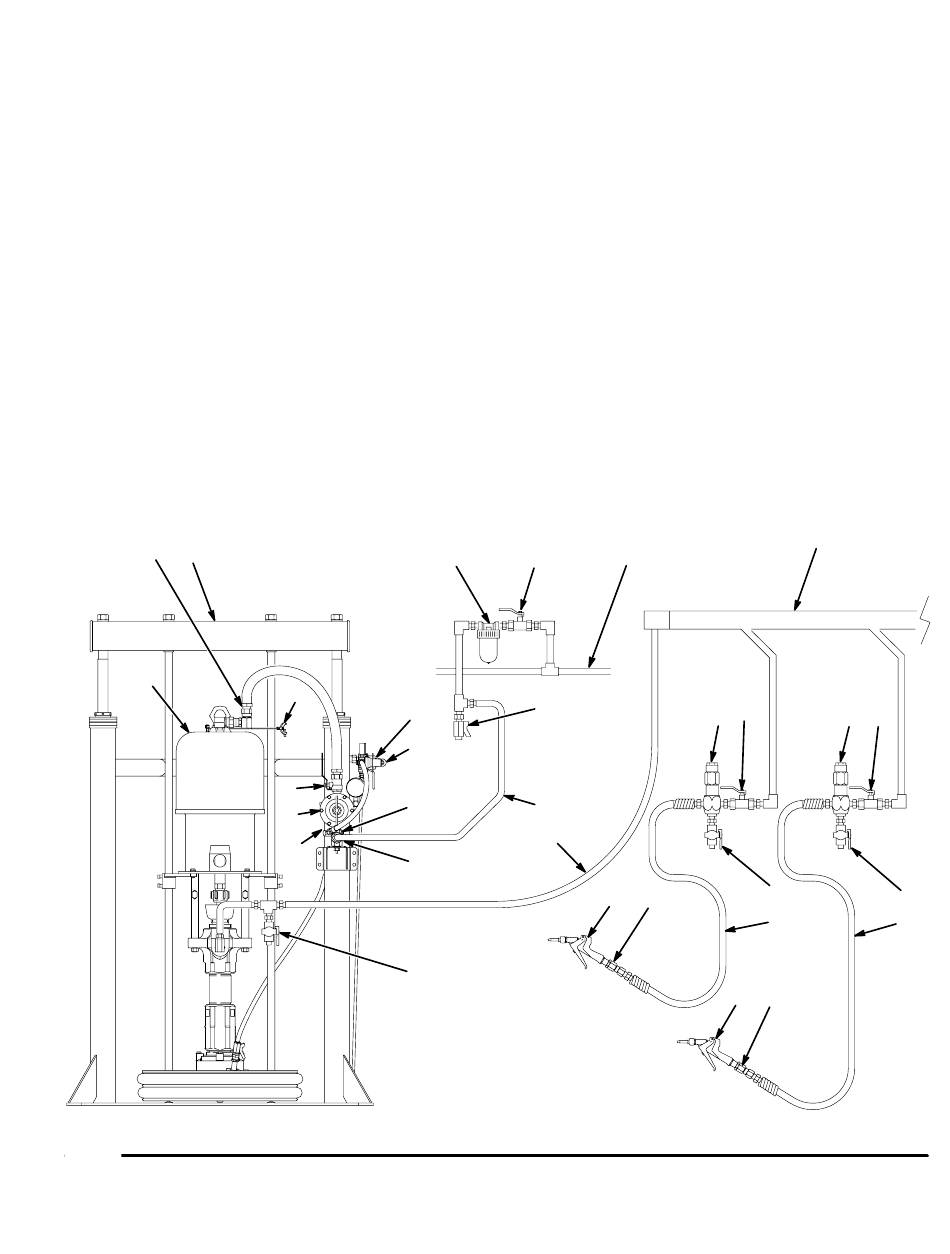

Fig. 3
Installation
J
Y
T
U
E
C
F
G
V
M
KEY
A Pump
B 200 Liter (55 Gallon) Air-Powered Ram
C Main Air Bleed Valve (required, for pump and ram)
D Air Line Lubricator (position only)
E Pump Air Bleed Valve (required, for pump)
F Pump Air Regulator
G Air Manifold
H Electrically Conductive Air Supply Hose
J Air Line Filter
K Air Shutoff Valve (for accessories)
L Fluid Regulator
M Fluid Drain Valve (required)
N Electrically Conductive Fluid Supply Hose
P Fluid Shutoff Valve
R Gun/Valve Swivel
S Airless Spray Gun or Dispensing Valve
T Ram Air Regulator
U Ram Director Valve
V Pump Runaway Valve (position only)
W Air LIne Drain Valve
Y Ground Wire (required, see page 6 for
installation instructions)
MAIN AIR LINE
K
W
H
N
S R
FLUID HEADER PIPE
(3 in. Diameter)
L P L P
M
N
S R
308356
M
N
05097
7
