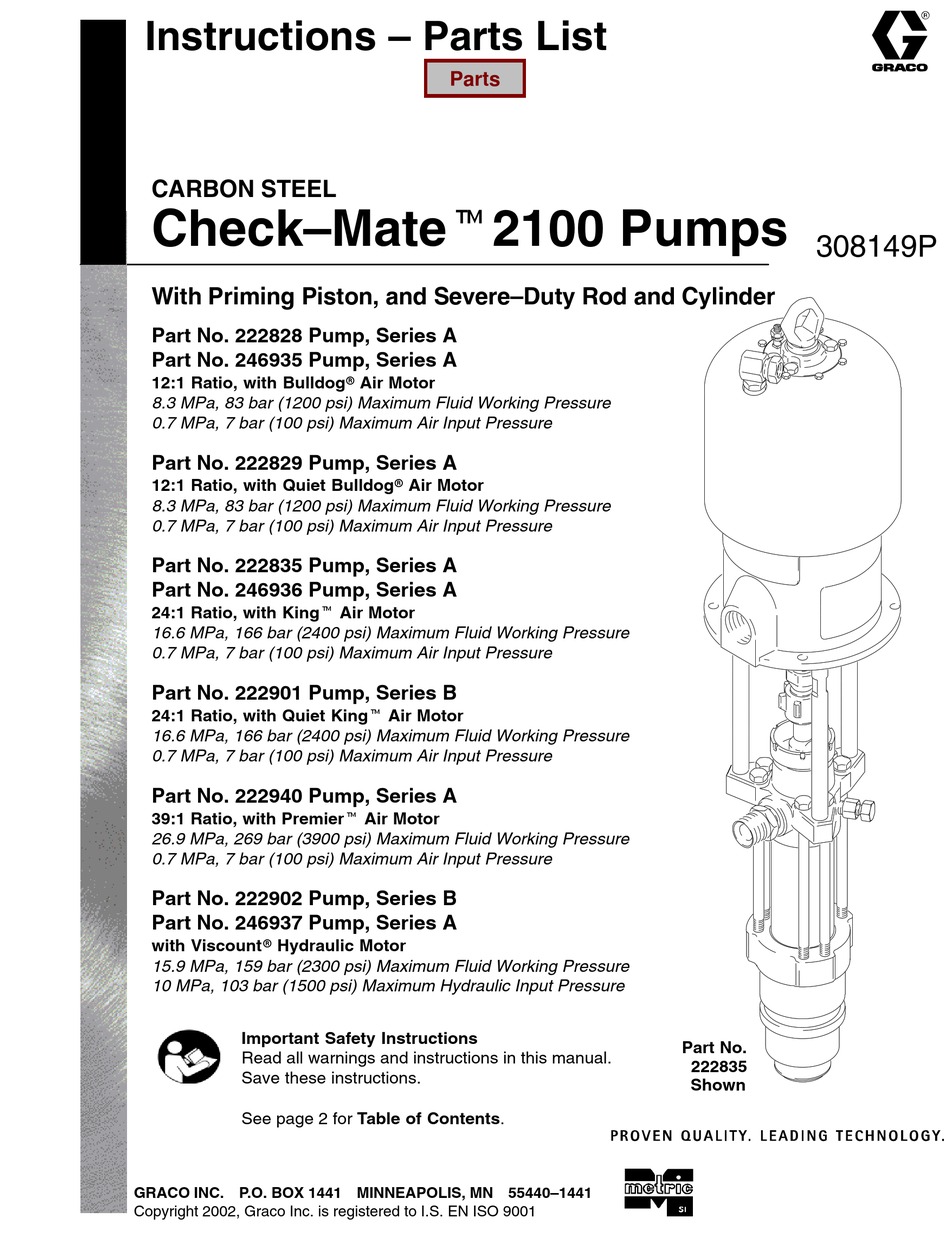

Instructions – Parts List
CARBON STEEL
Check–Matet2100 Pumps
With Priming Piston, and Severe–Duty Rod and Cylinder
Part No. 222828 Pump, Series A
Part No. 246935 Pump, Series A
12:1 Ratio, with Bulldogr Air Motor
8.3 MPa, 83 bar (1200 psi) Maximum Fluid Working Pressure
0.7 MPa, 7 bar (100 psi) Maximum Air Input Pressure
Part No. 222829 Pump, Series A
12:1 Ratio, with Quiet Bulldogr Air Motor
8.3 MPa, 83 bar (1200 psi) Maximum Fluid Working Pressure
0.7 MPa, 7 bar (100 psi) Maximum Air Input Pressure
Part No. 222835 Pump, Series A
Part No. 246936 Pump, Series A
24:1 Ratio, with Kingt Air Motor
16.6 MPa, 166 bar (2400 psi) Maximum Fluid Working Pressure
0.7 MPa, 7 bar (100 psi) Maximum Air Input Pressure
Part No. 222901 Pump, Series B
24:1 Ratio, with Quiet Kingt Air Motor
16.6 MPa, 166 bar (2400 psi) Maximum Fluid Working Pressure
0.7 MPa, 7 bar (100 psi) Maximum Air Input Pressure
Part No. 222940 Pump, Series A
39:1 Ratio, with Premiert Air Motor
26.9 MPa, 269 bar (3900 psi) Maximum Fluid Working Pressure
0.7 MPa, 7 bar (100 psi) Maximum Air Input Pressure
Part No. 222902 Pump, Series B
Part No. 246937 Pump, Series A
with Viscountr Hydraulic Motor
15.9 MPa, 159 bar (2300 psi) Maximum Fluid Working Pressure
10 MPa, 103 bar (1500 psi) Maximum Hydraulic Input Pressure
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
See page 2 for Table of Contents.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
Copyright 2002, Graco Inc. is registered to I.S. EN ISO 9001
Parts
308149P
Part No.
222835
Shown
