INSTRUCTIONS-PARTS LIST
This manual contains IMPORTANT
WARNINGS AND INSTRUCTIONS
READ AND RETAIN FOR REFERENCE
PNEUMATIC CART-MOUNTED PUMPS
CHECK-MATE
200 STAINLESS STEEL DISPLACEMENT PUMPS
Model 231-170, 23:1 Ratio Monark
285 bar (4140 psi) MAXIMUM FLUID WORKING PRESSURE
12.5 bar (180 psi) MAXIMUM AIR INPUT PRESSURE
Model 231-171, 23:1 Ratio Monark with Hose and Gun
276 bar (4000 psi) MAXIMUM FLUID WORKING PRESSURE
1 1.9 bar (173 psi) MAXIMUM AIR INPUT PRESSURE
Model 231-172, 46:1 Ratio President
320 bar (4600 psi) MAXIMUM FLUID WORKING PRESSURE
7 bar (100 psi) MAXIMUM AIR INPUT PRESSURE
Model 231-173, 46:1 Ratio President with Hose and Gun
320 bar (4600 psi) MAXIMUM FLUID WORKING PRESSURE
7 bar (100 psi) MAXIMUM AIR INPUT PRESSURE
TABLE OF CONTENTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
2, 3
5-7
8, 9
. . . . . . . . . . . . . . . . . .
10-13
14
15
Back Cover
Back Cover
COPYRIGHT 1992, GRACO INC.
4
308-199
Rev A

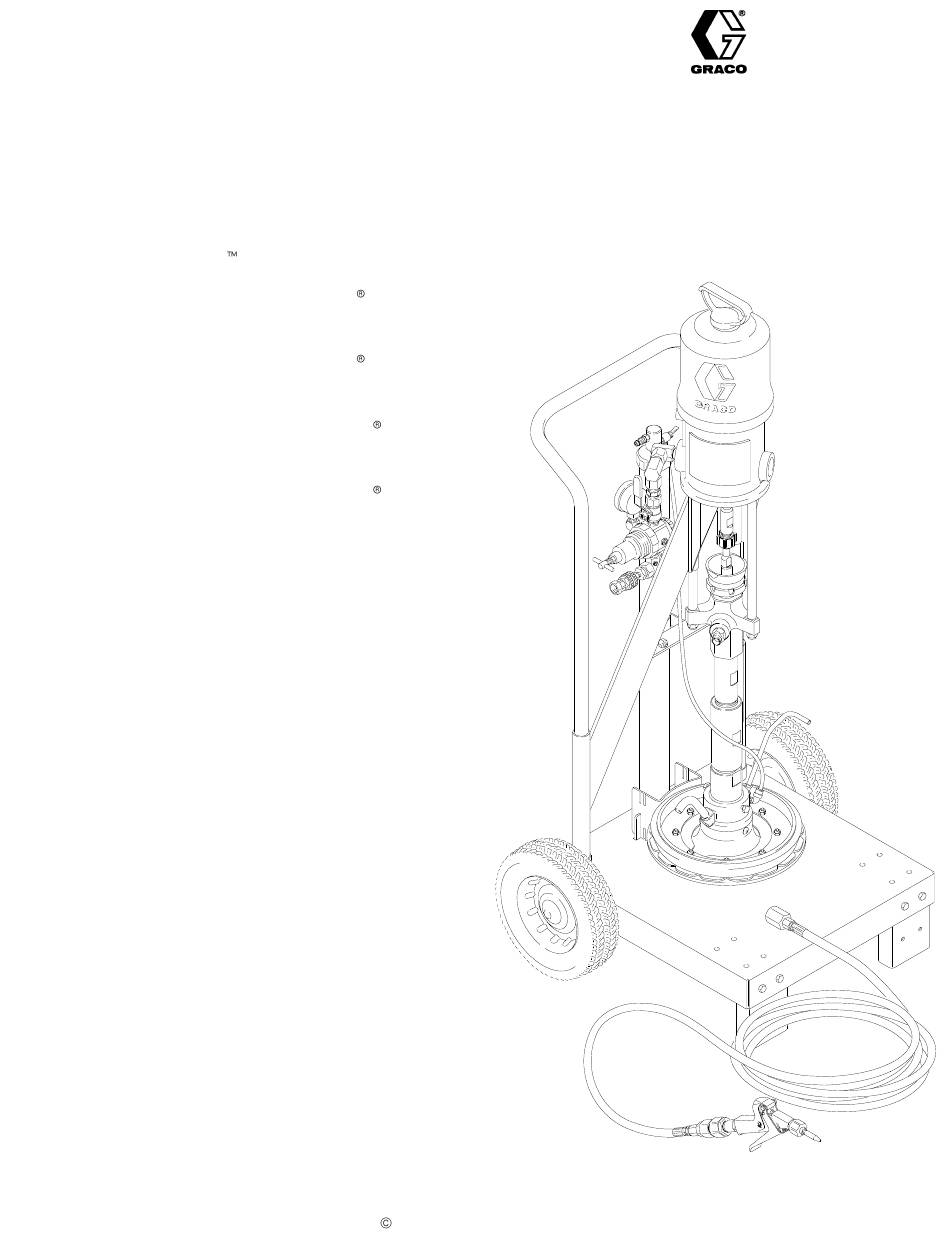

MODEL 231-173 SHOWN
01090
Advertisement
Table of Contents
Related Manuals for Graco CHECK-MATE 200
Summary of Contents for Graco CHECK-MATE 200
-
Page 1: Table Of Contents
......Back Cover MODEL 231-173 SHOWN 01090 GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441 COPYRIGHT 1992, GRACO INC. -
Page 2: Warnings
SAFETY WARNINGS HIGH PRESSURE FLUID CAN CAUSE SERIOUS INJURY. FOR PROFESSIONAL USE ONLY. OBSERVE ALL WARNINGS. Read And Understand All Instruction Manuals Before Operating Equipment. MOVING PARTS HAZARD KEEP HANDS AND FINGERS AWAY FROM THE PRIMING PISTON is in operation, and can pinch fingers or hands caught between them and DURING OPERATION AND WHENEVER THE PUMP IS CHARGED the cart frame. - Page 3 Do not use fluids which are not compatible with the in- ner tube and cover of the hose. DO NOT expose Graco hoses to tem- ALL FLUID HOSES MUST HAVE A BRAIDED STAINLESS STEEL peratures above 82 C (180 F) or below –40 C (–40 F).
-
Page 4: Typical Installation
TYPICAL INSTALLATION Pump (supplied) Pneumatic Elevator Cart (supplied) Wiper Plate (supplied) Air Hose Air Manifold (supplied) Air Line Quick Disconnect Coupler (supplied) Pump Runaway Valve Air Line Lubricator MAIN AIR LINE Bleed-Type Master Air Valve (supplied, for pump) Air Regulator (supplied) Air Line Filter Bleed-Type Master Air Valve (for accessories) Fluid Drain Valve (required) -
Page 5: Installation
The bleed-type master air valve (J) is required in See page 14 for accessories available from your system to relieve air trapped between it and the Graco. If you supply your own accessories, be air motor when the valve is closed (see the WARN- sure... - Page 6 ASSEMBLING THE UNIT d. Screw the bushing (16) into the swivel inlet of the air manifold (5), and screw the male quick dis- Mounting the Pump on the Cart connect fitting (15) into the bushing. Screw the Install the pump on the cart as explained in the separate female quick disconnect coupler (26) onto the air cart manual 308-092.
- Page 7 MODEL 231-173 SHOWN (46:1 Ratio President Pump, With Check-Mate 200 Stainless Steel Displacement Pump, Hose, and Gun) CART ACCESSORY KIT 224-376 INCLUDES ITEMS 15-26 (MONARK PUMPS) OR (REMOVE (PRESIDENT PUMPS) PLUG) 22 (REF) INSTALL PLUG (V) HERE 01092 Fig 2...
-
Page 8: Operation
OPERATION 2. Raise the elevator to its maximum height, so the WARNING hanger (HH) on the cart handle is below the hook (JJ) Pressure Relief Procedure on the elevator frame. To reduce the risk of serious bodily injury, including fluid injection, splashing in the eyes or on the skin, or 3. - Page 9 the hanger (HH) on the cart handle is below the hook wiper plate vent (LL). This will make it possible to (JJ) on the elevator frame, then just pull the pail off pull the pail off the plate. Check for a blockage in the plate.
-
Page 10: Parts Drawings And Lists
PARTS DRAWING Model 231-170, Series A, 23:1 Ratio Monark Pump with Check-Mate 200 Stainless Steel Displacement Pump Includes items 1-27 Model 231-171, Series A, 23:1 Ratio Monark Pump with Check-Mate 200 Stainless Steel Displacement Pump Includes items 1-30 REF. NO. 14... - Page 11 2. Check the parts list to identify the correct part number; do not use the ref. no. when ordering. 3. Order all parts from your nearest Graco distributor. 6 digit Part Number Part Description...
- Page 12 PARTS DRAWING Model 231-172, Series A, 46:1 Ratio President Pump with Check-Mate 200 Stainless Steel Displacement Pump Includes items 1-27 Model 231-173, Series A, 46:1 Ratio President Pump with Check-Mate 200 Stainless Steel Displacement Pump Includes items 1-30 REF. NO. 4 AIR REGULATION KIT REF.
- Page 13 2. Check the parts list to identify the correct part number; do not use the ref. no. when ordering. 3. Order all parts from your nearest Graco distributor. 6 digit Part Number Part Description...
-
Page 14: Accessories
ACCESSORIES USE GENUINE GRACO PARTS AND ACCESSORIES Must be purchased separately . GROUNDING CLAMP 103-538 FLUID DRAIN VALVE (Carbon Steel) 350 bar (5000 psi) MAXIMUM WORKING PRESSURE GROUND WIRE 208-950 7.6 m (25 ft) long, Open to relieve fluid pressure in hose and gun/valve. -
Page 15: Dimensional Drawing
DIMENSIONAL DRAWING Model 231–172 Shown Pump Weight Model (Raised) (Lowered) (Wheelbase) (Less Hose & Gun) 231–170, 1791 mm 1352 mm 575.5 mm 670 mm 61.2 kg 231–171 (70.51 in.) (53.23 in.) (22.66 in.) (26.34 in.) (135 lb) 231–172, 1844 mm 1405 mm 575.5 mm 670 mm... -
Page 16: Technical Data
Graco distributor to the original purchaser for use. As purchaser’s sole remedy for breach of this warranty, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment proven defective.
