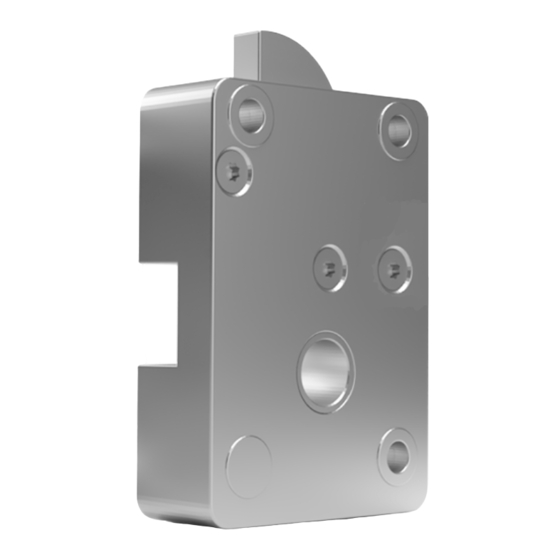

Primor 1600
Installer manual
Installation and commissioning instructions
Note:
On the cover sheet you can find warning information, and an explanation of the symbols and
terms used, together with the exclusion of liability.
Mount the keypad before installing the electronic lock. All the keypads of the Primor series
can be used. For information on how to install the keypads, please refer to "Part 2a- Primor
keypad installer manual".
Contents
General ................................................................................................................................. 2
Preparation for installation ..................................................................................................... 3
Installation dimensions for lock 1600 ................................................................................. 3
Preparation of the boltwork / door ...................................................................................... 3
Installation ............................................................................................................................. 4
Wiring / installation ................................................................................................................ 4
Function test .......................................................................................................................... 5
Input of the opening code .................................................................................................. 5
Keypad test ....................................................................................................................... 5
en_02 P1600-Part 2b-Installer manual V1.00
1 / 5
Advertisement
Table of Contents
Related Manuals for Wittkopp Primor 1600
Summary of Contents for Wittkopp Primor 1600
-
Page 1: Table Of Contents
Primor 1600 Installer manual Installation and commissioning instructions Note: On the cover sheet you can find warning information, and an explanation of the symbols and terms used, together with the exclusion of liability. Mount the keypad before installing the electronic lock. All the keypads of the Primor series can be used. -
Page 2: General
Primor 1600 Installer manual Installation and commissioning instructions General P1600 series locks have standard It is essential that the lock is protected installation dimensions and can be installed against attacks from outside. in all 4 installation positions (right, left, top, recommend that you protect against access bottom). -
Page 3: Preparation For Installation
Primor 1600 Installer manual Installation and commissioning instructions Preparation for installation Installation dimensions for lock 1600 Preparation of the boltwork / door To install the lock, there must be three screws (min. strength class 8.8). The screw threaded holes for fastening on the length should be measured so that a boltwork or inside the safe door. -
Page 4: Installation
Primor 1600 Installer manual Installation and commissioning instructions Installation The retaining screws must be tightened in There must be no tension or pressure on such a way that a permanent and firm hold the lock bolt after installation. is ensured. -
Page 5: Function Test
Primor 1600 Installer manual Installation and commissioning instructions Function test Carry out a function test after completing all The relationship between easy opening and the mounting and installation work. With the reliable closing can be set via the operating door open, you should open and close the lever of the boltwork.
