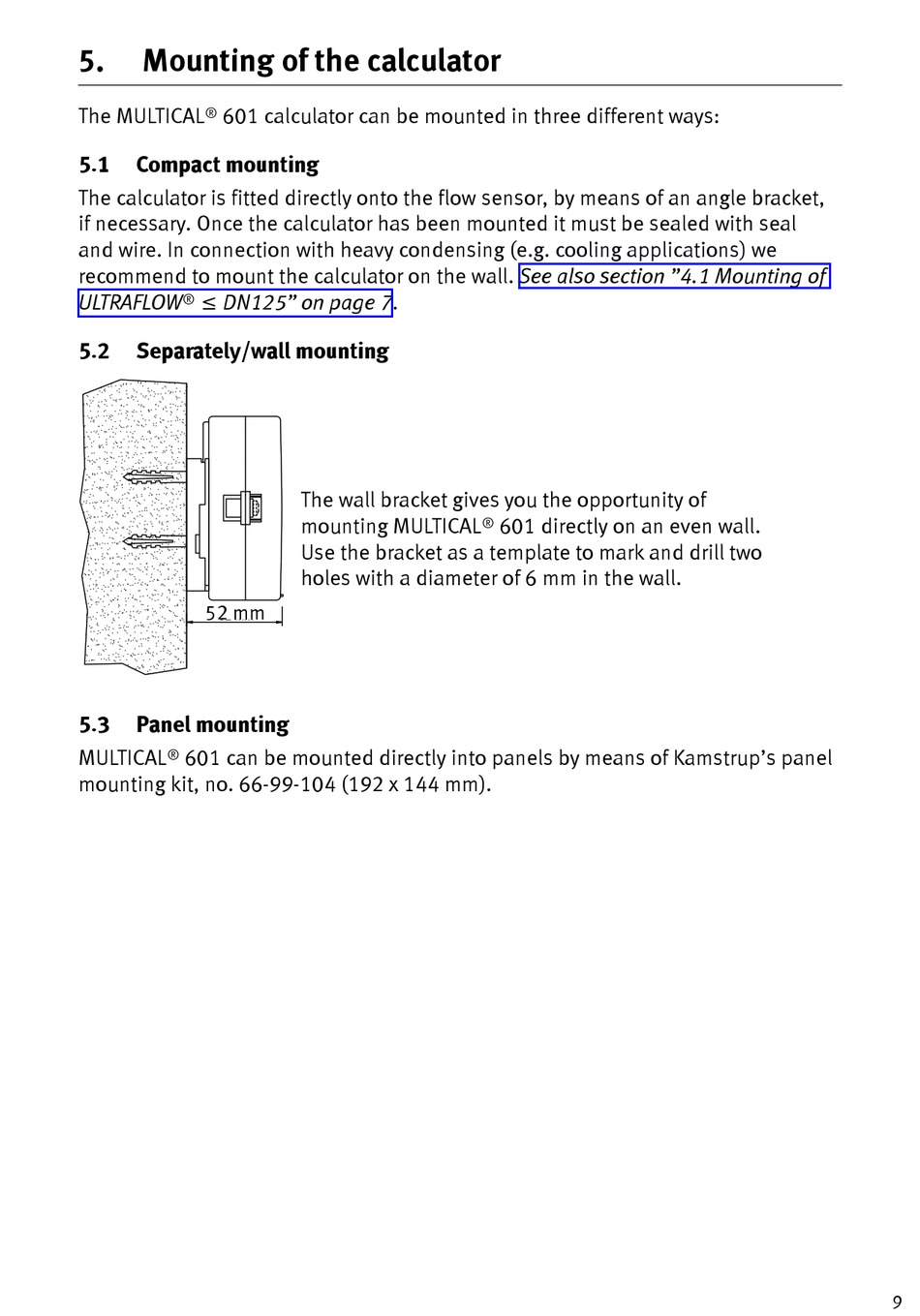

5.

Mounting of the calculator

The MULTICAL® 601 calculator can be mounted in three different ways:
5.1

Compact mounting

The calculator is fitted directly onto the flow sensor, by means of an angle bracket,
if necessary. Once the calculator has been mounted it must be sealed with seal
and wire. In connection with heavy condensing (e.g. cooling applications) we
recommend to mount the calculator on the wall. See also section "4.1 Mounting of
ULTRAFLOW® £ DN125" on page 7.
5.2

separately/wall mounting

52 mm
5.3

Panel mounting

MULTICAL® 601 can be mounted directly into panels by means of Kamstrup's panel
mounting kit, no. 66-99-104 (192 x 144 mm).
The wall bracket gives you the opportunity of
mounting MULTICAL® 601 directly on an even wall.
Use the bracket as a template to mark and drill two
holes with a diameter of 6 mm in the wall.
9
