Steris Easymax Instructions

APPLICATION

The Easymax Surgical table is a mobile
electrohydraulically and mechanically operated
surgical table designed to support all general
surgical procedures including cardiac and
vascular, endoscopic, gynecology, urology,
nephrectomy, neurology, ophtamologic, and
orthopedics with the addition of STERIS table
accessories.

DESCRIPTION

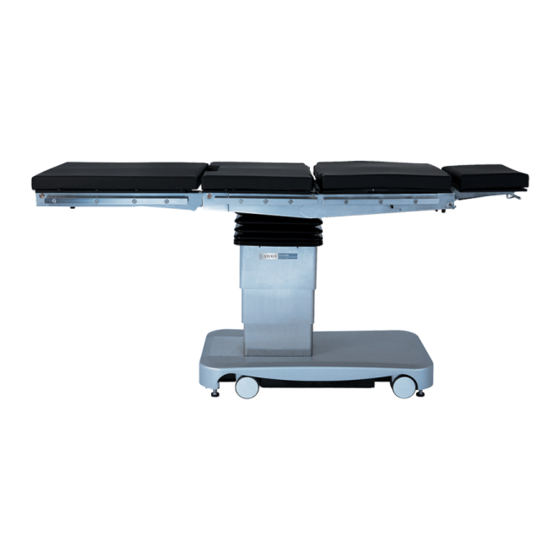

The Easymax Surgical Table is a mobile,
electrohydraulically and mechanically operated
surgical table specifically designed to provide
complete patient positioning flexibility required
for modern surgical care
Easyimax Surgical Table features hydraulically
powered lateral tilt, trendelenburg/reverse
trendelenburg, and adjustable height functions,
and mechanically back, kidney, head and legs
sections. This table is designed to safely
function with a 270kg (600lbs) patient and is
constructed of aluminium alloy, stainless steel,
and other high quality materials. The Easymax
is equipped with 1/3 – 2/3 reversible kidney
elevator providing a unique patient positioning
possibilities for thoracic or urologic surgical
procedures.
The Easymax is powered by either
battery or facility electric through use of an
internal power supply/battery charger.
The table accepts positioning commands from
three sources :
1- A hand control
2- An optional physician-controlled
foot control (which includes
Trendelenburg tilts, Lateral tilts and
height functions).
3- An override control panel.
Note : the head section is manually
adjustable.
Overall size* (W x L x H) :
560 x 2030 x 600 to 900mm (22 x 80 x 24" to
35")
* with Head02 headrest and LEG11B.

VOLTAGE

100-120 Vac, Single phase, 50/60Hz
220-230 Vac, Single phase, 50/60Hz

POWER SOURCE

Battery/Electric-powered table.

PAD CONFIGURATION

Latex-Free Pads (standard)..
•
Memoline
•
Welded Seam
facilities. The
Weight :
185kg (408lbs)
internal
The standard table configuration includes :
•
Power adjustable height, Trendelenburg, and
lateral tilt functions.
•
Mechanically operated back section.
•
Mechanically operated kidney elevator.
•
Manual removable head section.
•
Manual removable leg section.
•
Pendant hand control.
•
Mobile base with hydraulically operated floor
locks.
•
270kg (600lbs) patient weight capacity.
•
Up to three weeks operation (100 – 150
procedures) on internal battery power.

ACCESSORY PACKAGES

Standard accessory package

OPTIONS

Foot Control
Easymax SURGICAL TABLE
(Typical* only – some details may vary.)

STANDARDS

The
compliance with the following standards :
•
•
•
Item____________________________
Location(s)_______________________
________________________________
Easymax Surgical tables are
IEC 601-1 (EN60601-1) general safety
regulations applicable to medical
equipments.
IEC 601-2-46 (EN60601-2-46) safety
regulations applicable to surgical tables.
IEC 601-1-2 (EN60601-1-2) relating to
electromagnetic interferences.
in
