ADIC Scalar 100 Quick Start Manual

If your library configuration contains a SNC (Storage
Networking Controller), the installation and set-up
must be performed by ADIC-qualified personnel.
If you have drives to install, install them now
1
by following steps 2 and 3. Otherwise, skip
to step 4.

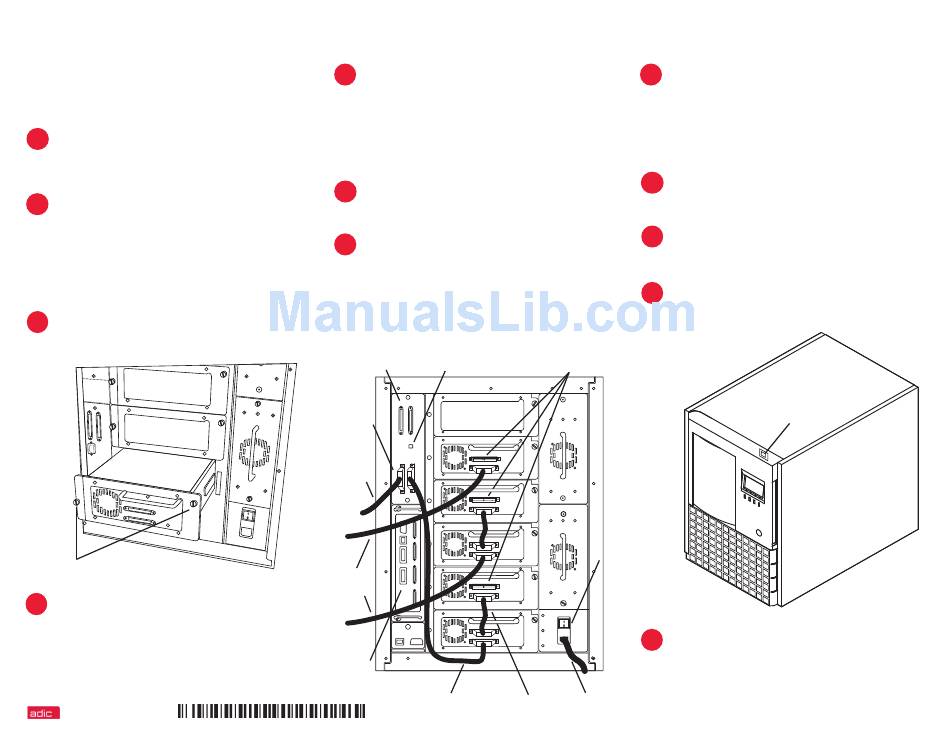

Beginning with the bottom slot (drive module
2
1), find the lowest available drive slot(s).
Loosen the two thumbscrews on the filler
plate(s) and remove the filler plate(s).
For AIT libraries, install drives into slots two
through five, beginning with slot two.
Slide the drive(s) into position and tighten
3
the two captive thumbscrews.
Filler Plate
Drive Module
Captive thumbscrews
Depending on your host SCSI bus type, set
4
the SCSI interface switch to LVD or HVD.
6-00671-01 Rev A
® ®
ADIC Scalar 100 Quick Start Guide
On the bottom-most drive, connect a jumper
5
cable to the top SCSI connector and then to
the bottom SCSI connector on the drive
above it. Repeat this for all the drives.
If you have more than two drives, split the
drives between SCSI buses.
Terminate the SCSI bus(es) with an
6
appropriate terminator (LVD or HVD).
Install the cables between the bottom drive
7
and the Library Controller and between the
Library Controller and the host.
If you have more than one SCSI bus,
connect a cable between the bottom drive on
the SCSI bus and the host.
HVD SCSI
Connections
LVD SCSI
Connections
Library
Controller
to Host
Library
to Host
Optional
SNC
SCSI Interface
Switch
Terminator
Jumper Cable Power Cord
Drive to
Library Controller
Remove the key from the back panel.
8
Unlock and open the front door. Remove the
interior packing and securing material.
Be sure to remove the rubber band that
secures the picker.
Install tape cartridges into magazines. Close
9
and lock the front door.
Connect the power cord to the power outlet
10
on the rear of the library.
Turn on the rear power switch and then turn
11
on the front power switch.
Front Power Switch
Rear Power
Switch
Power up your host system and verify
12
communication with all devices on the bus.
Your library is now ready.
