Toto LE MUSE TX472SQZ Quick Start Manual

SPESIFIKASI
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and fittings.
2. Flow Regulator should not be remove because it could
damage the system.
3. As the product model is constantly updated, the actual product
may not look the same as it shown in the diagram, but the
basic installation principles are the same.
S060070N
SPESIFIKASI
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and fittings.
2. Flow Regulator should not be remove because it could
damage the system.
As the product model is constantly updated, the actual product
3.
may not look the same as it shown in the diagram, but the
basic installation principles are the same.
S060070N
INSTALLATION
1.
Use Seal Tape
(Not Include)
2.
G½
35
67.5
INSTALLATION
1.
Use Seal Tape
(Not Include)
2.
G½
35
67.5

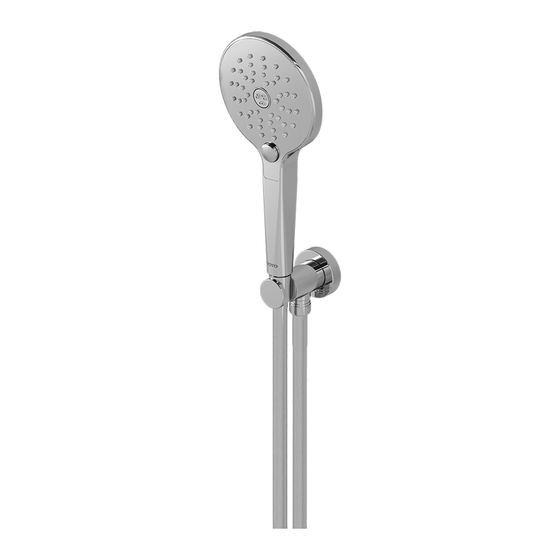

"LE MUSE" HAND SHOWER
W/ WALL OUTLET
Water Supply
Cover
Water Outlet
Shower Spray
Packing
Packing
Flexible
Hose
"LE MUSE" HAND SHOWER
W/ WALL OUTLET
Water Supply
Cover
Water Outlet
Shower Spray
Packing
Packing
Flexible
Hose
TX472SQZ
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Unsatisfactory sp ra y 1
Wat er lea ks aro und t he hose 2, 3
1. VALVE
Flow Regulator Inside
(Don t remove)
2. NUT
3. NUT
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and
are not recommended for cleaning
TX472SQZ
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Unsatisfactory sp ra y 1
Wat er lea ks aro und t he hose
2, 3
1. VALVE
Flow Regulator Inside
(Don t remove)
2. NUT
3. NUT
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and
are not recommended for cleaning
SOLUTION
Clean
Tighten
R4
SOLUTION
Clean
Tighten
R4
