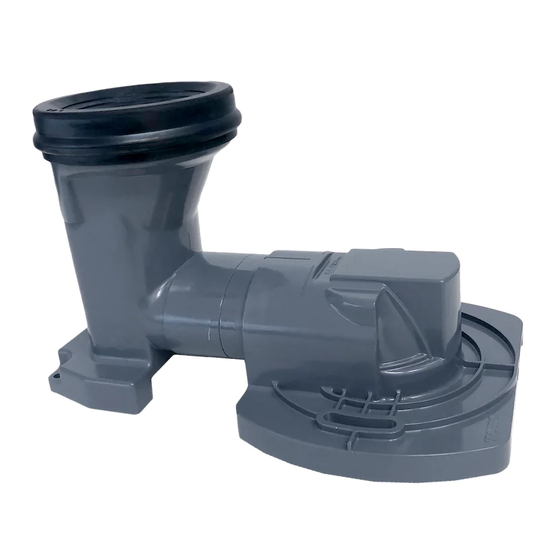

Toto UNIFIT ROUGH-IN Installation Instructions Manual

MATERIALS REQUIRED:

1. Mounting bolts
2. Wax ring/seal

TOOLS NEEDED:

1. Tape measure
2. Screwdriver
3. Putty knife
4. Power drill, ⁄ "drill bit (for
wood floor installation) & ⁄ "
masonry drill bit (for
masonry/tile floor installation)
- for mounting block
5. Pencil

PACKAGE CONTENTS:

1. Rough-In - 1
2. Mounting screw w/washer - 2
3. Anchor - 2
4. Installation template - 1
5. Installation instruction - 1
STEP 2 INSTALLING MOUNTING BOLTS
1. Cover/block the drain opening to prevent items from falling into the drain and prevent smell from
coming up.
2. Clean any debris out of the closet flange.
3. Install the mounting bolts (either provided by the original closet flange or new wax ring) into the slots
of the flange. Insert the bolts into the slot with its head down and threaded shank pointed upward.
PEOPLE-FIRST INNOVATION
1155 Southern Road
Morrow, GA 30260
totousa.com |
P: 888-295-8134
F: 770-282-8701
UNIFIT ROUGH-IN
INSTALLATION INSTRUCTION

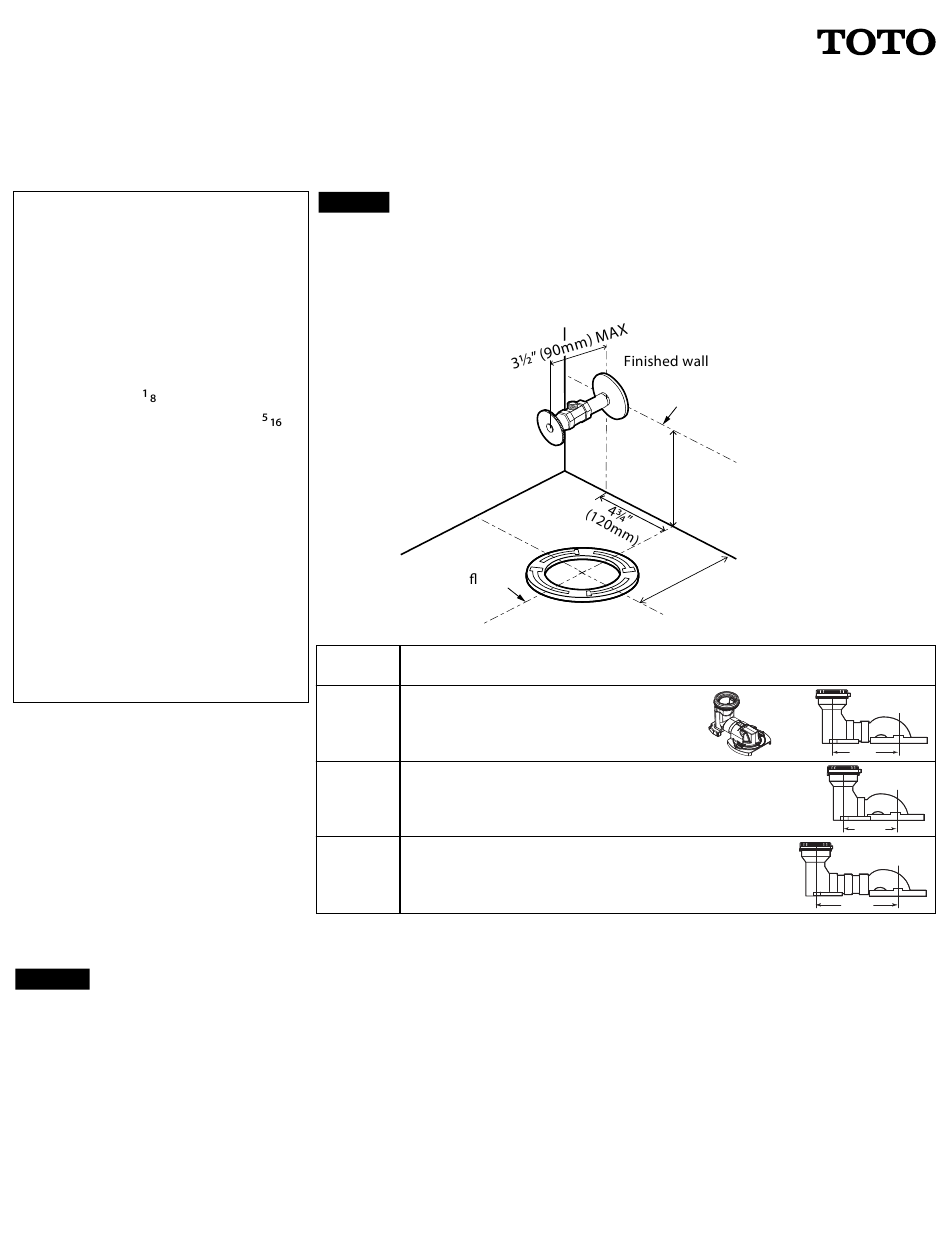

STEP 1 PIPING CHECK AND ROUGH-IN
1. In order for your new TOTO toilet to fit correctly, check the
dimensions in the Table below. Rough-In ("RI"): Distance between
finished wall to the center of the toilet outlet.
2. Remove existing toilet (if necessary)
Centerline of ange
"RI"
12 inch
10 inch
14 inch
Please make sure that you have the correct outlet connection part.
™
Rough-In Part Number
TSU08W.12
(supplied)
TSU08W.10
(optional - must be purchased separately)
TSU08W.14
(optional - must be purchased separately)
PAGE 1 of 2
Centerline of stop valve
4¾"
(120mm)
"RI"
8"
6"
4"
Rev. 10/17
0GU185
