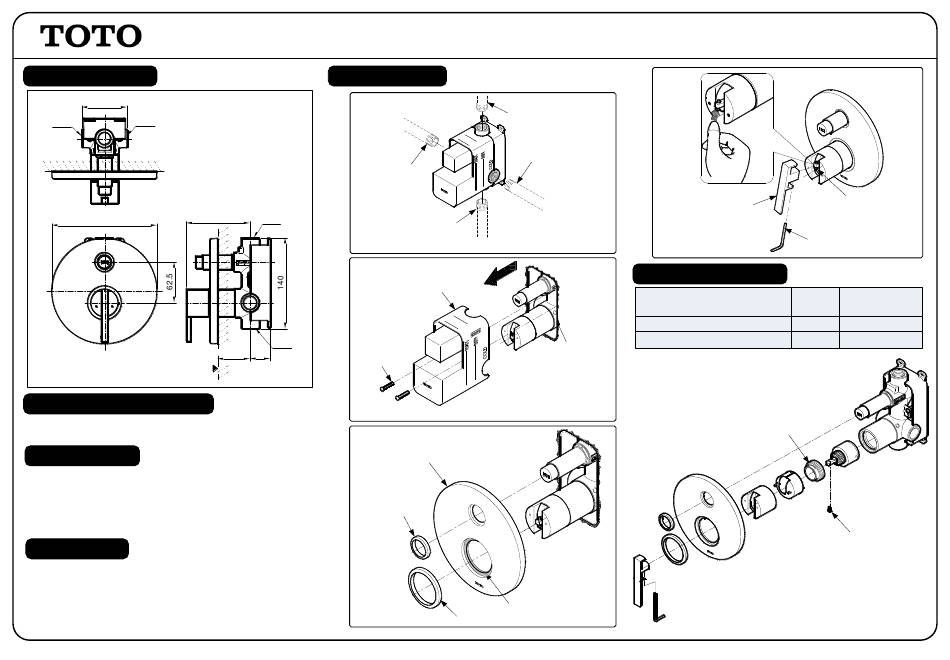

Toto EGO TX442SEN Quick Start Manual

"EGO" SINGLE LEVER BATH & SHOWER MIXER W/ DIVERTER TX442SEN

SPECIFICATIONS

70
G½ G½
Ø162
WALL

OPERATING CONDITIONS

1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).

MAINTENANCE

All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and
are not recommended for cleaning
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and
fittings.
2.
As the product model is constantly updated, the actual
product may not look the same as it shown in the diagram,
but the basic installation principles are the same.
S06163S

INSTALLATION

1.
Hot Water
Supply *
98 G½
To Bath Spout *
* Pipe supplied by owner
2
G½
0
50
31
-20
Bolt
* Remove the cover after the mortar has dry
3
Ring
w/ O-ring
To Shower Head *
Cold Water
Supply *
Cover *
Mortar
Flange
Packing
Ring w/ O-ring
4
Handle
Hex. Key

TROUBLESHOOTING

CHECK
PROBLEM
POINT
Water leaks around the handle 1
Handle is loose
2
1. CONNECTING NUT
Bolt
SOLUTION
Tighten
Tighten
2. BOLT
R6
